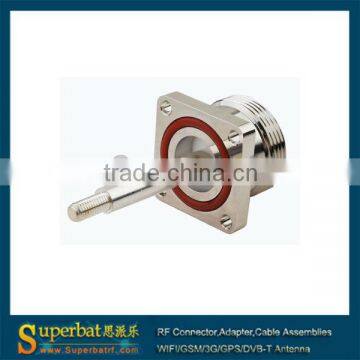

7/16 Din Female panel mount connector Jack with long extended pin

Specifications

7/16 Din Female panel mount connector Jack with long extended pin

Reasonable price&high technology!Don't Hesitate~! Just take it~! :- )

Description;

Technical characteristics
Electrical data:
Impedance: 50ohm
Frequency range:DC to 6GHz
VSWR: ≤1.3
Insertion loss:≤0.35dB,DC-6GHz
Insulation resistance:≥1000mΩ
Test voltage: 4000 V rms
Working voltage:2700 v rms
Contact resistance:
1).Centre contact: 0.4 mΩ
2).Outer conductor:1.5 mΩ

Environmental Data:
Temperature rating: -40 to 85 (degree Celsius)
2002/95/EC (RoHS): Compliant

Mechanical data:
Mating cycles:≥500

MATERIAL & PLATING
shell brass nickelplated
inner conductor brass goldplated or silver-gilt
insulator PTFE
crimping suite copper alloy nicked or goldplated
o-ring sealing 6146 silastic

APPLECABLE STANDARD

DIN47223;
IEC169-4;
CECC22190.

Offer custom:

7/16 DIN Product Series
