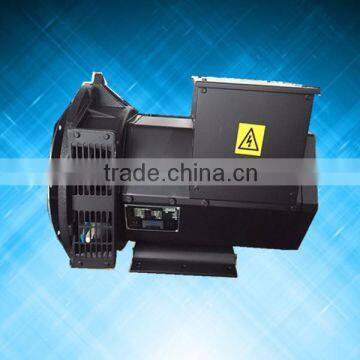

Two Pole alternator 30.0KVA/24.0KW generators Brushless Alternator Stamford type three phase
- Shanghai
- T/T Credit Card
You May Like
-
Two Pole alternator 37.5KVA/30KW generators Brushless Alternator Stamford type three phase
-
12.5KVA/10KW Three Phase Brushless AC Alternator For Silent Diesel Generator Set With AVR
-
2 pole AC brushless synchronous alternator 3000rpm/ 3600rpm
-
2 Poles Single Phase AC Alternator Farrand FLD162
-
OEM 2 poles AC single phase alternator 20kva 25kva
-
2 poles brushless ac alternator 3000rpm
Product Details
Place of Origin | Jiangsu, China | Brand Name | FARRAND, FARRAND | |
Model Number | FLD182H | Output Type | AC Three Phase | |
Speed | 3000RPM/3600RPM | Frequency | 50Hz/60Hz | |
Rated Power | 30KW | Rated Voltage | 220V-600V |
Product Description
Two Pole alternator 30.0KVA/24.0KW generators Brushless Alternator Stamford type three phase
♣Copy stanford alternator Two Pole Alternator 30.0KVA/24.0KW Alternator
♥Model : FLD182K
♥Rated Voltage :190V-480V
♥Speed :3000RPM/3600RPM
♥Output : AC Three Phase
♥Enclosure : IP22
♥Phone interference : THF < 2% ,TIF < 50
♥Windings : 2/3 pitch windings
♣ Low price 30.0KW 190V- 480V AC brushless Alternator
VOLTAGE | 50Hz 1500RPM | 60Hz 1800 RPM | ||||||
STAR-SERIES | 380 | 400 | 415 | 440 | 416 | 440 | 460 | 480 |
STAR-PARALLEL | 190 | 200 | 208 | 220 | 208 | 220 | 230 | 240 |
Δ-SERIES | 220 | 230 | 240 | 254 | 240 | 254 | 266 | 277 |
Rated Capacity(KVA) | 30.0 | 30.0 | 30.0 | 29.0 | 35.4 | 37.5 | 37.5 | 37.5 |
Rated Power(KW) | 24.0 | 24.0 | 24.0 | 23.2 | 28.3 | 30.0 | 30.0 | 30.0 |
Efficiency(% | 81.2 | 81.9 | 82.3 | 83.0 | 80.3 | 80.9 | 81.5 | 82.0 |
Input Power(KW) | 29.5 | 29.3 | 29.2 | 28.0 | 35.3 | 37.1 | 36.8 | 36.6 |
USA Brand Essex High Quality Solid Copper Wire
ROTOR
AVR Control
The range of our products are from 6KW to 1000KW
One year warranty
7 * 24 hours customer service
Professional technical support
Farrand Alternator Technology Company is a professional manufacture of brushless alternator with CE and SGS ISO9001 certification. We are located 200Km north of Shanghai. Our alternator system is compatible with Stamford type alternator. The range of our products are from 6KW to 1000KW.
There are more than 200 staffs collecting dozens of top intra-industry technical experts who make research and manufacturing ability strong. Farrand carry out high standard technical regulation, techniques, strict quality inspection and mature quality guarantee system in order to manufacture world-class high quality alternators.
For the past five years we have export our alternators to many countries such as USA, Europe, Middle East, Australia, Taiwan, Africa, Russia, South East Asia, etc. Of course we have the CE safety certification.
