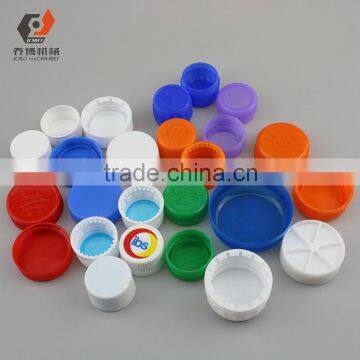

customzied plastic bottle cap

 1.  Detailed Product Description

 Cap compression molding machine. The most efficient plastic cap maker.

1. Stable system, low noise and convenient operation.

2. Adjustable mold temperature and material temperature  which ensure the durability and stability of the equipment.

3. Simple operation, saving electricity, water, raw materials and labor.

4. 3-4 times production efficiency than the injection one.

5. No waste runner.

6. recyclable cooling water and hydraulic oil,  which greatly reduces the system cost.

Cap compression molding machines now are the necessary equipment of famous drink manufactuer .

We can manufacture multicavity injection mold with cold(hot) runner according to your requirement or sample, especially injection cap mold and preform mold.

Detail of cap mould:

1-      Cores & cavities:stainless steel 2316 or S136,or according to customers demand.Hardness: 55-60

2-      Sleeves stainless steel 2316 or S136,or according to customers demand.Hardness: HRC55-60

3-      mould base: imported P20,treated by nitiding.Hardness: 38-40degree

4-      Heat treatment hardness: HRC50-60

5-      Number of cavities: Multi-cavity

6-      Slide block: H13,or according to customers demand.

7-      Oprating life:at least 3 million shot times

8-      Customer service: one year free warranty, life-long technical support service.

 2.  Specifications

• Type:  JF-30BY (16T)

• Capacity:  9200-10000pcs/hr

• Cap diameter:  20-60 mm

• Cap height:  10-30 mm

• Power of heating ring of the extruder:  11 KW

• Power of electromotor of the extruder:  5.5 KW

• Quantity of mold head:  16

• Power of electromotor of the molding press machine:  1.1 KW

• Power of hydraulic pressure:  7.5 KW

• Power of cooling system:  3 KW

• Air consumption:  6kgs, 0.5 m3/hr

• Supply voltage:  380V, 50Hz

• Machine weight:  2500 KG

• Machine size:  2700mm×1100mm×2200mm

JOBO MACHINERY Remarks :

The above configuration is only for your reference, particular configuration will be confirmed according to customers' actual needs.

 3.  Company Introduction

Located  in Taizhou, the "Hometown of mould", JOBO Machinery devoted in making cap compression molding machine since 2002.

Now, JOBO is one of the best cap making machine manufacturer in China.

With the philosophy of “Honesty, Quality first, Customer focus, Beyond the ordinary.”

JOBO can offer top service before and after sale.

All above bottle cap making machines is available in JOBO

We have offered thousands of plastic bottle cap making solution over the world.
