paper egg tray machine turn-in key project popular in Africa

Best Quality Small Egg Tray Machine

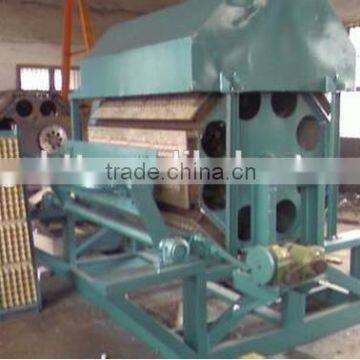

1.Brief Introduction of Small Egg Tray Machine

This small egg tray machine is a kind of machine which absorbs paper pulp the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. After such working procedure as transferring moulds, releasing moulds to complete paper tray production. Our forming machines adopt advanced PLC programmable controller; selecting of high quality electronic devices and pneumatic components; using stainless steel pulp barrels with high performance and long service life.

Various types and output of egg tray making machines can be supplied by our company, such as 800-1000pcs per hou, 2000pcs per hour, 3000pcs per hour, 4000pcs hour and so on.

2. Technical Parameters and compositon parts of Small Egg Tray Machine:

1. Pulping system

Pulper, 1.0M3,15kw;

vibration screen, 0.9M2,3kw;

mixer; pulp pump;water pump,control cabinet for pulping system,etc

2. Forming system

Consist of 1pc of forming platen and 1 pc of transfering platen.

Platen size:1100x470mm,4sets of 30-cell egg tray molds can be mounted on forming platen.

Forming efficiency:5-6cycles/min;

Equiped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.

Egg box Machine can produce various trays/cartons with different moulds as per your specification or samp... Product Type: Egg Tray Machine

output :700pcs,1000pcs,1300pcs per hour

3. Drying system

Outline dimension:20080x2650x3600mm;

Single layer conveying chain;heated by section;multi burners;

Six layers drying line, energy saving and saving place

The temperature of each section can be adjusted independently;burners with French or Italian brand;

The energy for option: LPG,GAS,diesel oil,Equiped with auto control cabinet.

4. Stacking system

The finished products will be counted and stacked automatically after drying.

You can tell our experience sales your requirement. We can arrange the plan for you according to your budget.  how many moulds forming machine you need?  which dry system is suitable for you?  Burning diesel or gas, coal?  We offer the building drawing, if you prefer to get turn-in key project, we can arrange at least two engineers to your country, install it and train your workers, how to replace the spare parts, how to resolve the problems.

Just call us, 0086-13838539707. 0086-20-29833100, your neighbour expert for your investment in egg tray making field
