Home > Products > Heat exchange part > China Supply High Quality Charge Air Cooler Wavy Aluminum Fin

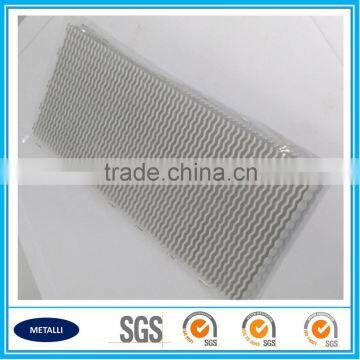

China Supply High Quality Charge Air Cooler Wavy Aluminum Fin

FOB Price

US$ 4.65 - 5.68 / Kilogram

500 Kilograms(Min. Order)

Port Shanghai China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	PR
Model Number	AF2007313	Type	Heat Exchanger Tube
Application	Heater Parts	Certification	CE

Product Description

China supply high quality charge air cooler wavy aluminum fin

Product Description

1. Aluminum alloy number
No.	Aluminum Alloy Number										Temper
1.1	AA1100,1060,3003,4343+3003,5052,6061,etc.										H14/H18/O/H24,etc.
2. Product size and tolerance
No.	Specification				Size					Tolerance
2.1	Length (mm)				Below 5000					±5
2.2	Width (mm)				14 to 1250					±0.1
2.3	Height (mm)				2 to 50					±0.05
2.4	Wall Thickness (mm)				0.08 to 4					±0.02
3. Chemical composition for some typical alloys
No.	AA number	Chemical Composition (%)
		Si	Fe	Cu	Mn	Mg	Zn	Ti	Zr	Bi	Others	Al
											Total
3.1	3003	0.6	0.7	0.05-0.2	1-1.5	0.05	0.1				0.15	RE
3.2	3005	0.6	0.7	0.3	1.0-1.5	0.2-0.6	0.25		Cr 0.1		0.15	RE
3.3	4045	9.0-11.0	0.8	0.3	0.05	0.05	0.1				0.15	RE
3.4	4047	11.0-13.0	0.8	0.3	0.15	0.05	0.2				0.15	RE
3.5	4104	9.0-10.5	0.8	0.25	0.1	1.0-2.0	0.2			0.05-0.2	0.15	RE
3.6	4343	6.8-8.2	0.8	0.25	0.1	0.05	0.2				0.15	RE
3.7	6060	0.3-0.6	0.1-0.3	0.1	0.1	0.35-0.6	0.15	0.1	Cr 0.05		0.15	RE
3.8	6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.25	0.15	Cr 0.04-0.35		0.5	RE
3.9	6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	Cr 0.1		0.15	RE
4. Mechanical properties for some typical alloys
No.	Alloy number	Thick. (mm)	Temper	Yield Strength Rp0.2(Mpa). Min		Tensile Strength Rm (Mpa)			Elongation (%) A50,Min		Typical usage
4.1	3003	0.08-0.15	O	35		95-135			8		Fins
4.2	3003	0.16-0.35	O	35		95-135			10		Fins
4.3	3003	0.15-0.3	H12	90		120-175			0.5		Fins
4.4	3003	0.06-0.08	H14	125		145-185			0.5		Fins
4.5	3003	0.081-0.3	H14	125		145-200			0.5		Fins
4.6	3003	0.06-0.16	H16	160		165-205			0.5		Fins
4.7	3003	0.2-0.3	H24	125		145-205			6		Fins
4.8	3003-1	0.35-3.0	O	35		95-135			20		Plate
4.9	3003-1	0.40-3.0	H14	125		145-185			3		Plate
4.10	3003-1	1.0-3.0	H24	125		145-185			10		Plate
4.11	3003	0.25-0.35	H24	130		155-205			6		Fins for air cooler
4.12	3003	0.1-0.2	H14	125		145-185			1		Fins
4.13	3003	0.1-0.3	O	35		95-135			10		Fins
4.14	3003	0.3-0.8	H14	125		145-185			2		Plate
4.15	3003	0.8-2.5	H14	125		145-185			4		Plate
4.16	3003	0.5-1.6	O	35		145-185			20		Plate
4.17	3003-1	0.3-1.8	O	35		95-135			20		Band
4.18	3003-1	0.5-4.0	O	35		95-135			25		Plate
4.19	3005 Mod	0.25-0.6	H24	150		185-235			8		Long life tube
4.20	4343	0.07-3.0	O	35		95-150			8		Sheet for brazing
4.21	4343	0.07-3.0	H14	120		140-200			0.5		Sheet for brazing
4.22	4045	0.07-3.0	O	35		95-150			8		Sheet for brazing
4.23	4045	0.07-3.0	H14	120		140-200			0.5		Sheet for brazing
4.24	4104	0.07-3.0	O	35		95-150			8		Sheet for brazing
4.25	4104	0.07-3.0	H14	120		140-200			0.5		Sheet for brazing
4.26	4047	0.07-3.0	O	35		95-150			8		Sheet for brazing
4.27	4047	0.07-3.0	H14	120		140-200			0.5		Sheet for brazing
4.28	3005	0.8-4.5	O	40		80-120			20		Vacuum plate
4.29	3005	0.6-4.5	H22	110		145-195			15		Vacuum plate
4.20	6060	0.8-4.5	O	≤85		≤150			20		Vacuum plate
4.21	6063	0.8-4.5	O	≤85		≤150			20		Vacuum plate
5. Surface finish and other properties
No.	Item			Description
5.1	Surface finish			a. The material shall bright finish; b. The material shall be from pinholes and tearing
5.2	Fin form			wavy

Packaging & Shipping

6. Packing,Shipping and others

No.

Item

Description

6.1

Packing

To be packed in wooden case with polythene cover for water protection

6.2

Marking

Each box to be legibly marked with the name of the manufacturer or supplier, the alloy designation of material,condition,dimensions and weight

6.3

Shipping tools

Ship goods by van to departune port then by sea to desitination port

6.4

Quantity variation

±10% variation with order quantity shall be acceptable

Company Information

7.Quality management and spot management

No.

Item

Description

7.1

Quality control

1. Quality assurance
a. Incoming material quality assurance; b. Process quality assurance; c. First sample quality assurance; d. Final quality assurance.
2. Process management-The right results are from the right process
a. Production process card control; b. Standard operational procedure;c.Job certification;d. Quality chart monitor.
3. Equipment and facility management
a. Periodic maintenance; b.Preventative maintenance.
4. Mold management
a. Mold life management; b.Periodic and preventative maintenance; c. Periodic inspection.

7.2

Inspection Tools

Altimeter,Vernier caliper,Micrometer,3D coordinate measuring instrument

7.3

Spot management

"5S" management (sort,set in order,shine,standard,sustainable).

FAQ

8.1 What are fins?

Fins are surfaces that extend from an object to increase the rate of heat transfer to or from the environment by increasing convection. The amount of conduction, convection, or radiation of an object determines the amount of heat it transfers. Increasing the temperature gradient between the object and the environment, increasing the convection heat transfer coefficient, or increasing the surface area of the object increases the heat transfer. Sometimes it is not feasible or economical to change the first two options. Thus, adding a fin to an object increases the surface area and can sometimes be an economical solution to heat transfer problems.

8.2 What are fins typical applications?

Fins are most commonly used in heat exchanging devices such as radiators in cars, computer CPU heatsinks, and heat exchangers in power plants. They are also used in newer technology such as hydrogen fuel cells. Nature has also taken advantage of the phenomena of fins. The ears of jackrabbits and Fennec Foxes act as fins to release heat from the blood that flows through them.
