Home > Products > Granulator > Double-Roller Granulator
Double-Roller Granulator
- 15 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Energy Saving Biomass Pellet Burner for Drying Equipment
-
Biomass Wood Pellet Wood Powder Burner for Sale
-
Biomass Wood Pellet Burner for Sale
-
Energy Saving Biomass Sawdust Pellet BuRner / Biomass Pellet Burner for Boiler
-
Environment-friendly Biomass Burener with Professional Manufacture
-
Energy Saving Biomass Burener with Professional Manufacture
Product Details
| Place of Origin | Henan, China | Brand Name | Taida | |
| Model Number | TDF series |
Product Description
Specifications
high quality Granulatorlong using time
stable operation
resonable price
ISO:9001:2008,SGS

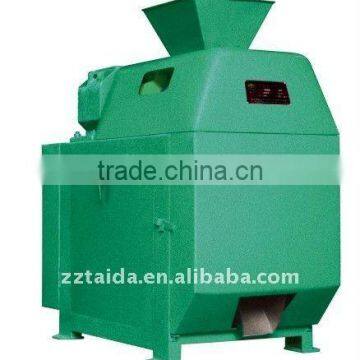

Double-Roller Granulator
Working principle:
A pair of mating gear roller is used as the working part for overstocking material
The type of working principle is continuous extruding granulation of positive-displacement
The plant can be adapted widely, and the end products possess higher intensity and uniform length
Shape of particle: cylindrical
Diameter of particle: 3.5 to 10mm
Rate of end product: ≥85%
Applied scope: widely applied in the field of catalyzer, auxiliary, additive, daily chemicals, agrochemicals, and more
Merits:
As the material is extruded by means of rolling of gears and positive-displacement compressing, it possess a wider adaptability to varying material, and is especially suited for granulation with thixotropy
Scraping cutter installed inside made the particle have the same length
Wetness required for granulation and the particle granulated by this plant is lower and the particle granulated by this plant is more intensive than screw type granulator
Main technical parameters of Double-Roller Granulator
Model | TDF-11 | TDF-22 | TDF-37 |
Product size | 4-10 | 4-10 | 4-10 |
Power (kw) | 11.5-15 | 18.5-22 | 37 |
Capacity (t) | 1-2 | 2-3 | 3-5 |
Dimension (mm) | 1200×750×1400 | 1350×1110×1600 | 1600×1000×1550 |
Contact Us
- Zhengzhou Taida Mining And Metallurgy Equipment Co., Ltd.
- Contact namelulu pan Chat Now
- Phone0086-0371-86565119
- Addresshigh and new-tech industry development zone,zhengzhou,china, Zhengzhou, Henan
