Home > Products > Aluminum product > Extruded Aluminum Alloy Tube

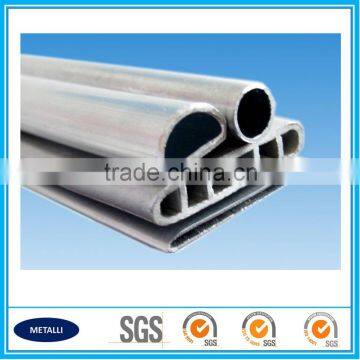

Extruded Aluminum Alloy Tube

FOB Price

US$ 2,880 - 3,680 / Ton

1 Ton(Min. Order)

Port Shanghai China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Grade	Other, 1100,1060,1070,3003,5A02,6061,7072,etc.
Shape	Other, oval,square,rectangular,hex,round	Surface Treatment	Other, custom
Outer Diameter	5 to 125 mm	Length	Up to 6000 mm, Up to 6000 millimeters
Thickness	0.2 to 150mm	Usage	Industry
Hardness	Standard	Alloy Or Not	Is Alloy
Temper	T3 - T8	Al (Min)	98%
Wall Thickness	up to 10mm	Model Number	at 1101
Brand Name	YZ

Product Description

extruded aluminum alloy tube

Product Description

1. Aluminum alloy number
No.	Aluminum Alloy Number
1.1	1100,1060,1070,2024,3003,5A02,6061,6063,7072etc.
2. Product size and tolerance
No.	Specification				Size					Tolerance
2.1	Length (mm)				Up to 5000					±1
2.2	Width or diameter (mm)				Up to 150					±0.08
2.3	Height or diameter (mm)				Up to 150					±0.08
2.4	Thickness (mm)				0.2 to 10					±0.01
3. Chemical composition for some typical alloys
No.	Internal Alloy Number	AA number	Chemical Composition (%)
			Si	Fe	Cu	Mn	Mg	Zn	Ti	Zr	Bi	Others		Al
												Each	Total
3.1	1060	1060	0.25	0.35	0.05	0.03	0.03	0.05	0.03			0.03		99.6
3.2	1070	1070	0.2	0.25	0.04	0.03	0.03	0.04	0.03			0.03		99.7
3.3	1100	1100	0.95		0.05-0.2	0.05			0.1			0.05	0.15	RE
3.4	3003	3003	0.6	0.7	0.05-0.2	1-1.5	0.05	0.1				0.05	0.15	RE
3.5	3005	3005	0.6	0.7	0.3	1.0-1.5	0.2-0.6	0.25		Cr 0.1		0.05	0.15	RE
3.6	4004	4004	9.0-10.5	0.8	0.25	0.1	1.0-2.0	0.2				0.05	0.15	RE
3.7	4045	4045	9.0-11.0	0.8	0.3	0.05	0.05	0.1				0.05	0.15	RE
3.8	4047	4047	11.0-13.0	0.8	0.3	0.15	0.05	0.2				0.05	0.15	RE
3.9	4104	4104	9.0-10.5	0.8	0.25	0.1	1.0-2.0	0.2			0.05-0.2	0.05	0.15	RE
3.10	4343	4343	6.8-8.2	0.8	0.25	0.1	0.05	0.2				0.05	0.15	RE
3.11	4343A	4343A	6.8-8.2	0.6	0.1	0.1	0.02	0.1				0.05	0.15	RE
3.12	6060	6060	0.3-0.6	0.1-0.3	0.1	0.1	0.35-0.6	0.15	0.1	Cr 0.05		0.05	0.15	RE
3.13	6061	6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.25	0.15	Cr 0.04-0.35		0.05	0.5	RE
3.14	6063	6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	Cr 0.1		0.05	0.15	RE
3.15	6A02	6A02	0.5-1.2	0.5	0.2-0.6	0.1-0.35	0.45-0.9	0.2	0.15			0.05	0.15	RE
3.16	7072	7072	0.7	0.1	0.1	0.1	0.1	0.8-1.3				0.05	0.15	RE
4. Mechanical properties for some typical alloys
No.	Alloy number		Thick. (mm)		Temper		Yield Strength Rp0.2(Mpa). Min			Tensile Strength Rm (Mpa)			Elongation (%) A50,Min
4.1	3003		0.08-0.15		O		35			95-135			8
4.2	3003		0.16-0.35		O		35			95-135			10
4.3	3003		0.15-0.3		H12		90			120-175			0.5
4.4	3003		0.06-0.08		H14		125			145-185			0.5
4.5	3003		0.081-0.3		H14		125			145-200			0.5
4.6	3003		0.06-0.16		H16		160			165-205			0.5
4.7	3003		0.2-0.3		H24		125			145-205			6
4.8	3003-1		0.35-3.0		O		35			95-135			20
4.9	3003-1		0.40-3.0		H14		125			145-185			3
4.10	3003-1		1.0-3.0		H24		125			145-185			10
4.11	6A02		0.8-4.5		O		≤85			≤150			20
4.12	6060		0.8-4.5		O		≤85			≤150			20
4.13	6063		0.8-4.5		O		≤85			≤150			20
4.14	4343		0.07-3.0		O		35			95-150			8
4.15	4343		0.07-3.0		H14		120			140-200			0.5
4.16	4045		0.07-3.0		O		35			95-150			8
4.17	4045		0.07-3.0		H14		120			140-200			0.5
4.18	4104		0.07-3.0		O		35			95-150			8
4.19	4104		0.07-3.0		H14		120			140-200			0.5
4.20	4A13		0.07-3.0		O		35			95-150			8
4.21	4A13		0.07-3.0		H14		120			140-200			0.5
4.22	4047		0.07-3.0		O		35			95-150			8
4.23	4047		0.07-3.0		H14		120			140-200			0.5
4.24	3003		0.25-0.35		H24		130			155-205			6
4.25	3003		0.1-0.2		H14		125			145-185			1
4.26	3003		0.1-0.3		O		35			95-135			10
4.27	3003		0.3-0.8		H14		125			145-185			2
4.28	3003		0.8-2.5		H14		125			145-185			4
4.29	3003		0.5-1.6		O		35			145-185			20
4.30	3003-1		0.3-1.8		O		35			95-135			20
4.31	3003-1		0.5-4.0		O		35			95-135			25
4.32	3005 Mod		0.25-0.6		H24		150			185-235			8
4.33	6060		0.8-4.5		O		≤85			≤150			20
4.34	6063		0.8-4.5		O		≤85			≤150			20
4.35	3005		0.8-4.5		O		40			80-120			20
4.36	3005		0.6-4.5		H22		110			145-195			15
4.37	1100		0.2-0.3		H24		90			115-155			3
4.38	6A02		1.0-5.0		O		≤85			≤150			20
5. Surface finish and other properties
No.	Item			Description
5.1	Surface finish			Original, painting,powder coating, zinc plating, anodized,etc.

Packaging & Shipping

6. Packing,Shipping and others

No.

Item

Description

6.1

Packing

To be packed in wooden boxes

6.2

Marking

Each box to be legibly marked with the name of the manufacturer or supplier, the alloy designation of material,condition,dimensions and weight

6.3

Shipping tools

Ship goods by van to departune port then by sea to desitination port

6.4

Quantity variation

±10% variation with order quantity shall be acceptable
