Home > Products > Solar Power GEL Battery > deep cycle battery12V60ah

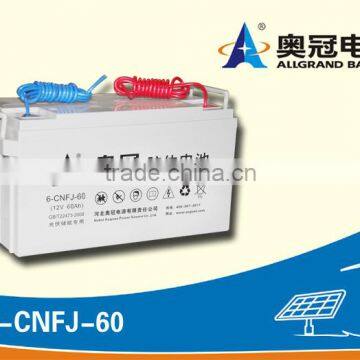

deep cycle battery12V60ah
- Tianjin
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Aoguan | |
| Model Number | 6-CNFJ-60 | Type | Other, gel | |
| Nominal Voltage | 12V | Size | Other, 351*170*179mm | |
| Nominal Capacity | 55ah |
Product Description
Specifications
deep cycle battery12V60ahAGM Gel battery
Solar ,wind storage battery
CE, ISO9001, ISO14001, TLC
Design life 8 years
home solar system storage battery12V60ah
FEATURES
Maintenance-Free Operation
Absorbent Glass Mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance. During the expected float service life of batteries, no need to check the specific gravity of the electrolyte or add water.
Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance.
Long Service Life
A unique corrosion-resistant grid alloy ensures batteries have long service life.
Low Self Discharge
Using high purity raw materials ensures batteries have less self-discharge.
Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate
PARAMETERS
| No. | Model | Rated Voltage V | Rated Capacity | Dimensions(±2mm) | Weight KG | Connection | |||
| Length | Width | Height | Total Height | ||||||
| 1 | 6-CNFJ-24 | 12 | 24AH | 204 | 165 | 175 | 175 | 12.00 | Lead wire |
| 2 | 6-CNFJ-38 | 12 | 38AH | 204 | 165 | 175 | 175 | 12.70 | Lead wire |
| 3 | 6-CNFJ-50 | 12 | 50AH | 270 | 165 | 169 | 169 | 14.80 | Lead wire |
| 4 | 6-CNFJ-55 | 12 | 55AH | 270 | 165 | 169 | 169 | 16.50 | Lead wire |
| 5 | 6-CNFJ-60 | 12 | 60AH | 351 | 170 | 179 | 179 | 18.90 | Lead wire |
| 6 | 6-CNFJ-65 | 12 | 65AH | 351 | 170 | 179 | 179 | 20.40 | Lead wire |
| 7 | 6-CNFJ-75 | 12 | 75AH | 338 | 172 | 215 | 218 | 23.20 | Lead wire |
| 8 | 6-CNFJ-80 | 12 | 80AH | 338 | 172 | 215 | 218 | 24.00 | Lead wire |
| 9 | 6-CNFJ-90 | 12 | 90AH | 338 | 172 | 215 | 218 | 27.20 | Lead wire |
| 10 | 6-CNFJ-100 | 12 | 100AH | 338 | 172 | 215 | 218 | 31.50 | Lead wire |
| 11 | 6-CNFJ-120 | 12 | 120AH | 413 | 174 | 210 | 212 | 36.50 | Lead wire |
| 12 | 6-CNFJ-135 | 12 | 135AH | 483 | 170 | 238 | 238 | 40.70 | Lead wire |
| 13 | 6-CNFJ-150 | 12 | 150AH | 483 | 170 | 238 | 238 | 43.40 | Lead wire |
| 14 | 6-CNFJ-180 | 12 | 180AH | 523 | 240 | 220 | 220 | 57.90 | Lead wire |
| 15 | 6-CNFJ-200 | 12 | 200AH | 523 | 240 | 220 | 220 | 60.00 | Lead wire |
| 16 | 6-CNFJ-230 | 12 | 230AH | 523 | 240 | 220 | 220 | 62.00 | Lead wire |
| 17 | CNFJ-200 | 2 | 200AH | 169 | 105 | 330 | 360 | 13.00 | Terminal |
| 18 | CNFJ-300 | 2 | 300AH | 171 | 151 | 330 | 360 | 19.50 | Terminal |
| 19 | CNFJ-400 | 2 | 400AH | 211 | 172 | 330 | 360 | 25.50 | Terminal |
| 20 | CNFJ-500 | 2 | 500AH | 241 | 172 | 330 | 360 | 32.00 | Terminal |
| 21 | CNFJ-800 | 2 | 800AH | 410 | 176 | 330 | 360 | 51.00 | Terminal |
| 22 | CNFJ-1000 | 2 | 1000AH | 475 | 175 | 330 | 360 | 62.50 | Terminal |
APPLICATIONS
- Solar system and Wind system
- Emergency lighting equipment
- Fire alarm and security systems
- Telecommunication equipment
- Electric equipment and telemeter equipment
- Light equipment
- Wireless lawn movers vacuum cleaner and washing machine
- Toys and consumer electronics
- Portable power tools measuring and medical equipment Portable video camera portable personal computer
- Garden lighting.
Use and maintenance
Please use constant-voltage charge.
In floating charge, the voltage is 2.23 to 2.27 per unit cell.In cycle use,
the voltage is 2.35 to 2.45 per unit cell,the max.current is no more than 25%C
Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use
Please do not use it near the heat source and open flame
Please keep it at low temperature.Please change it while there is liquid leaking or damage
