Top Taxi LED Display Sign Board p6

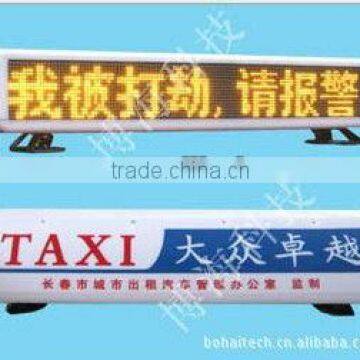

Taxi Wireless LED Top Light Display (built-in GSM)

Model No: CJ-16128P7.62Y-TATD-PD

1. Pixel pitch: length 6mm, height 7.62mm, have good display effect with big words.
2. Display color: yellow
3. Resolution: height 16 dots, length 128 dots.
4. Single-line display 16 English characters , can store 256 messages, each message can have 256 English characters , can display all the national language.
5. Use professional wide range power input from DC9V – DC36V for taxi.
6. Standard versatile port RS232/RS485.
7. Each day can be divided into 4 sessions for 16 levels different brightness adjustment.
8. High brightness, high contrast, can be displayed well under direct sunlight, suitable for outdoor brightness environment completely.
9. Display priority: 1, Alarm messages; 2, instant message; 3, advertisement message; 4, default message like investment hotmail etc.
10. Support on-line software upgrade, update product performance easily.
11. Reliable communication, use CRC adjustment, resume broken downloads, store the midway results in flash
12. Remotely and ACC control power on / off (when motor switches off the screen will turn off accordingly to reduce power consumption)
13. Information life cycle setup. (Can setup playing time of each information).
14. Use super-thin plastic frame with a whole molding, it is beautiful, firm, beneficial to heat, and easy to maintain.
15. Use moveable fixing brackets, easy to install or maintain.
16. Passed Reverse Polarity Performance, Over-current Performance, Arc Test, ISO7637 Instant electromagnetism Anti-jamming Performance, Anti-vibration Performance, Impact Property etc many strict tests of vehicle electronic products function targets by China National Computer Products Quality Supervising Test Center and Automotive and Transportation Engineering school of Shenzhen Polytechnic. Absolutely suitable for vehicle usage environment.
17. Big module design, solved the problems of rough screen, inconsistent angle, display mosaic, inconvenience of after-sale maintenance etc which often come with small module design, to ensure the LED display quality and easy to maintain.
18. Use constant-current LED drive mode, to make sure the consistency of the product brightness.
19. Use multiple safety protection, including over-current protection of power input, auto-protection of inter-circuit, to ensure the safety of the vehicle circuit and reliability.
20. Display time segments setup: each day can be divided into 24 segments to play, the time segments can be precise to seconds.
21. Can adjust playing speed and display dwell time.
22. Power on delay function, Out-of-control protection function and information-return flicker function.
23. Water-proof, moisture-proof, anti-mist etc outdoor-used functions.

Technical data details

Firmware technical data:

Screen technical data

Environment data

Packing Details:

Carton Size: 900*530*447mm

Quantity: 4pcs

G.W.: 21kgs

Certificate:

CE, FCC

More types:

P.S.

If you want some samples, please go into our Aliexpress store and buy them online.

Thank you
