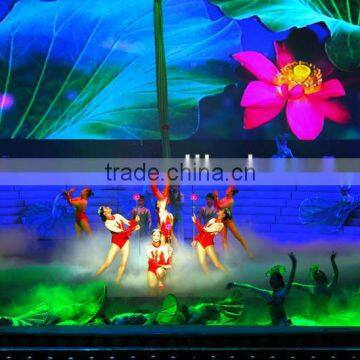

led rental display screen, SMD P6 stage rental led display(Die-cast Aluminum Cabinet)

Model

P5 Indoor LED Display Screen

NO.

Items

Specifications

1

Pixel Pitch(MM)

5

2

Pixel Composition

SMD3in1

3

LED Encapsulation Type

SMD3528

4

LED Chip Sizes

12+13+13(RGB)Epistar + Silan + Nicha + Opto

5

Pixel Density(Dots/M2)

40000

6

Module Size(MM)

160 x 160

7

Module Resolution(Dots)

32 x 32

8

Cabinet Size(MM)

480 x 480

9

Cabinet Resolution(Dots)

96 x 96

10

Maximum Brightness

More than 3000cd/sqm

11

Before Dot to Dot Correction

More than 2000cd/sqm

12

After Dot to Dot Correction

More than 1700cd/sqm

13

Brightness Adjustment Range

Manually, Auto Stepless Continuous Adjustment, 14 levels Adjustment without Gray Scale Loss

14

Color Temperature Adjustable

3200K - 10000K

15

Best View Distance(M)

5m - 35m

16

Horizontal View Angle

120 deg

17

Vertical View Angle

60 deg

18

Signal Processing

16bit

19

Control Mode

Synchronization

20

Driving Mode

1/8 Scan

21

Contrast

1000:1

22

Colors

281 Trillion Billion

23

Gray scale per colors

26720 level

24

Video Frame Frequency

More than 60HZ

25

Refresh Rate

More than 1200HZ

26

Lifetime

100000 Hours

27

Maximum Power Consumption

Less than 1000 w

28

Average Power Consumption

Less than 480 w

29

Cabinet Weight(without Steel Structure)

18 Kg

30

Compatible Signals(with video processor)

X Composite, X Component, RGB,SDI,HDSDI,DVI,AV, S-Video, VGA, HDMI, DP

31

Working Voltage

100-240V/AC 50/60HZ(LED module DC 5V).

32

Environment Temperature

–20 deg / +60 deg

33

Storage Temperature

–40 deg / +60 deg

34

IP Protection Rate

Indoor Use

35

Screen Surface Evenness

Less than 0.5mm

36

Working Humidity

10-99 percent

37

Storage Humidity

10-99 percent

38

Malfunction Dot Rate

Less than 0.0001

39

Display Screen Signals

RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

40

Wind Resistance

Level 12

41

Shock Resistance

Level 8
