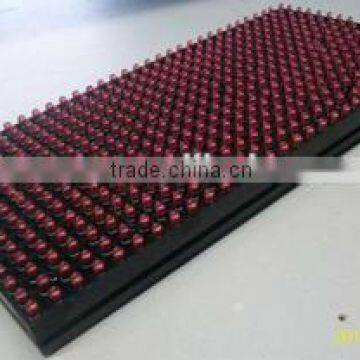

10mm pixel semi-outdoor indoor red 320*160 32*16 one color p10 led sign module,p10 single color 320mm x 160mm
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
outdoor waterproof p10 led display module / P10 Outdoor Double Side Red LED screen
-
Sinoela outdoor P10 red color led module hot products/promotional price, p10 red led display modules 32x16
-
outdoor P10 red color led module hot products/promotional price
-
32x16 pixels express semioutdoor/indoor/outdoor p10 single red color led display module
-
Waterproof high quality P10 red color outdoor led module
-
High Performance P10 1r outdoor Single Red Color Led Display Module
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | P10mm | Usage | Outdoor | |
| Tube Chip Color | Red | Display Function | Animation | |
| Pixels | 10mm | Screen Dimension | Customized size |
Product Description
| Technical parameter | ||
| Unit board | Pixel pitch | 10mm |
| Module size | 320mm*160mm | |
| Resolution of module | 32*16dots | |
| Density of pixel | 10000dots/m2 | |
| Pixel configuration | LED546 1R | |
| Main Technical parameter | Red wavelength | 625±2nm |
| Green wavelength | 525±2nm | |
| Blue wavelength | 470±2nm | |
| Colors | 16777216 | |
| Best viewing distance | 10-300m | |
| Horizontal/Vertical Viewing angle | 120 degree/60 degree | |
| Gray scale | 16bits per color | |
| Color temperature | 6500k | |
| Brightness | More than 4000cd/sqm | |
| IP grade | Front :IP67 back: IP65 | |
| Frame frequency | 60HZ | |
| Refresh frequency | ≥2000HZ | |
| Control method | Synchronization/Asynchronization | |
| Drive method | 1/4 Scan | |
| Temperature | Storage:-40°C-+85°C | |
| Working:-40°C-+65°C | ||
| Operating ambient humidity | 10%—95%RH | |
| Earth leakage current | < 2mA | |
| Defects rate. | ≤0.00001(Led display line standard<0.0001) | |
| Flatness | Tolerance of interpixel ≤0.3mm | |
| Tolerance of modules clearance ≤0.6mm | ||
| MTBF | More than 10,000 hours | |
| Life span | More than 100,000hours | |
| Power | Operating voltage | AC110V/220V±10% |
| Maximum/Average power consumption | 1100/600w/m2 | |
| Current | ≤20mA(single LED) | |
| Power switch | Automatic switch | |
| Control system | CPU | Pentium4 or above |
| Signal Input | Composite ,S-video,Component,VGA,DVI,HDMI,SDI,HD_SDI,etc | |
| Controlling system | main controller card+optical fiber transmission | |
| Control method | Asynchronization | |
| Systems operating platforms | WinXP,Win2000,Vista, Win7 etc. | |
| Softer ware | LED media player | |
Optional:
Single color
DIP
P7.62mm 488mm x 244mm 64x32 pixels
P10mm 320mm x 160mm 32x16 pixels
P12mm 400mm x 200mm 32x16 pixels
P16mm 256mm x 128mm 16x8 pixels
P20mm 320mm x 160mm 16x8 pixels
Dot Matrix
P4mm 256mm x 128mm 64x32 pixels
P4.75mm 304mm x 152mm 64x32 pixels
P7.62mm 488mm x 244mm 64x32 pixels
Dual color
DIP
P7.62mm 488mm x 244mm 64x32 pixels
P10mm 320mm x 160mm 32x16 pixels
P12mm 192mm x 192mm 16x16 pixels
P16mm 256mm x 128mm 16x8 pixels
P20mm 320mm x 160mm 16x8 pixels
Dot Matrix
P4mm 256mm x 128mm 64x32 pixels
P4.75mm 304mm x 152mm 64x32 pixels
P7.62mm 488mm x 244mm 64x32 pixels
Tri-color
DIP
P10mm 160mm x 160mm 16x16 pixels
P12mm 192mm x 192mm 16x16 pixels
P16mm 256mm x 256mm 16x16 pixels
Dot Matrix
P4mm 256mm x 128mm 64x32 pixels
P4.75mm 304mm x 152mm 64x32 pixels
P7.62mm 488mm x 244mm 64x32 pixels
Full color
SMD
P1.8mm 230mm x 115mm 128x94 pixels
P2mm 240mm x 120mm 120x60 pixels
P3mm 192mm x 96mm 64x32 pixels
P4mm 256mm x 128mm 64x32 pixels
P5mm 160mm x 160mm 32x32 pixels
P6mm 192mm x 192mm 32x32 pixels
P7.62mm 244mm x 122mm 32x16 pixels
P10mm 320mm x 160mm 32x16 pixels
DIP
P10mm 160mm x 160mm 16x16 pixels
P10mm 320mm x 160mm 32x16 pixels
P10mm 320mm x 320mm 32x16 pixels
P12mm 192mm x 192mm 16x16 pixels
P16mm 256mm x 256mm 16x16 pixels
P16mm 256mm x 128mm 16x8 pixels
P20mm 320mm x 160mm 16x8 pixels
P25mm 200mm x 200mm 8x8 pixels
