ZQ-V8-TS01 P10 Full Color Outdoor Led Display Control Card

Specifications

Technical parameters

V8 system is developed by ZDEC designed for common constant current chip of LED screen. It bases on characters of constant current and kinds of users’ demands and realizes various applications which make the screen perform perfectly.

Contains

Main controller: full color transmitter

Sub controller: full color receiver

HUB
Accessories: Multi-function card, fiber optic converter, DVI replicator

V8 Full Color Transmitter

Performance parameter
Support USB 2.0

Contains

Main controller: full color transmitter

Sub controller: full color receiver

HUB
Accessories: Multi-function card, fiber optic converter, DVI replicator

V8 Full Color Transmitter

Performance parameter
Support USB 2.0

support DVI
Support Parameter
1000M Output port
when frame frequency is 60Hz, Transmitter can drive1.31million pixels;  for each port, dots are no more than 0.65million pixels
Max width≤2048, Max height≤1200
Request to both ports in use : U port up and D port down. When the frame frequency decreases, the transmitter can load more pixels
  When frame frequency is 30Hz, LED dots ≤2.36million pixels
each port dots ≤1.31million dots

Electronic parameter:

Work voltage:  5±0.5V
work current: 2000mA
Temperature: 0-60
Humidity: 5%-95%

More types:

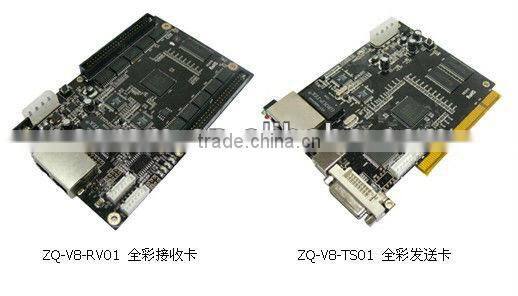

ZQ-V8-TS01(Sending card)

ZQ-V8-RV01 (Receiving card)

Pictures

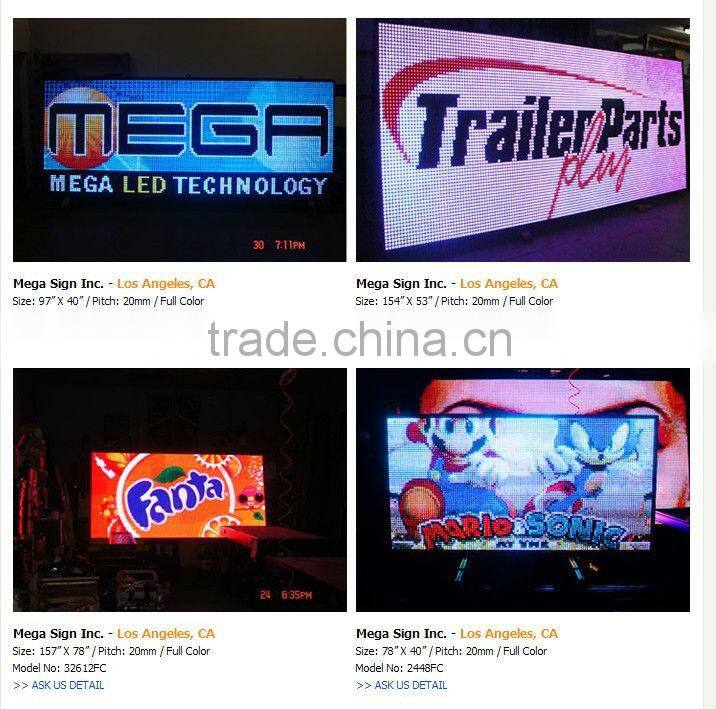

Effect

Remarks
