48 Inches 12" 8.889 Green LED Gas Price Signs Digital for Gas Station

outdoor led gas price sign

1 Size: 8" 10" 12" 16" 20" 24" 36" 48" 60" 72" and etc. We can customize the clients’ special request.

2 Digital format on the sign: 8.888 (88.88, 888.8) / 8.8888(88.888)/ 8.88 9 / 8.88 9/10 etc

3 Display Color: Red, Amber, Green, Blue, White, dual color, full color

4 High Brightness more than 10000mcd (traffic led)

5 Horizontal Viewing Angle: 100° (traffic led), generally, people will not see the signs directly.

6 Working Temp: -40 Degrees Celsius ~ + 85 Degrees Celsius

7 Waterproof rate: IP68

8 Wireless control: RF/LCD (enclosed pictures below), wireless control distance for regular one is 100m, and can be customized.

9 Cabinet housing material: Iron/Aluminum

10 Structure: control box separated from the led sign (Iron/Aluminum cabinet and transparent PC)

11 Digital height: 5" (127mm), 6" (152.4mm.), 8" (203.2mm), 10" (254mm), 12" (304.8mm), 16" (406.4mm) ……

12 Lines format: 5"--(2 lines), 6"--(2 lines), 8"--(2 lines), 10"--(2 lines), 12"--(3 lines), 16"--(3 lines) 20"(red, yellow 5 lines, green 4 lines, 24"(red, yellow 5 lines, green 4 lines)……

13 Life span: ≥100,000 hours

14 Aspect Ratio: (height/width)=2/1

15 Segment: 7 segments per digital number "8"

16 Input Voltages: AC120V/220V

The Parameter Of LED Gas Price Sign

(LED Gas Price Changer/LED Gas Price Change Unit/LED Gas Price Display)

LED lamp:

High Brightness

(traffic led): 1200 mcd ≤ Red ≤ 1500 mcd(20mA) (TAI)

1800 mcd ≤ Green ≤ 2200 mcd(20mA)  (TAI)

800 mcd ≤ Yellow ≤ 1000 mcd(20mA) (TAI)

450 mcd ≤Blue ≤600 mcd(20mA) (TAI)

Wavelength: Red traffic Led 620~625mm

Yellow traffic Led 580~585mm

Green traffic Led 502~505mm

Blue traffic Led 462~467mm

Horizontal Viewing Angle: 100° (traffic led)

Vertical Viewing Angle: 40° (traffic led)

Digits Features:

Aspect Ratio: 7 segments per digital number

Drive Mode: ( height : width)=2:1

Voltage: static constant current

Digital height: 5”(127mm),6”(152.4mm.),8”(203.2mm),10”(254mm),12”(304.8mm),16”(406.4mm)… …

Lines format: 5”(red, green, yellow,2 lines)

6″(red, green, yellow,2 lines)

8” (red, green, yellow,2 lines)

10” (red, green, yellow,2 lines)

12” (red, green, yellow,3 lines)

16”(red, yellow 4 lines, green 3 lines)

20″(red, yellow 5 lines,green 4 lines)

24"(red, yellow 5 lines,green 4 lines)

36"

48"

PCB board: bottom board is black

Gas Price Sign Features:

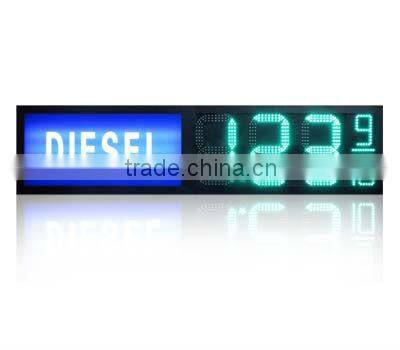

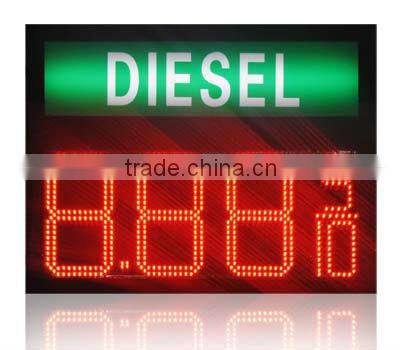

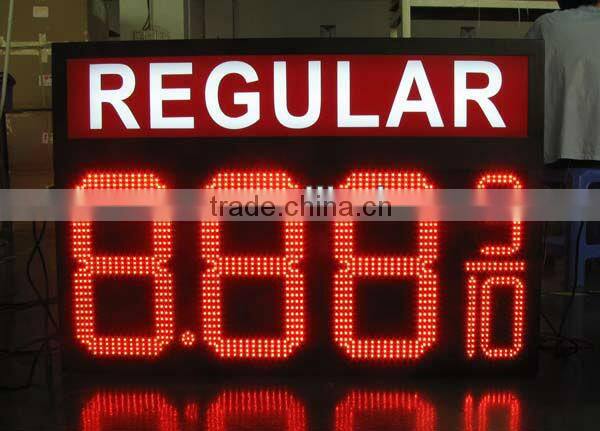

Display Format: 8.888, 8.88 9/10, 8.889, 88.888 etc

Control way: remote controller

Remote control range: ≤120m

Brightness: Brightness can be automatic adjustment

Working Temp:

Input Voltage: AC120V/220V

Waterproof level: IP65

Structure: control box seperated from the cabinet, Iron/Aluminum cabinet and transparent PC

Life span: ≥100,000 hours

Maintenance warranty: 1 year, lifetime maintenance

Accessories:

Power: MW 12V 12.5A

8 core signal cable: 160cm

2 core power cable: 160cm

More types

Optional:

Size: 5 Inch, 6 Inch, 8 Inch, 10 Inch, 12 Inch, 16 Inch, 18 Inch, 20 Inch, 24 Inch, 27 Inch, 36 Inch, 48 Inch.

Format: 8.888   88.88   888.8   8.889   8.889/10  8.88   88.8  88   8 etc

Color: Red, Blue, Green, Yellow, White

Control system: RS232 interface, RF/LCD wireless controller
