p16 full color High brightness LED football stadium LED panel board

FOB Price

Negotiable / Square Meter

1 Square Meter(Min.Order)

Supply Ability 10000 Square Meter / Square Meters per Month
Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	OEM
Model Number	PH16	Usage	Outdoor
Tube Chip Color	Full Color	Display Function	Video
Pixels	16mm	Screen Dimension	Customized size

Product Description

Specifications

1. High Resolution 10000
2. High Brightness 12000nit
3. CE, ROHS, UL, FCC
4. Five years warranty
5. Low power consumption

Specification:

16mm pixel pitch
Special Designed Structure for Perimeter ,Event Rental and Fix Installation
Both Indoor &Outdoor Used
Both For Front maintenance & Back Maintenance
Designed With Fast Assembly and Installation
Popular Structure With Vivid Image ,High Resolution

1	Pitch Pixels	16 (mm)
2	Module Size	256mm x 256mm
3	Cabinet size	1280mmW768mmH100mmT
4	Cabinet Resolution	80pixels *48pixels
5	Cabinet Weight	About 55KG
6	Pixel density(dots/M2)	3960 dots/ m2
7	Brightness	More than 12000 (cd/m2)
8	Brightness Adjusted	256 grade automatically, 8 grade manually
9	Color temperature(K)	5000—9500K
10	View Angle	Horizontal:120 deg; Vertical:60 deg
11	Best viewing distance(m)	16—300M
12	Communication distance	120 meters by LAN cable(without relay)(optical fiber transmission 500M-10000M)
13	Drive Method	1/8 scran
14	Gray Grades	4096levels for each color
15	Display Color	549billion
16	Refresh Frequency (Hz)	More than 3000
17	Control Mode	Synchronous with PC
18	Signal interface	DVI
19	Input signal (with video processor)	S-Video,Component,VGA,DVI, HDMI,HD_SDI, DP, AV
20	Display format	1024 * 768, 12801024, 16001200, 1920*1280,
21	Software	Support windows series system
22	Waterproof	Yes
23	Protection	IP68
24	Working temperature(ºC)	(-20 deg~+60 deg )
25	Humidity(RH)	10%—90 %RH
26	LED Lifetime(hours)	More than 100,000
27	Whole Display Flatness	Less than 1mm Juncture
28	Power Consumption	Average:≤347w/m2;Maximum: ≤1041
	Operating Voltage	AC100V±220V 50~60HZ
	Operating Platform	WINDOWS(WIN98,WIN2000, WIN XP, WIN7, WIN8)

System connection:

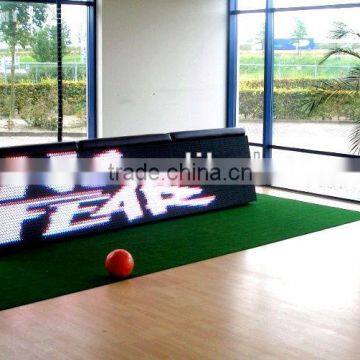

Project Name: outdoor football Rental LED Display in Argentina
Product Name: P16
Pixel Pitch: 16 mm
Screen Size: 48 Sq.m
Installation Address: Argentina

Installation Time: May, 2010

Project Name: led display project in Zambia.
Application Environment: Outdoor led advertising display, Football field led screen
Product Name: PH16MM DIP
Pixel Pitch: 16 mm
Screen Size: 30 Sq.m
Installation Address: Zambia
Installation Time: 2010

Project Name: Football led display project in Germany.
Application Environment: Rental led display, Outdoor led advertising display,

Product Name: PH10MM SMD
Pixel Pitch: 10 mm
Screen Size: 72 Sq.m
Installation Address: Germany
Installation Time: 2012
