Home > Products > FEIYAO/hydraulic jack > RCH-120 10tons Single Acting Hollow Hydraulic Jacks

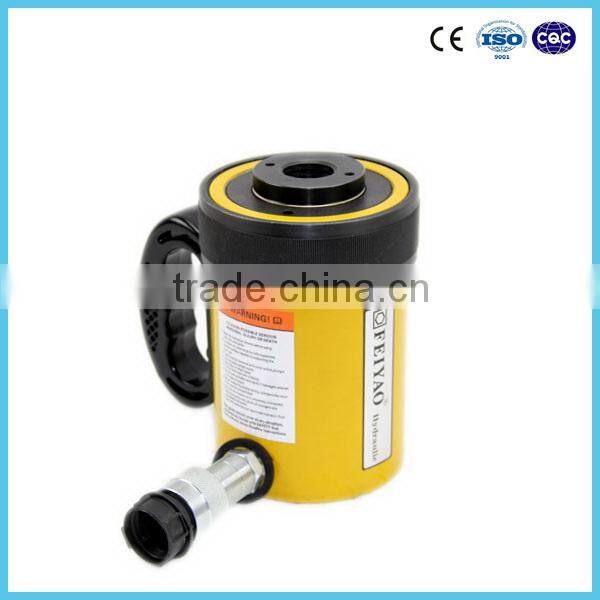

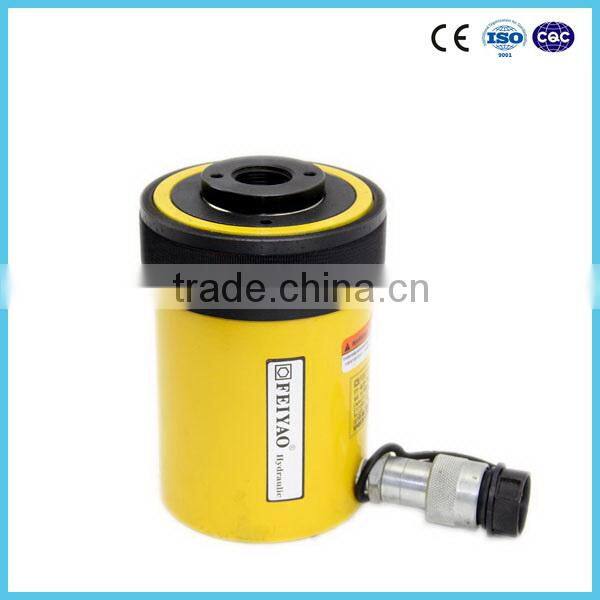

RCH-120 10tons Single Acting Hollow Hydraulic Jacks

FOB Price

US$ 800 - 2,000 / Piece

1 Piece(Min. Order)

Port shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Hydraulic Jack	Capacity (Load)	11-20T
Max Height	330mm	Min Height	56mm
Certification	CE, ISO9001:2008	Place of Origin	Jiangsu, China
Brand Name	FEIYAO	Model Number	FY-RCH
Warranty	1 Years

Product Description

Specifications

single acting hollow hydraulic jacks
1.spring return
2.CE certificate
3.Hollow piston design
4.Factory supply directly

RCH-120 10tons single acting hollow hydraulic jacks

Feiyao hollow plunger hydraulic cylinder provide lightweight, versatile solutions for tensioning and testing. RCH, RRH-series.

Center hole, single acting, spring return. Ideal for pulling and tensioning of cables, anchor bolts, forcing screws, etc.

Features

1.Hollow plunger design allows for both pull and push forces

2.Single-acting, spring turn

3.Nickel-plated, floating center tube on models over 20 tons increases product life

4.Baked enamel finish for increased corrosion resistance

5.Collar threads for easy fixturing

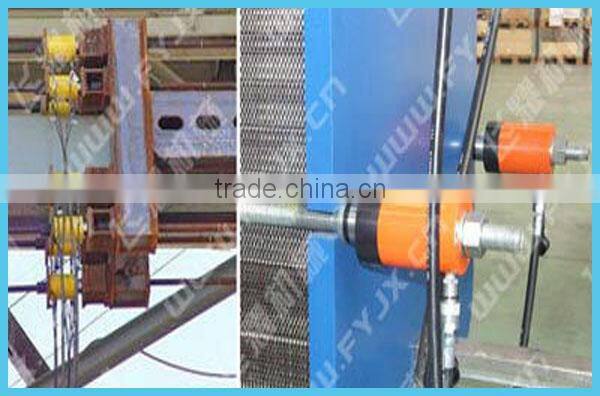

Application

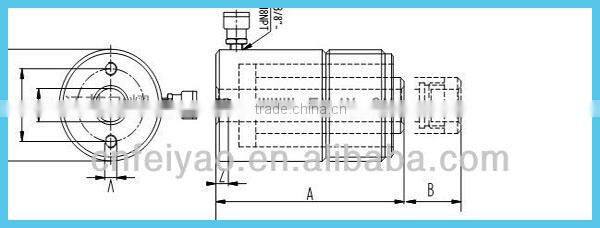

Parameter information

Model	Capacity @700bar ton (KN)	Stroke (mm)	Effective area (cm²)	Oil capacity (cm³)	Closed height (mm) A	Extending height (mm) B	Out diameter (mm) D	Central hole diameterY (mm) Y	Weight (kg)
FY-RCH-120	13(125)	8	17.9	14	56	63	70	19.6	1.5
FY-RCH-121		41	17.9	73	121	162	70	19.6	2.8
FY-RCH-1211		41	17.9	73	121	162	70	19.6	2.8
FY-RCH-123		76	17.9	136	184	260	70	19.6	4.4
FY-RCH-202	20(215)	51	30.5	156	162	213	99	26.9	7.7
FY-RCH-206	20(215)	155	30.5	473	306	461	99	26.9	14.1
FY-RCH-302	30(325)	63	46.6	294	179	242	114	33.3	10.9
FY-RCH-306	30(325)	156	46.6	727	330	486	114	33.3	21.8
FY-RCH-603	60(576)	76	82.2	625	248	324	159	53.8	28.1
FY-RCH-606	60(576)	152	82.2	1249	324	476	159	53.8	35.4
FY-RCH-1003	100(931)	76	133.1	1012	254	330	213	79.0	59.9

Accessories:

♦Seal Kits

♦Standard Couplers

♦Swivel Caps

Brief introduction of FEIYAO

Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.

Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.

Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.

We warmly welcome all overseas customers to talk with us about business or other cooperations.

Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.
