Home > Products > FEIYAO/hydraulic jack > RRH-1006 100tons double acting hollow hydraulic jacks

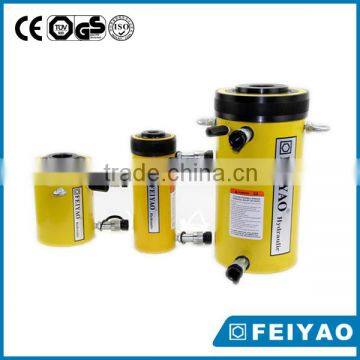

RRH-1006 100tons double acting hollow hydraulic jacks

FOB Price

US$ 1,000 - 10,000 / Piece

1 Piece(Min. Order)

Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Hydraulic Jack	Capacity (Load)	11-20T
Max Height	460mm	Min Height	165mm
Certification	CE, ISO9001:2008	Place of Origin	Jiangsu, China
Brand Name	FEIYAO	Model Number	FY-RRH
Warranty	12 Months

Product Description

Specifications

double acting hollow hydraulic jacks
1.fast retraction
2.CE certificate
3.High quality good price
4.OEM Factory supply

RRH-1006 100tons double acting hollow hydraulic jacks

FEIYAO general purpose cylinders are available in hundreds of different mechanical or hydraulic cylinder jack configurations. Whatever the industrial application; lifting, pushing, pulling and available in range of force capacities, stroke lengths or size restrictions. Single acting, hollow plunger, or low height, you can be sure that FEIYAO has the hydraulic cylinder jack to suit your high force application.

Features

1.Hollow plunger allows for both pull and push forces

2.Relief valves prevent damage in case of over-pressurization

3.Baked enamel finish for increased corrosion resistance

4.Collar threads for easy fixturing (except RRH-1001 and RRH-1508)

5.Double-acting version for fast hydraulic retraction

6.Nickel-plated, floating center tube increases product life

7.CR-400 coupler and dust cap included on all models

8.Plunger wiper reduces contamination, extending cylinder life

Application

Parameter information

Model	Pressure@700bar ton (KN)	Stroke (mm)	Capacity (ton)		Effective area (cm²)		Oil capacity (cm³)		Closed Height A (mm)	Extending Height B (mm)	Out diameterD (mm)	Central hole diameter Y ( mm)	Weight (kg)
Model	Pressure@700bar ton (KN)	Stroke (mm)	Push	Pull	Push	Pull	Push	Pull	Closed Height A (mm)	Extending Height B (mm)	Out diameterD (mm)	Central hole diameter Y ( mm)	Weight (kg)
FY-RRH-307	30(326)	178	30	23.0	46.6	30.4	829	541	330	508	114	33.3	22
FY-RRH-3010	30(326)	257	30	23.0	46.6	30.4	1202	781	432	689	114	33.3	27
FY-RRH-603	60(576)	89	60	41.8	82.2	54.0	733	481	248	337	159	53.8	28
FY-RRH-606		165	60	41.8	82.2	54.0	1366	891	324	489	159	53.8	35
FY-RRH-6010		257	60	41.8	82.2	54.0	2115	1388	438	695	159	53.8	46
FY-RRH-1001	100(931)	38	100	67.7	133.1	87.4	505	332	165	203	213	79.2	39
FY-RRH-1003		76	100	67.7	133.1	87.4	1011	664	254	330	213	79.2	61
FY-RRH-1006		152	100	67.7	133.1	87.4	2035	1328	342	495	213	79.2	79
FY-RRH-10010		257	100	67.7	133.1	87.4	3420	2246	460	718	213	79.2	107
FY-RRH-1508	150(1333)	203	150	76.0	204.1	102.6	4144	2083	349	552	248	79.2	111

Accessories:

♦Seal Kits

♦Standard Couplers

♦Swivel Caps

Brief introduction of FEIYAO

Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.

Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.

Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.

We warmly welcome all overseas customers to talk with us about business or other cooperations.

Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.
