Home > Products > Led power supply-STV Series > High quality CE EMC RoHS 24v 60w dc adapter, waterproof switching mode power supply 24v dc

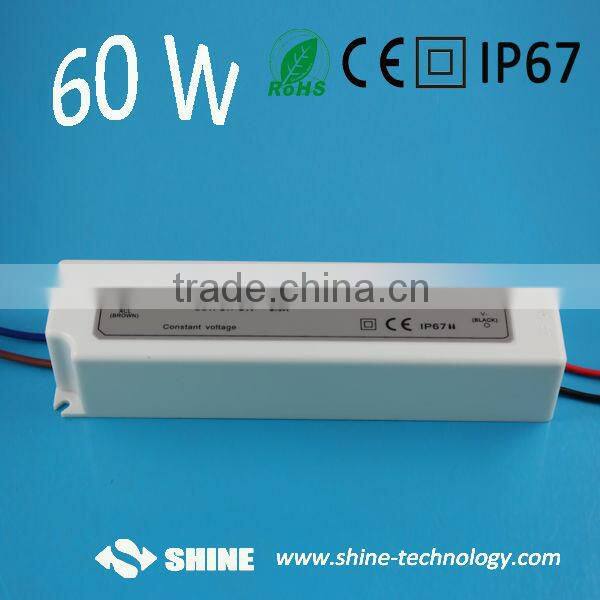

High quality CE EMC RoHS 24v 60w dc adapter, waterproof switching mode power supply 24v dc
- Shenzhen
- T/T Credit Card
You May Like
-
High quality 220v/110v transformer adapter, led switching power supply 12v 60w output
-
12v 12w waterproof led power supply, 220v IP67 led driver, plastic led transformer
-
Mini Size Led Power Supply
-
Constant votage 12v led transformer, led netzteil ip67 waterproof 12w
-
Small and compact size waterproof electronic led driver, 830ma 24v 20w dc output led power supply
-
High quality flat panel led lighting 18w, high brightness 300 300 led panel light, easy install led panel light
Product Details
| Place of Origin | Guangdong, China | Brand Name | shine | |
| Model Number | stv-24-60 | Output Power | Other, 60w, 60w | |
| Output Type | Single | Input Voltage | Other, 100-240v | |
| Output Voltage | 24v, 24v dc | Output Frequency | 47-63hz | |
| Output Current | 2.5a, 2.5a |
Product Description
High quality waterproof led power supply 24v dc 60w IP67, 10 years professional led driver manufacturer, the best quality components, 100% full load 24 hours burn in test, CE RoHS two years warrnty
Features(STV-24-60): | ||
Constant voltage mode power supply | ||
Universal AC input 100-240v ac | ||
Fully encapsulated with IP67 level | ||
Cooling: By Convection | ||
Class II power unit with fully isolated plastic case | ||
Protections: Short Circuit/Over Load/ Over Voltage/Thermal protection | ||
Small and compact size | ||
100% full load burn-in test | ||
Suitable for LED lighting and moving sign applications | ||
Two years warranty | ||
Specifications: | ||
Input | Voltage | 100-240VAC |
Frequency | 47 to 63 Hz | |
Efficiency | 83% | |
Ac current | 0.48A/220VAC | |
Inrush current | Cold start 30A/240VAC | |
Leakage current | 0.25mA/240VAC | |
Output | DC Voltage | 24V |
Rated Current | 2.5A | |
Current Range | 0-2.5A | |
Rated Power | 60W | |
Ripple & noise (Max.) | 150mVp-p | |
Environment | Storage temperature | -40-80 degree |
Operating temperature | -30-50 degree | |
Humidity operating | 20%-90% | |
Humidity storage | 10%-95% | |
Protections | Short Circuit | Auto recovery |
Over-load | 110-150%output rated power, recovers auto | |
Over-voltage | 13.8-16.2V, recovers auto | |
Thermal Protection | ≤85 degree | |
CE | CE Safety Standard | Compliance to EN61347-1:2008&EN 61347-2-13:2006 |
EMI conduction & radiation | Compliance to EN 55015: 2006+A1: 2007 EN 61547: 2004 | |
Harmonic Current | Compliance to EN 61000-3-2: 2006 EN 61000-3-3: 1995+A1: 2001+A2: 2005 | |
Others | Dimension/Weight | 160*42*31mm/410g |
Cable | 30mm | |
Withstand voltage | 3KVAC | |
Packing:

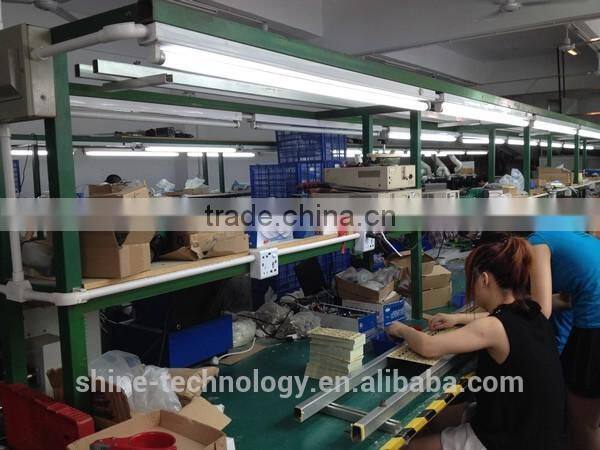

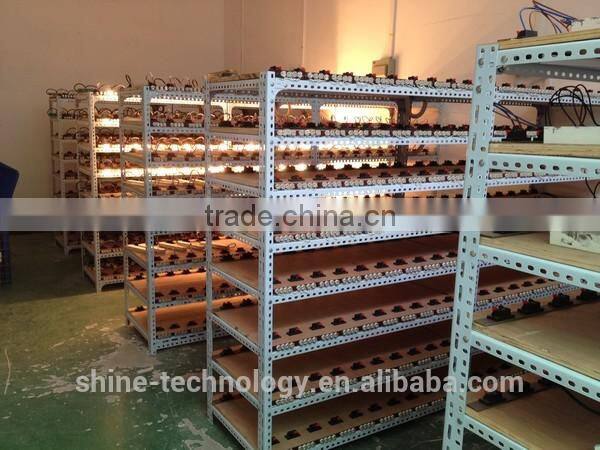

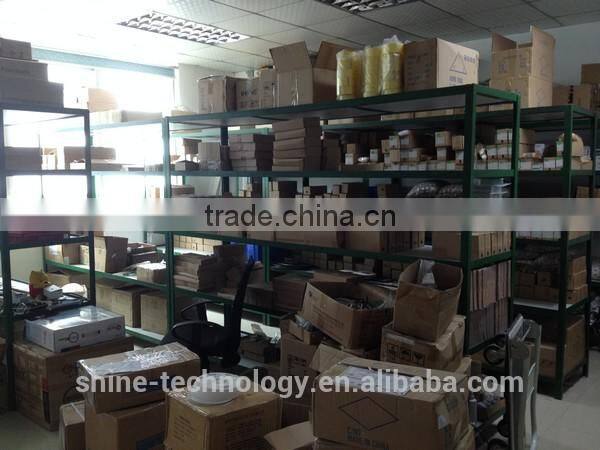

Our Factory:
Certificates:

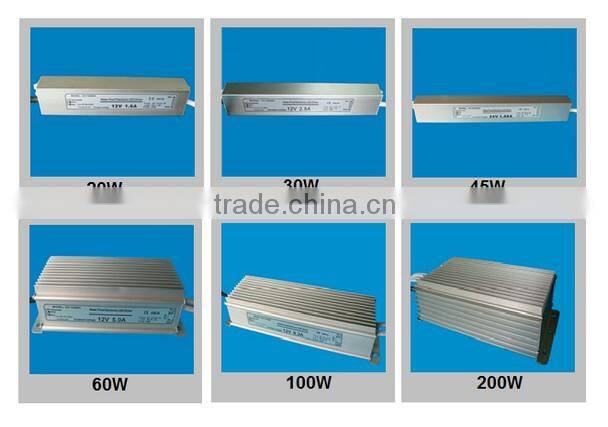

Other series:
Trade terms:
1. T/T West Union, 30% deposit 70% balance before shipment is available for the order upto US$30,000.
2. Lead time: normally in 5-7 workdays after deposit received.
3. Sample policy: Samples are always available for each model. Deliver Immediately once payment received.
4. Shipping port: Shenzhen, China.
5. Discounts: We offer discount for big quantity.
Delivery detail:
We ship samples or small orders by UPS/DHL/FEDEX/TNT express, which takes 3~ 5 days to arrive,
or by air cargo which takes about one week to arrive. Large quantity will be shipped by sea which
takes about one month to arrive, depending on your actual requirements
Our services:
1. For all your inquiries about us or our products, we will reply you in detail within 24 hours.
2. Well-trained and professional sales & after- sale services stuff who can speak fluent English.
3. OEM service is available. Can print your own logo on product, customized the retail box packing.
4. with experienced R&D engineers and strong ability to do ODM projects.
