High quality led driver 220vac / 110vac input, input 120v 60hz electronic transformer

FOB Price

US$ 1 - 9.9 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

High quality led driver 220vac / 110vac input, 12vdc / 24vdc output, CE RoHS with two years warranty

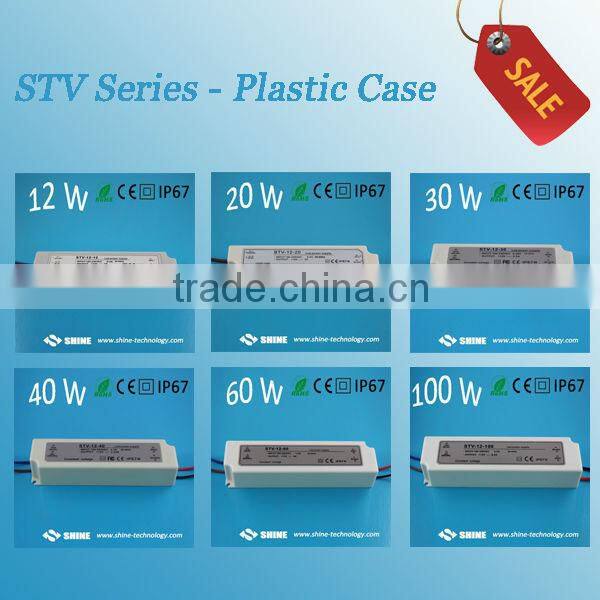

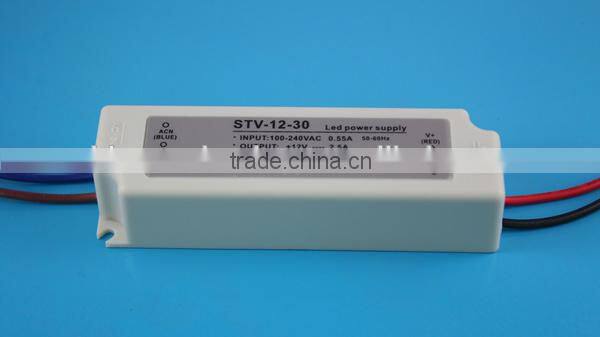

Features(STV-12-30):
constant voltage mode power supply
Universal AC input100-240VAC
Fully encapsulated with IP67 level
Cooling: By Convection
Class II power unit with fully isolated plastic case
Protections: Short Circuit/Over Load/ Over Voltage/Thermal protection
Small and compact size
100% full load burn-in test
Suitable for LED lighting and moving sign applications
Two years warranty
Specifications:
Input	Voltage	100-240VAC
	Frequency	47 to 63 Hz
	Efficiency	80%
	Ac current	0.26A/220VAC
	Inrush current	Cold start 30A/240VAC
	Leakage current	0.25mA/240VAC
Output	DC Voltage	12V
	Rated Current	2.5A
	Current Range	0-2.5A
	Rated Power	30W
	Ripple & noise (Max.)	120mVp-p
Environment	Storage temperature	-40-80 degree
	Operating temperature	-30-50 degree
	Humidity operating	20%-90%
	Humidity storage	10%-95%
Protections	Short Circuit	Auto recovery
	Over-load	110-130%output rated power, recovers auto
	Over-voltage	13.8-16.2V, recovers auto
	Thermal Protection	≤85 degree

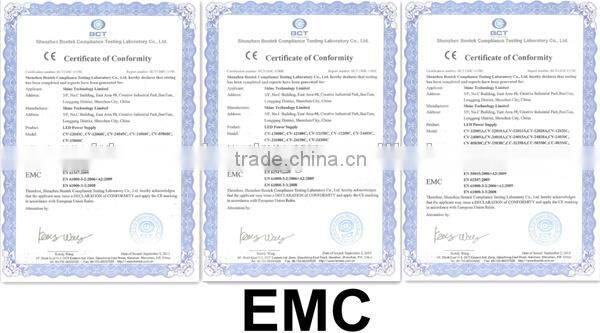

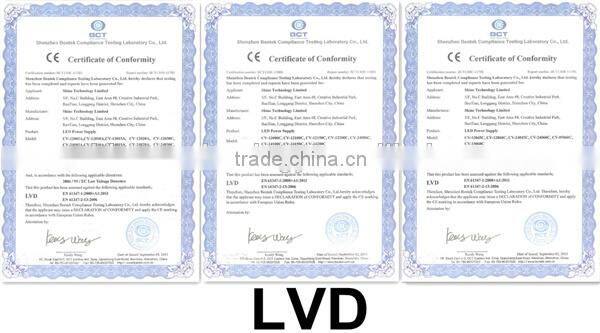

CE	CE Safety Standard	Compliance to EN61347-1:2008&EN 61347-2-13:2006
	EMI conduction & radiation	Compliance to EN 55015: 2006+A1: 2007 EN 61547: 2004
	Harmonic Current	Compliance to EN 61000-3-2: 2006 EN 61000-3-3: 1995+A1: 2001+A2: 2005
Others	Dimension/Weight	1183526mm/230g
	Cable	30mm
	Withstand voltage	3KVAC

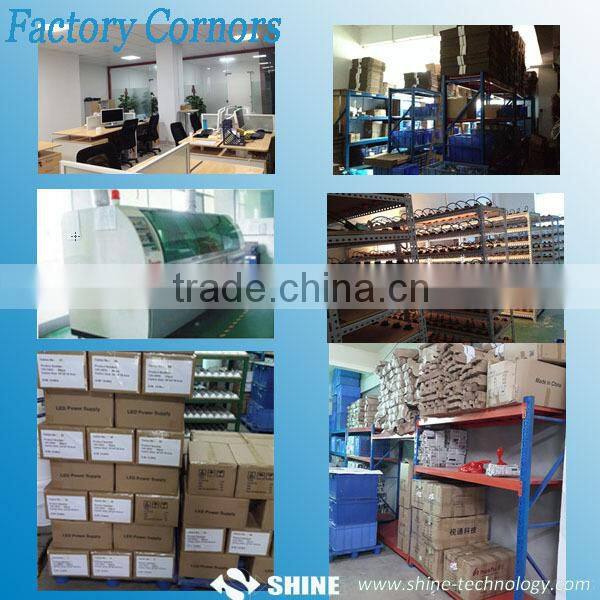

Our Factory:

Trade terms:

1. T/T West Union, 30% deposit 70% balance before shipment is available for the order upto US$30,000.

2. Lead time: normally in 5-7 workdays after deposit received.

3. Sample policy: Samples are always available for each model. Deliver Immediately once payment received.

4. Shipping port: Shenzhen, China.

5. Discounts: We offer discount for big quantity.

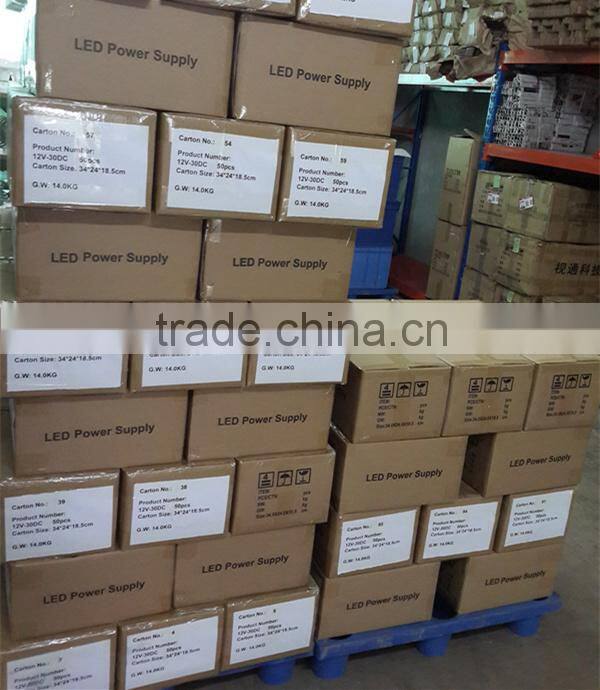

Delivery detail:

We ship samples or small orders by UPS/DHL/FEDEX/TNT express, which takes 3~ 5 days to arrive,

or by air cargo which takes about one week to arrive. Large quantity will be shipped by sea which

takes about one month to arrive, depending on your actual requirements

Our services:

1. For all your inquiries about us or our products, we will reply you in detail within 24 hours.

2. Well-trained and professional sales & after- sale services stuff who can speak fluent English.

3. OEM service is available. Can print your own logo on product, customized the retail box packing.

4. with experienced R&D engineers and strong ability to do ODM projects.
