Home > Products > Led power supply-STV Series > High quality110v 120v 220v 230v input waterproof ip67 dc 12v 3a 36w output long bright led driver power supply transformer

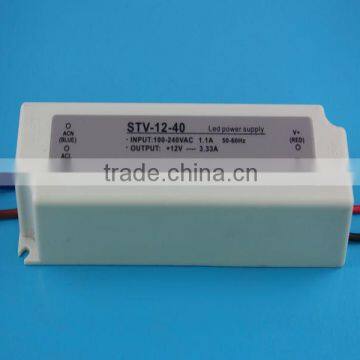

High quality110v 120v 220v 230v input waterproof ip67 dc 12v 3a 36w output long bright led driver power supply transformer
- Shenzhen
- T/T Credit Card
You May Like
-
STV-12-60 High quality waterproof 12v 5a 60w smps slim power supply adapter for led lighting
-
High quality waterproof ip67 ac dc 12v 60w switching power supply lighting converter transformer universal input 100-240v ac
-
High quality waterproof 12v smps power supply adapter for led lighting 5a 60w
-
Ac 110v 220v dc 24v 30w constant voltage waterproof electronic ip67 led switching power supply driver transformer mean well
-
Ac to dc Waterproof ip67 constant voltage led fonte power supply dc 12v 40w 3.3a, 14 years led driver manufacturer
-
High quality CE EMC RoHS waterproof ip67 dc 12v 3a 36w 35w lamp led ic driver es class 2 power supply
Product Details
| Place of Origin | Guangdong, China | Brand Name | SHINE | |
| Model Number | STV-12-36 | Output Power | 1 - 50W | |
| Output Type | Single | Input Voltage | 220V | |
| Output Voltage | 12V | Output Frequency | 47-63hz | |
| Output Current | 3A |
Product Description
High quality 12v 3a 36w led power driver led driver plastic case, 10 years professional led driver manufacturer, the best quality components, 100% full load 24 hours burn in test, CE RoHS two years warranty
Features(STV-12-36): | ||
Constant voltage mode power supply | ||
Universal AC input | ||
Fully encapsulated with IP67 level | ||
Cooling: By Convection | ||
Class II power unit with fully isolated plastic case | ||
Protections: Short Circuit/Over Load/ Over Voltage/Thermal protection | ||
Small and compact size | ||
100% full load burn-in test | ||
Suitable for LED lighting and moving sign applications | ||
Two years warranty | ||
Specifications: | ||
Input | Voltage | 100-240VAC |
Frequency | 47 to 63 Hz | |
Efficiency | 80% | |
Ac current | 0.35A/220VAC | |
Inrush current | Cold start 30A/240VAC | |
Leakage current | 0.25mA/240VAC | |
Output | DC Voltage | 12V |
Rated Current | 3A | |
Current Range | 0-3A | |
Rated Power | 36W | |
Ripple & noise (Max.) | 120mVp-p | |
Environment | Storage temperature | -40-80 degree |
Operating temperature | -30-50 degree | |
Humidity operating | 20%-90% | |
Humidity storage | 10%-95% | |
Protections | Short Circuit | Auto recovery |
Over-load | 110-130%output rated power, recovers auto | |
Over-voltage | 13.8-16.2V, recovers auto | |
Thermal Protection | ≤85 degree | |
CE | CE Safety Standard | Compliance to EN61347-1:2008&EN 61347-2-13:2006 |
EMI conduction & radiation | Compliance to EN 55015: 2006+A1: 2007 EN 61547: 2004 | |
Harmonic Current | Compliance to EN 61000-3-2: 2006 EN 61000-3-3: 1995+A1: 2001+A2: 2005 | |
Others | Dimension/Weight | 147*40*30mm/340g |
Cable | 30mm | |
Withstand voltage | 3KVAC | |
Packing:
Our Factory:
Certificates:
Trade terms:
1. T/T West Union, 30% deposit 70% balance before shipment is available for the order upto US$30,000.
2. Lead time: normally in 5-7 workdays after deposit received.
3. Sample policy: Samples are always available for each model. Deliver Immediately once payment received.
4. Shipping port: Shenzhen, China.
5. Discounts: We offer discount for big quantity.
Delivery detail:
We ship samples or small orders by UPS/DHL/FEDEX/TNT express, which takes 3~ 5 days to arrive,
or by air cargo which takes about one week to arrive. Large quantity will be shipped by sea which
takes about one month to arrive, depending on your actual requirements
Our services:
1. For all your inquiries about us or our products, we will reply you in detail within 24 hours.
2. Well-trained and professional sales & after- sale services stuff who can speak fluent English.
3. OEM service is available. Can print your own logo on product, customized the retail box packing.
4. with experienced R&D engineers and strong ability to do ODM projects.
