Home > Products > Din Rail Power Supplies > High quality 12V 30W DIN Rail power supply driver with 2 years warranty, 2.5a din rail transformer with ce rohs

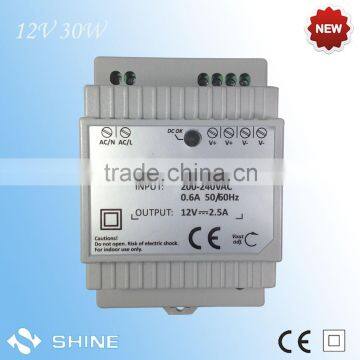

High quality 12V 30W DIN Rail power supply driver with 2 years warranty, 2.5a din rail transformer with ce rohs
- SHENZHEN
- T/T Credit Card PayPal
You May Like
-
CE RoHS Standard power supplies din rail 15w 20w 30w 60w 100w, DIN rail transformers 24v 100w
-
Ce RoHS Approved 24v 2.5a 60w Din Rail Ac/dc Switching Power Supply
-
New & Original 60W single output DIN Rail 12v 5amp power supply
-
Plastic housing AC170-265V output CE ROHS approved(SN-30-24) 30w 24v dc output power supply din rail
-
SN-60-24 power supply 24v plastic box din rail ac/dc transformer 60w with ce&rohs
-
SN-60-12 60w 12v power supply plastic box din rail led transformer with ce&rohs
Product Details
| Place of Origin | Guangdong, China | Brand Name | SHINE | |
| Model Number | SN-30-12 | Output Power | Other, 30W | |
| Output Type | Single | Input Voltage | Other, 170-265V | |
| Output Voltage | DC 12V | Output Frequency | NONE | |
| Output Current | 2.5A |
Product Description
Welcome to Shine Technology
♦ Isolation Class II
♦ Protection: Short circuit,Overload,Over voltage
♦ Cooling by free air convection
♦ Can be installed on DIN rail TS-35/7.5 or 15
♦ LED indicator for power on
♦ 100% full load burn-in test
♦ 2 years warranty
Product Specification
Model | SN-30-12 | SN-30-24 | |
Output | DC Voltage | 12V | 24V |
Rated Current | 2.5A | 1.5A | |
Current Range | 0~2.5A | 0~1.5A | |
Rated Power | 30W | 30W | |
Ripple&Noise | 120 mVp-p | 150 mVp-p | |
Voltage Adj.Range | 10.8-13.6V | 21.6-29.0V | |
Hold Up Time | 100ms/230VAC | ||
Set up,Rise time | 500ms, 20ms / 230VAC | ||
Input | Voltage Range | 170-265 VAC 47~63Hz | |
Efficiency | 85% | 85% | |
Ac Current | 0.27A/230VAC | ||
Inrush Current | Cold Start <20A at 230VAC | ||
Protection | Over Current | 110~160% rated output power | |
Protection Type | Constant current limiting, recovers automatically after fault condition is removed | ||
Over Voltage | Hiccup mode, recovers automatically after fault condition is removed | ||
Environment | WorkingTemp&Humidity | -20-60°C 20-90% RH | |
StorageTemp&Humidity | -40-80°C 10-90%RH | ||
Safety&EMC | Safety Standards | Design Refer to: EN60950 | |
Withstand Voltage | I/P-O/P:3KVAC | ||
Isolation Resistance | I/P-O/P:>100M Ohms / 500VDC | ||
EMC Emission | Compliance to EN55022 , EN61000-3-2 , | ||
EMC Immunity | Compliance to EN55024, EN61000-3-3, | ||
Others | Dimension | 63*97*56mm (W*H*D) | |
Packing | 0.21kg/pcs 50pcs/11kg/ctn | ||
• Mechanical Specification
• Dimension
Packaging & Shipping
Note: We ship samples or small orders by UPS/DHL/FEDEX/TNT express, which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive. Large quantity will be shipped by sea which takes about one month to arrive, depending on your actual requirements.
