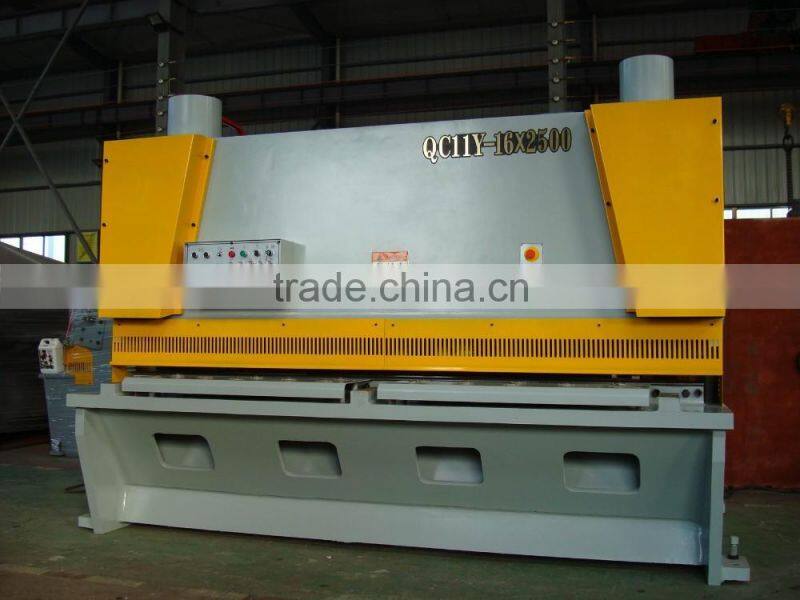

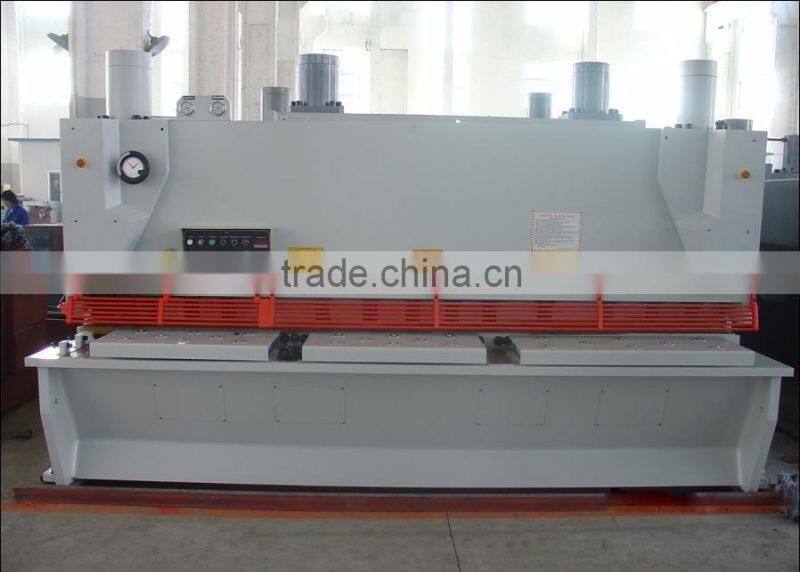

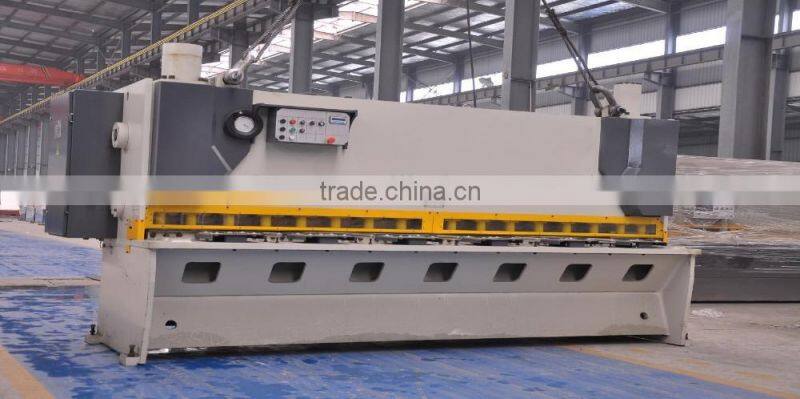

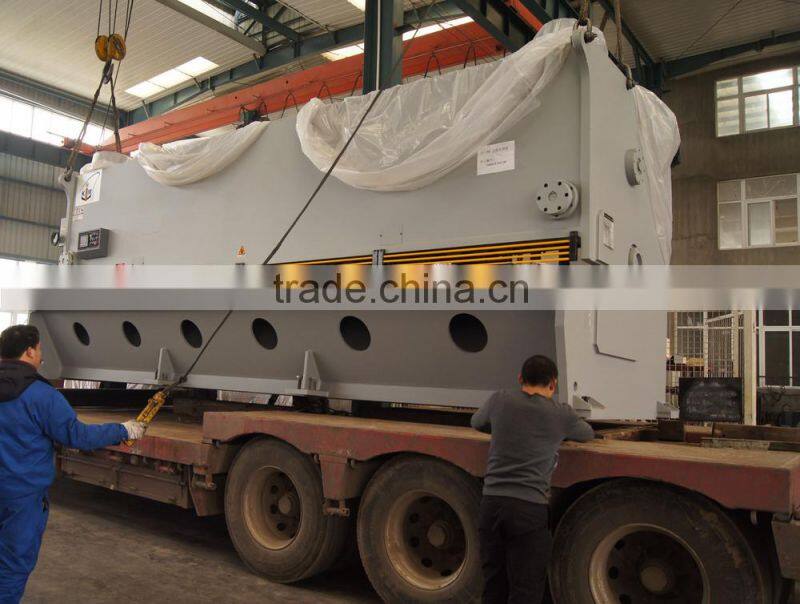

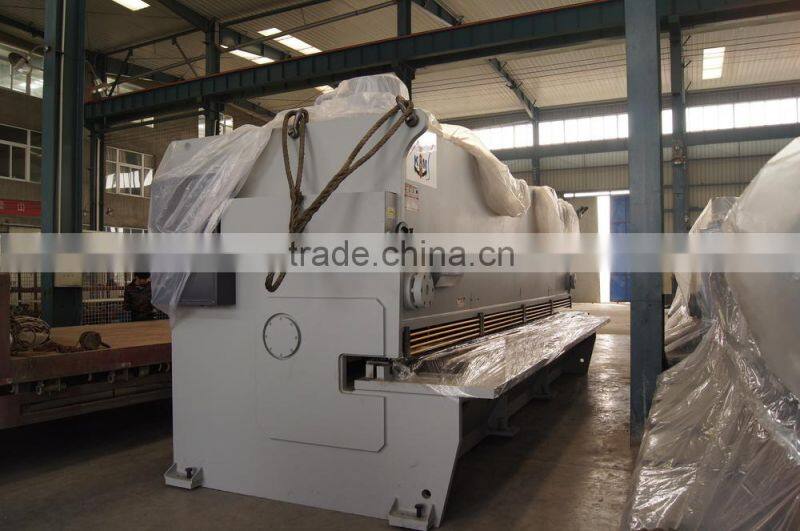

QC11Y Guillotine Cutting Machine,press Brake Shear Machine

1.Frame structure

Designed under LVD technology

Full steel structure, stress released, with accuracy well kept.

Main component is designed and Finite Element Analyzed through ANSYS software.

Main frame composes of uprights, working table, holding-down beam and oil tank.

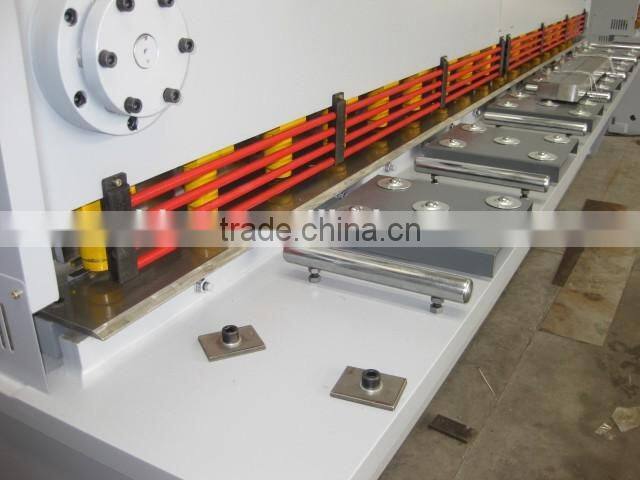

Ball transporter and supporting bar and squaring arm are fixed on working table.

2.Upper blade beam and blades

Guillotine type blade beam, with rake angle adjustable

The rake angle could be motorized adjusted by press button according to material and thickness.

When shearing thin thickness sheet, the rake angle could be reduced, thus the distortion of the product and the burr could be minimized.

Exchangeable Rectangle blade, with 4 cutting edges available.

Blade material 6CrW2Si with hardness HRC53-60, with quality shearing result and long life.

3. Shearing length/stroke adjustment

The shearing stroke could be adjusted through knob to the length of the product. Thus efficiency could be improved.

4. Cutting beam guiding and blade clearance

The cutting beam is guided between roller guides. At the rear of the cutting beam there are two sets of upper and lower roller guides located at each end of the beam.

Two spring-loaded rollers located at the front of the shear apply pressure to the cutting beam, forcing it against the back roller guides.

The bearings of the upper roller guides at the back of the cutting beam are mounted on an eccentric shaft. Rotating this shaft causes the cutting beam to tilt, thus providing proper blade clearance to the shearing blades.

The upper cutting beam inclined forward, with high section-cutting quality on the product.

The blades clearance could be adjusted manually through hand-wheel according to material and thickness.

Since the blade clearance is 0.1 to 2.5 mm, the shear can cut thickness 1mm to 40mm mild steel.

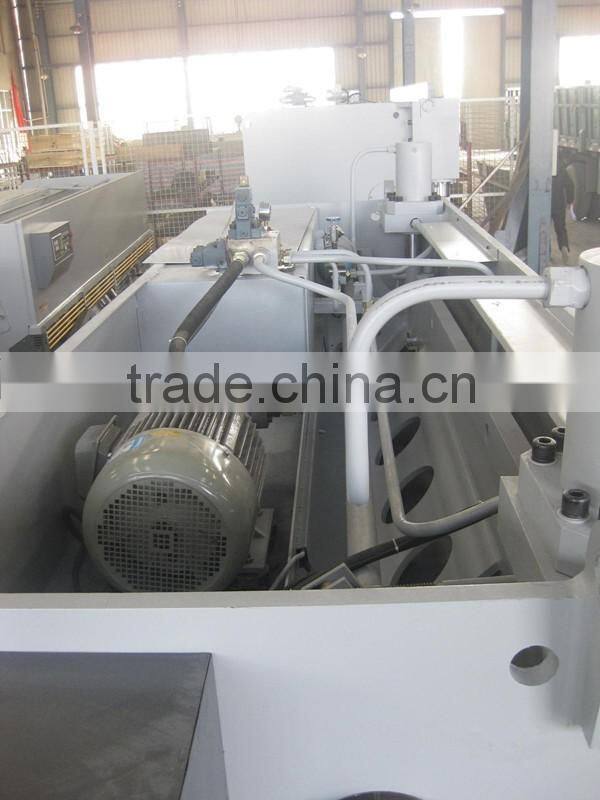

5. Hydraulic system

LVD special hydraulic unit for heavy type shear is adopted.

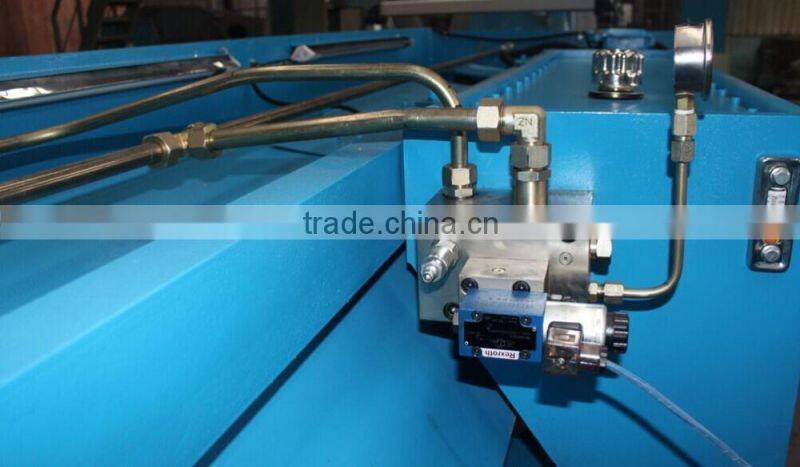

Hydraulic control components is from VICKERS,USA  (or REXROTH, Germany)

With in-series cylinders to achieve good synchronization.

The sheet is pressed by hold-down before shearing and during shearing for safety and reliability.

One-time machining on CNC lathe for cylinder body and piston rod. Horning for inner surface of cylinder, vibration super-fine machining on the outer surface of the piston rod.

Oil seals from NOK, Japan (or Merkel, Germany) with low wear and tear, no oil leakage.

High-pressure internal gear pump, with reliability and low noise.

Over-load protection for hydraulic system

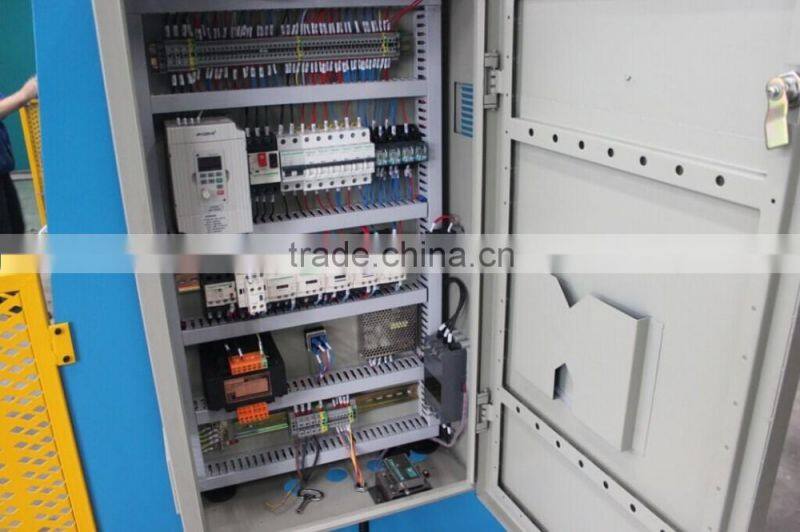

6. Electrical system

Movable remote operation station with emergency stop.

Main electrical components(contactor, button and switch) adopt product from TELEMECANIQUE from France.

Requirement on working condition:

Working temperature: -10 to 47

Power supply: 380V±5%, 50HZ, 3 Phase

7. Shadow line lighting

It is clear with shadow line lighting for a close and accurate view of the cutting line.

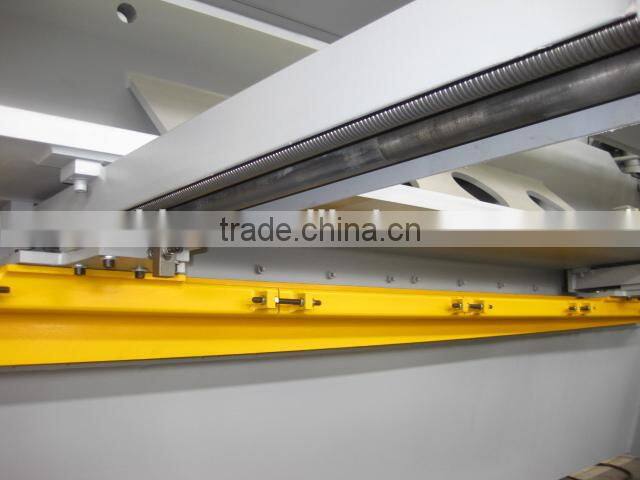

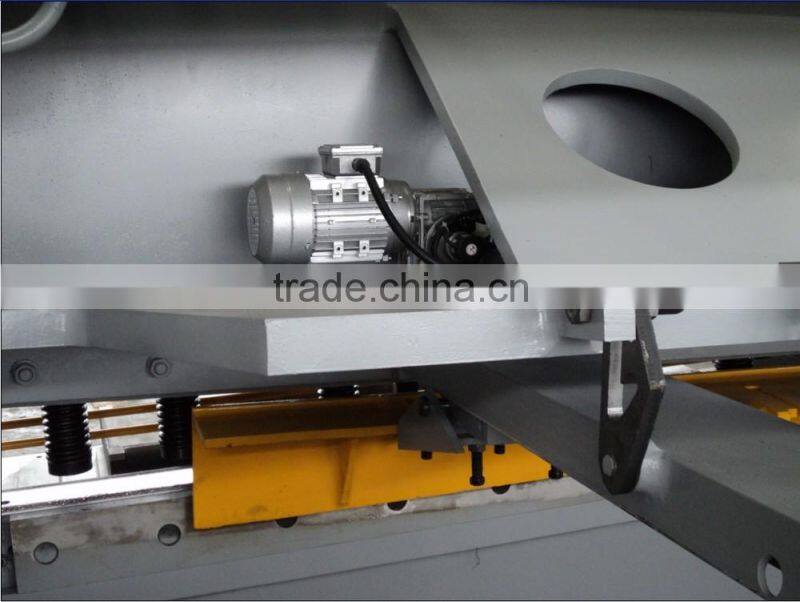

8. Motorized Back gauge

The back gauge is driven by lead screw and normal motor. With electrical display, with stroke 1000mm.

9. Safety device

Fence guard and protection switch for preventing finger being cut.

Movable remote foot pedal with emergency stop

10. Key parts on shear

11.CNC controller:DAC310 and DAC360,DELEM ,Holand,etc.
