Fiberglass geogrid for Reinforcement
- Qingdao port China
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Luyuan | |
| Model Number | TGS-D-20-20 | Material | Fiberglass |
Product Description
Fiberglass geogrid
Fiberglass geogrid is a kind of new favorable earthwork base material to strengthen the road surface and roadbed. This product is knitted by fiberglass filaments and coated with an inorganic sizing agent.
Features:
1.High tensile strength in warp and weft directions
2.Low Elongation
3.High flexibility
4.High and low temperature resistance
Application
This product is used to strengthen the soft land,such as railway,airport,irrigation work,and dyke,roadbed,and softland loading capacity strengthen.
Specification | EGA 30-30 | EGA 50-50 | EGA 80-80 | EGA 100-100 | EGA 120-120 | EGA 150-150 | EGA 200-200 | EGA 300-300 | |
Mesh size(mm) | 25.4×25.4 or 12.5×12.5 or 50.8×50.8 | ||||||||
Breaking strength≥(kN/m) | Warp direction | 30 | 50 | 80 | 100 | 120 | 150 | 200 | 300 |
Across warp | 30 | 50 | 80 | 100 | 120 | 150 | 200 | 300 | |
Elongation at break≤(%) | Warp direction | 4 | |||||||
Across warp | 4 | ||||||||
Thermal tolerance(℃) | -100~280 | ||||||||
Width≤(m) | 6 | ||||||||

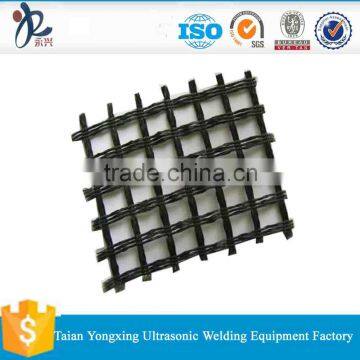

Product photo:
