lab powerful planetary mixer

FOB Price

US$ 20,000 - 150,000 / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Automatic Grade	Automatic
Type	Other, PLANETARY MIXER	Place of Origin	Shanghai, China
Brand Name	BOM	Model Number	BMXJ
Voltage	Equipment Requirement	Power(W)	0.75KW-75KW
Dimension(LWH)	Machine Capacity	Weight	200kg ~ 7500kg
Certification	ISO	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

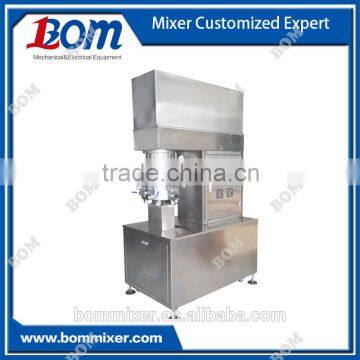

lab powerful planetary mixer

Lab Powerful Planetary Mixer is a customized mixing equipment designed for universities,research institute and factory lab.The machine consists of low speed agitator, high speed disperser,scraper and temperature measure probe, has good mixing, reacting, dispersing, dissolving effects, especially suitable for the dispersing and mixing of solid-liquid, liquid-liquid phase.

Production Capacity: 1-10L

Materials Viscosity: ≤1,500,000 cps

Application Industry: Suitable for mixing materials in industries such as lithium battery slurry,sealant, silicone, adhesive, ink,food,medicine,cosmetic,new energy ,etc

Applicable Materials: Solid-liquid,liquid-liquid phase dispersing and mixing, viscosity less than 1,500,000 cps,solid content under 90%.

technical paratemer :

Model	BMXJ-2	BMXJ-5	BMXJ-8	BMXJ-12
Design volume(L)	2	5	8	12
working volume(L)	1.6	4	5	8
mxing Power (KW)	0.75	1.5	1.5	2.2
REVOLVING SPEED (RPM)	0-65	0-65	0-65	0-65
Rotating speed(RPM)	0-170	0-170	0-170	0-170
Scraper Speed(RPM)	0-65	0-65	0-65	0-35
Dispersing power (KW)	0.75	1.1	1.5	2.2
Dispersing speed(RPM)	0-3000	0-3000	0-3000	0-3000
Hydraulic power(KW)	0.75	0.75	0.75	0.75
Lifting way	hydraulic lifting
lifting time(s)	10-20s can be adjustable
lifting stoke(mm)	300	350	400	400
vacuum power(KW)	1.5	1.5	2.2	2.2
Vacuum degree(MPA)
heating way	internal electrical rot or external water-bath (oil bath )system
cooling way	natural cooling or external ciculating water system
temperature measurement	material direct contacting or jacket measurement
temperature error
control way	push button or PLC control
working voltage	380V-480V/50-60HZ/3P
material	Contacting material part SUL304 or SUL 316 Stainless steel
Remark: 1:the capality in the list is based on the material viscosity 200,000cps ,the model should be based on the data such as materials viscosity mcharacteristic etc 2:the list can not contain all of our products,pls contact with our sales engieer for more information

Product categories

About BOM

Our Services

Warranty

We ensure one year warranty,life-long service and provides technical support , within the warranty period, we provide repair services for free.After the warranty period, we only charge cost of the required materials.

With continuous innovation and upgrading of BOM products, if the performance of the machine you bought can not meet your requirements after years of service, we can provide upgrading service at charge of cost price only.

Spare Parts

We have big warehouse of spare parts.The charge of spare parts in our company will only charge the cost price.

Installation and Maintenance

To single equipment,when the machine are ready,we will provide free test service for the machine in our factory.We will introduce the functions,features,operation and maintenance etc in detail to customers. And we will also provide detailed Product Manual for customers o use the machine easily.

To the complete line equipment,after the equipment arrive at the site, we will send a professional engineering service team to be responsible for overall project installation,commissioning and training (include system operation and equipment maintenance etc) . We will not leave the site until the user can do all the operation on their own smoothly without any problems.

FAQ

Which payment term can we accept?

T/T or L/C ,

1. On T/T term,30% deposit payment is required in advance, 70%balance payment T/T before shipment

2. On L/C term,100% irrevocable L/C at sight ,without ‘soft clauses’ can be accepted.

How long will the price be valid?

The price valid time is 90 days, we only adjust our price based on two situations:

1. The rate of USD:RMB varies significantly

2. The cost of the machine, because of the increasing labor cost and raw material cost.

What logistics way we can work for shipment?

Normally, the shipment will go by sea, if buyers have other requirements ,we will do the shipment according customer’s requirement
