24v 12v dc gear motor electric awning tubular motor Quality Choice
US$ 1 - 50
/ Piece
1 Piece(Min. Order)
- shenzhen
- Credit Card
You May Like
-
Low noise micro coreless motor 12v dc geared motor reversible
-
High torque 24 volt dc motor venetian blind motor
-
6w small electric motors high torque power window motor
-
22mm 24v small high power electric motor household appliances dc motor
-
16mm Micro Small DC Gear Motor Low Speed High Torque
-
Robotic 35mm Carbon Brush DC Coreless Motor
Product Details
| Place of Origin | Guangdong, China | Brand Name | TOPBAND | |
| Model Number | CL2244 | Usage | Other, tattoo machine,nail printer | |
| Certification | CE, ROHS | Type | Other, Micro Motor, gear motor | |
| Torque | 9.8 mNm | Construction | Permanent Magnet | |
| Commutation | Brush | Protect Feature | Waterproof | |
| Speed(RPM) | 6500rpm no load speed | Continuous Current(A) | 290 mA | |
| Output Power | 6 W | Voltage(V) | 24 V | |
| Efficiency | Other, 80% |
Product Description
24v 12v dc gear motor electric awning tubular motor

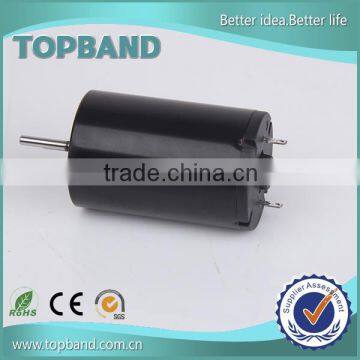

electric awning tubular motor picture
electric awning tubular motor data
| CL2244 | UNIT | ’001 | ‘002 | ’003 |
| Nominal voltage | V/DC | 24 | 12 | 24 |
| No load speed | rpm | 5500 | 5400 | 6500 |
| Rated speed | rpm | 4360 | 4200 | 5800 |
| No load current | mA | 10 | 35 | 15 |
| Rated current | mA | 390 | 750 | 290 |
| Rated torque | mNm | 14.7 | 14.7 | 9.8 |
| Stall current | A | 1.9 | 3.3 | 2.5 |
| Stall torque | mNm | 70.8 | 66.2 | 91.0 |
| Max. efficiency | % | 78 | 82 | 79 |
| Terminal resistance | Ω | 13.5 | 3.6 | 9.5 |
| Torque constant | mNm/A | 37.3 | 20.1 | 36.4 |
| Speed constant | rpm/V | 229 | 450 | 271 |
| Weight | g | 70 | 70 | 70 |
structure chart
Application Show
Company Introduction
Shenzhen Topband Co., Ltd. is one of the biggest company to do the DC Motor and
Controller in China,Which is established in 1996. Motor division is focusing on coreless
motor, general BLDC motor,brushless motor and brushless dc motor controller.
Topband was listed in Shenzhen stock change on July 2007,became the first listed
company in intellectual control in China, the stock code 002139.
