Home > Products > BLDC motor > 60mm 70w electrical high rpm dc motor for electric vehicle
60mm 70w electrical high rpm dc motor for electric vehicle
- 15000 Piece / Pieces per Month
- shenzhen
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | topband | |
Model Number | BL6060 | Usage | Other, centrifuge machine, electric scooter, electric skateboard | |
Certification | CE, ROHS | Type | Micro Motor | |
Torque | 0.3N.m | Construction | Permanent Magnet | |
Commutation | Brushless | Protect Feature | Waterproof | |
Speed(RPM) | 8000 | Continuous Current(A) | 2.5 | |
Output Power | 60W | Voltage(V) | 48v | |
Efficiency | IE 2 |
Product Description
60mm 70w electrical BLDC motor high rpm motor for sewing machine
1.60mm 70w electrical BLDC motor high rpm motor for sewing machine
2.Imported high quality bearings
3.Customized design, variable choices
4.High reliability and competitive price
5.Big factory, complete quality control system

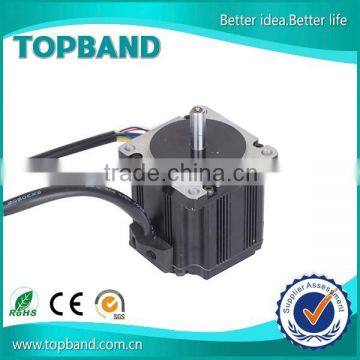

high rpm motor for sewing machine picture
high rpm motor for sewing machine data
BL6060 | UNIT | ’001 | ‘002 | ’003 |
Rated voltage | V/DC | 24 | 24 | 48 |
Rated speed | RPM | 3100 | 10000 | 7300 |
No load speed | RPM | 3600 | 11000 | 8000 |
No load current | A | 0.5 | 2.4 | 0.65 |
Rated current | A | 3.5 | 5.3 | 2.3 |
Rated torque | mNm | 200 | 60 | 97 |
Max efficiency | % | 75 | 65 | 77 |
Resistance phase to phase | OHM | 0.49 | 0.12 | 0.65 |
Torque constant | mNm/A | 63 | 20 | 57 |
Speed constant | rpm/V | 150 | 458 | 165 |
Structure Chart
Application Show
Company Introduction
Shenzhen Topband Co., Ltd. is one of the biggest company to do the DC Motor and Controller in China, which is established in 1996. Motor division is focusing on coreless motor, general BLDC motor,brushless motor and brushless dc motor controller.Topband was listed in Shenzhen stock change on July 2007, became the first listed company in intellectual control in China, the stock code 002139.
Our company has passed HSPM QC080000, ISO14001:2004, ISO9001:2000, and OHSAS28001:2001 system authentication and continues to strive for constant improvement in innovation and quality.
We accpet OEM and provide ODM services. Welcome to visit our factory, you will be impressed.
Why topband
1.More competitive price compared with same level products overseas;
2.Standard components,flexible combination, which has widely applications;
3.Providing system integration solutions;
4.Shorter delivery time and flexible production arrangements;
5.Customized design and production is welcomed;
