2 Phase DSP Stepper Motor Driver YKD2204M for CNC Router
- Shenzhen China
- T/T Credit Card
You May Like
-
2 Phase Digital Stepper Driver YKD2204M
-
YKD2204M DC18-36V 2 Phase YAKO Brand DSP Stepper Driver
-
2 Phase YAKO Brand DSP Stepper Driver YKD2204M
-
2 Phase DC18-36-50V YAKO Brand Digital Stepper Driver YKD2204M
-
2 Phase YAKO Brand Digital Stepper Driver YKD2204M
-
DC18-36V 2 Phase Digital Stepper Driver YKD2204M
Product Details
| Place of Origin | Guangdong, China | Brand Name | YAKO | |
| Model Number | YKD2204M | Motor Type | Stepper Motor |
Product Description
2 Phase Digital Stepper Motor Driver YKD2204M
Features:
1. New 32 bit DSP technology, high performance, good stability, low noise and low vibration;
2. 4 classes of microstep, max 32 microstep;
3. Smooth and precise current control, low motor heat;
4. Max pulse response frequency is 100 KHz;
5. If the pause time of stepper pulse is over 200ms, the motor current will be half;
6. Perfect stability under low frequency and small subdivision;
7. Photoelectric isolation differential signal input, strong anti-interference ability;

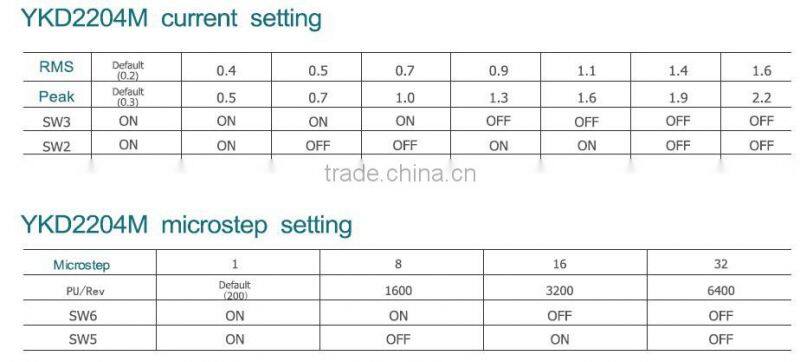

8. The current under 2.2A can be adjusted;
9. Voltage: DC18-36V;
10. Over-voltage, under-voltage protection;
11. Dimension: 86*55*21mm

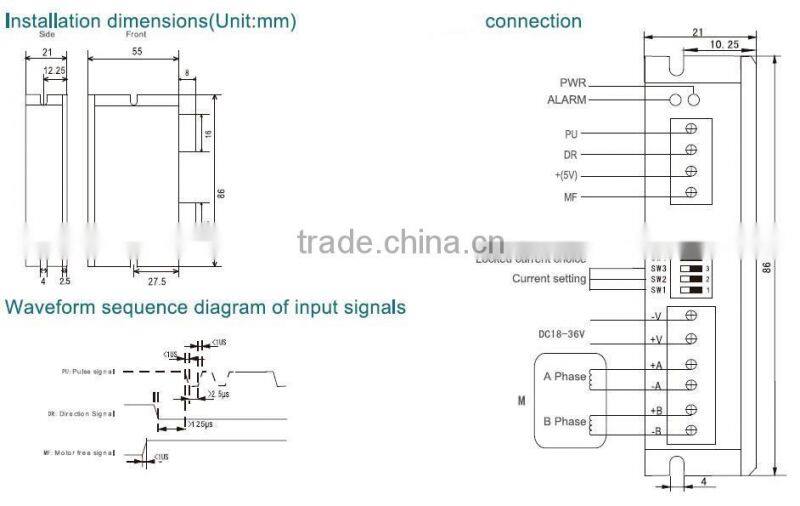

Connection:
Applications:
Mainly applied in medical equipments, dispensing machines, engraving machines, laser equipments, etc.
Company profile:
YAKO is found at 2006, specialized in R&D and producing stepper drivers& motors, servo drivers& motors and motion controller/cards. All YAKO products have CE certification, and we can apply other certifications according to your requirements. OEM & ODM are available.
Contact Us
- Shenzhen YAKO Automation Technology Co., Ltd.
- Contact nameJoy Tang Chat Now
- Phone86-755-26037414
- Address4/F,No. 39, Keji C. Rd,2nd, Hi-tech Industrial Zone, Nanshan District, Shenzhen, Shenzhen, Guangdong
