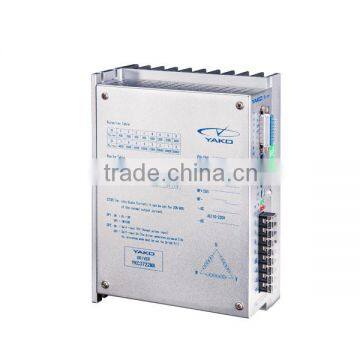

3 Phases Stepper Motor Drive YKC3722MA

FOB Price

US$ 10 - 400 / Piece

1 Piece(Min. Order)

Port Shenzhen China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	YAKO
Model Number	YKC3722MA		Motor Type	Stepper Motor

Product Description

Description:

1. High performance, low price;

2. Provides 16 kinds of microstep selection,resolution can be set to 60000pulse/rev.

3. Once the pulse stops for 100ms,the phase current will automatically reduce to 20%-80%(It can be set by STOP/Im as show as below).

3. Bipolar constant current chopper control.

4. Photocoupler isolated input/output.

5. Adjustable drive current divided into 16 grades range from 0.7A/phase-7A/phase.

6. Single power input, voltage range from AC110V-220V.

7. The upmost pulse response frequence amounts to 200Kpps.

8. Phase memorize(Notes:Once the pulse stops for 5s or more,the Driver will memorize current phases automatically so that it can be resume after restart or MF signal changes from valid to invalid.)

9. Protection circuitOverheat protection;Overcurrent, under voltage protection.

10. Dimension: 80x156x200mm3;Net Weight:2.3Kgs.

Applications:

Company Profile:

YAKO is setted up at 2006, specialized in R&D and producing steper drivers& motors, servo drivers& motors and motion controller/cards. All YAKO products have CE certification, and we can apply other certifications according to your requirements. OEM & ODM are available.
