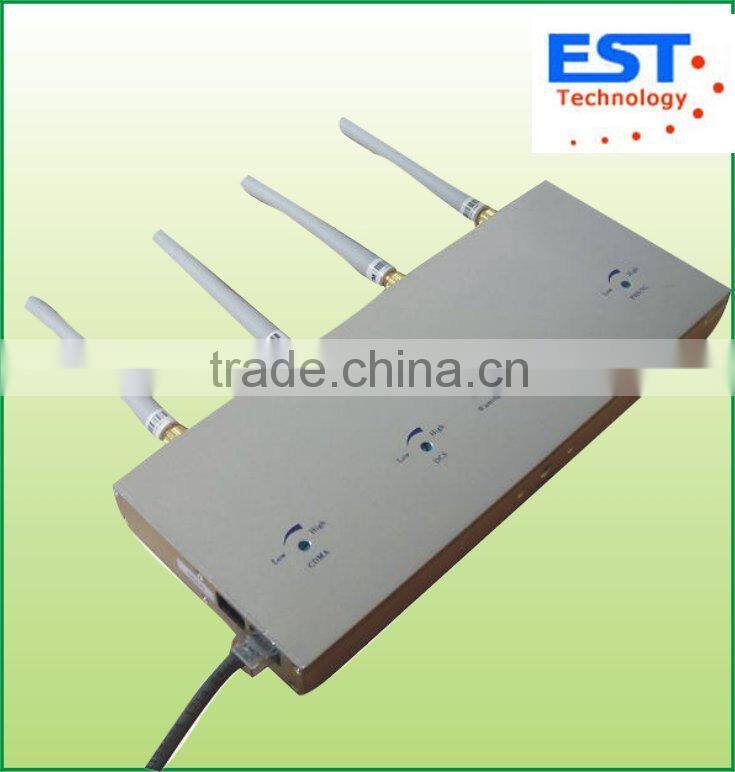

EST-101A Alarm Mobile Phone Signal Detector

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	EST
Model Number	EST-101A

EST-101A alarm mobile phone signal detector
1.detector ranng:20m
2.CE certificate is approved
3.Antenna : Plastic antennas

EST-101A alarm mobile phone signal detector
technical parameters

TX Frequency

Output port	Frequency	Average out-putting power	Channel out-putting power
CDMA	824MHz-849MHz	30dBm	3dBm/30KHz(min)
GSM	890MHz-915MHz	30dBm	3dBm/30KHz(min)
DCS	1710MHz-1785MHz	30dBm	3dBm/30KHz(min)
PHS/3G	1920MHz-1980MHz	30dBm	3dBm/30KHz(min)
Power supply: AC adapter (AC220V-DC5V) Semidiameter of interception:5-20 m
Power consume:2W wight:800g Dimension: 230(L) ×95(W) × 20(H)mm

Jamming range of the signal detector : 5-20M (It still depends on the strength signal in given area)

The green light on means the main system work well, the red light on shows that the RF inspecting system works well.

When the detector is working, the TTL signal and RS-485 communication signal are output by the system.

Sentivity of the signal detector : Adjusted knobs, independent frequency.

Caboodle Management : coding orientation

Temperature : -40°C~ 55°C

Receiving Antenna : Plastic antennas

Working Voltage : Input AC 110V ~ 240V 50/60 Hz

Output DC 5V 2A

Dimension : 230*85*30mm

Working Time : It can work stably for a long time

Environment Temperature : -20°C ~ 65°C

Relative humility : 30% ~ 70%
