Home > Products > PM Synchronous Gear Motors > 220V 70mm Worm Gear Reducer
220V 70mm Worm Gear Reducer
US$ 50 - 300
/ Piece
1 Piece(Min. Order)
- Shanghai
- T/T
You May Like
Product Details
| Brand Name | SOK MOTOR- Worm gear reducer | Model Number | 70TYJ060S4-2W25- Worm gear reducer | |
| Type | Synchronous Motor | Frequency | 50Hz | |
| Protect Feature | Drip-proof | Phase | Three-phase | |
| Certification | CCC, CE, ROHS, Other, CCC, CE, ROHS, BV | AC Voltage | Other, 220V | |
| Place of Origin | Jiangsu, China |
Product Description
Product Description
Description of worm gear reducer
Permanent magnet synchronous worm motor consists of permanent magnet synchronous motor and a high accuracy and reliable worm reduction box.The output axis is perpendicular to axis of the motor.They features great reduction ratio,smooth operating,low noise,long life,great output torque and great load inertia capability.
The motors can be used with SOK SV02-D4 frequency controller,the stepless adjustable speed requirement can be obtained.
The motors can be used with SOK SV02-D4 frequency controller,the stepless adjustable speed requirement can be obtained.
Typical application of worm gear reducer
Auto-production line
Textile machines
Electric gate-barrier motors system
Valve control actuator
Packaging machines
Ambient condition
Ambient condition of worm gear reducer
1.Temperature:-25℃~ +40℃;
2.Relative humidity:90%~ 95%;
3.Atmospheric pressure :74.8KPa(2500m);
4.Vibration:10~55Hz,double amplitude 1.5mm;
5.Impact: 150m/s2
Specifications

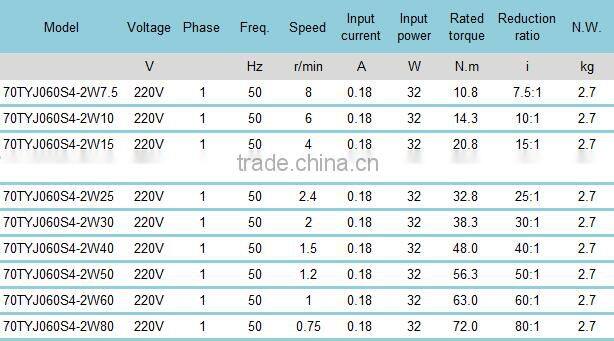

Electric motor parameter of worm gear reducer
Note: The typical specifications below are just for your reference. Motors’ voltage ,frequency, speed , torque, reduction ratio, outline dimension and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

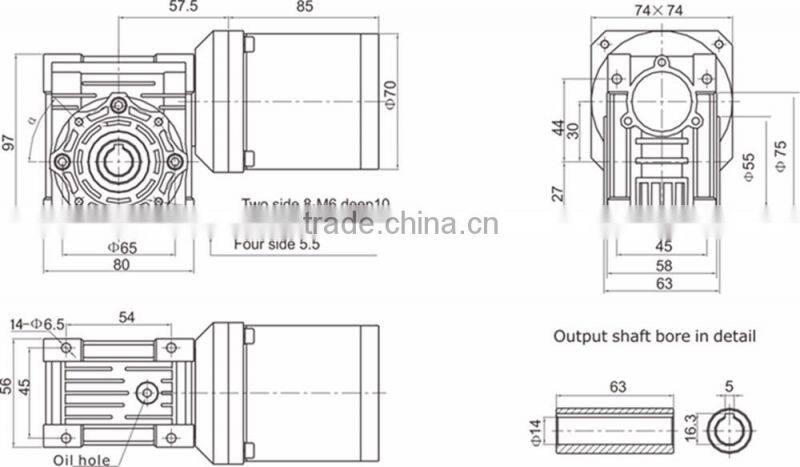

Outline drawing
Dimension of worm gear reducer

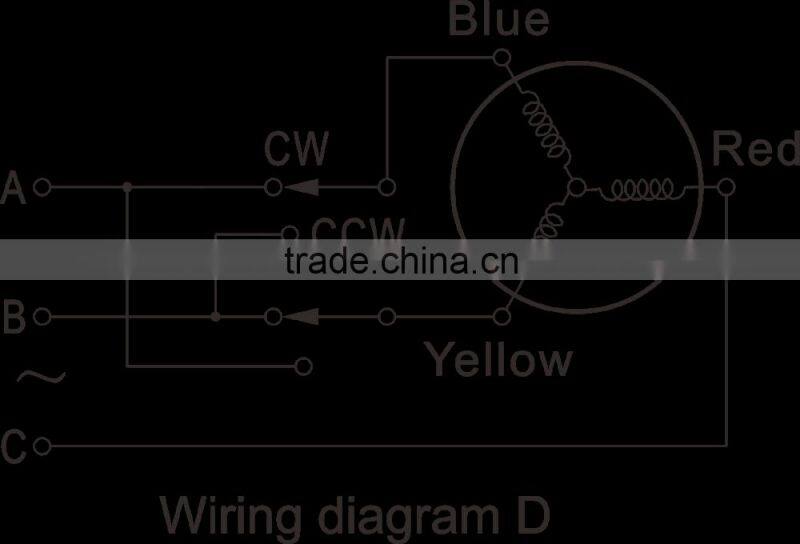

Wiring diagram
Our service

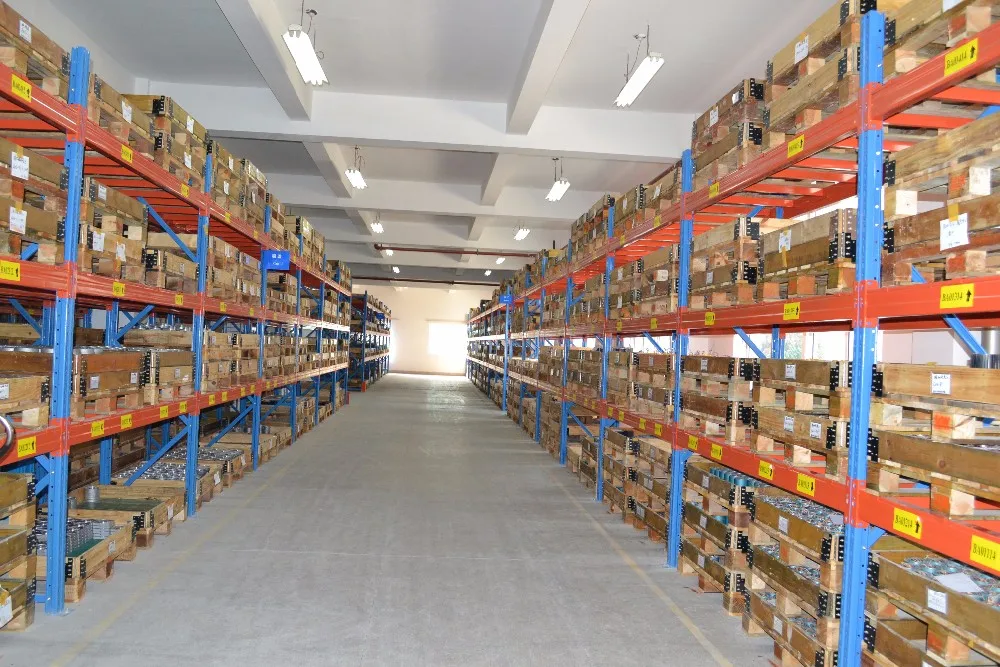

Our Company

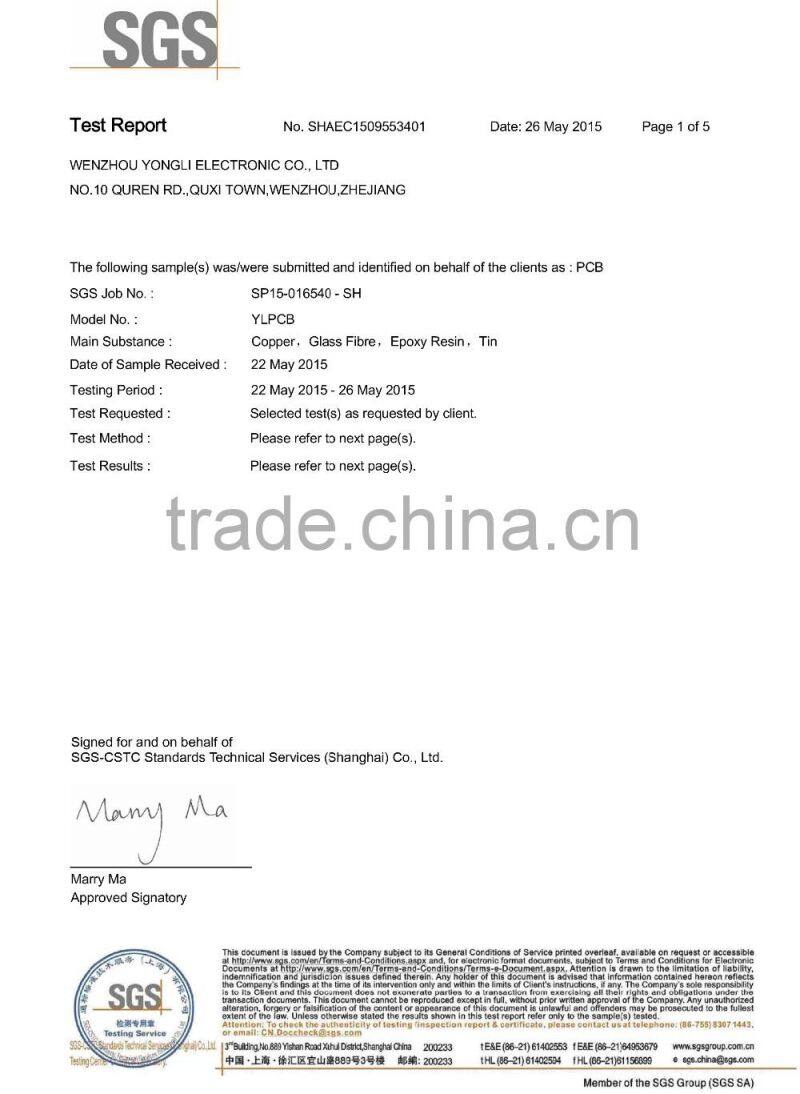

Certifications
