Electric Cable Hoist

FOB Price

Negotiable / Set

10 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	shuangge 51 peace bird	Model Number	HH-B
Usage	Construction Hoist	Power Source	Electric
Sling Type	Chain	Maximum Lifting Weight	1 TON
Maximum Lifting Height	3M	Lift Speed	7M/MIN
Certification	CE TUV	Warranty	1 YEAR
After-sales Service Provided	Overseas service center available

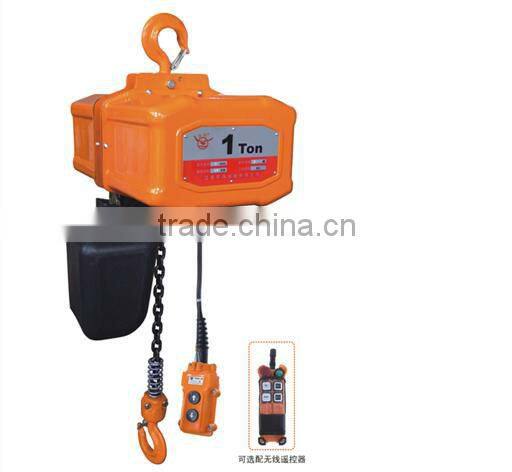

electric cable hoist

Specifications
Model		HH-B025	HH-B05	HH-B10	HH-B20	HH-B30	HH-B30S	HH-B50	HH-B100
Capacity(t)		0.25	0.5	1	2	3	3	5	10
Standard lift(m)		3	3	3	3	3	3	3	3
Lifting speed(m/min)		8	7	7	3.5	2.3	4	2.6	2.6
Motor power(Kw)		0.45	0.8	1.6	1.6	1.6	3.0	3.0	2×3.0
Power supply		3-Phase/380V 50HZ
Control voltage(V)		24V
Insulation grade		F
Rating		40%
Spec. of load chain		5×15	7.1×21				9×27
No. of chain		1	1	1	2	3	2	3	6
Working level		M4	M4	M4	M4	M4	M3	M3	M3
Running test load(Kn)		0.31	0.625	1.25	2.5	3.75	3.75	6.25	12.5
Length of lable(m)		2.5	2.5	2.5	2.5	2.5	2.5	2.5	3
Net weight(Kg)		25	50	55	60	65	78	100	260
		0.55	1.1	1.1	2.2	3.3	3.5	5.3	10.6
Extea weight per meter of extra lift(Kg)		0.55	1.1	1.1	2.2	3.3	3.5	5.3	10.6
Hmin		430	500	520	630	710	800	850	1150
Minimum distance between hooks(mm)		430	500	520	630	710	800	850	1150
Dimension	A(mm)	210	245	245	245	245	265	265	265
	B(mm)	210	245	245	245	245	265	265	265
	C(mm)	116	158	158	124	124	127	127	338
	D(mm)	104	142	142	176	176	205	205	338
	E(mm)	262	350	350	350	350	393	393	800
	F(mm)	500	600	600	620	620	738	738	950



HH-B electric chain hoist is a new kind of product we developed recently.
It has such characteristics as fast lifting speed,convenient operation and beautiful appearance.Especially,its unique overloading safety protection setting and electrical machine hot protection setting make sure of the higher reliability of this product.
It is widely used in lifting light and small goods.It can also be used in low-level space materials circulation system by mating with aerial travelling crane equipment.
This product attests to be effective equipment which can improve working condition and enhance labor efficiency,Optional wireless remote controller.
