Home > Products > High Manganese Liner Plate > Competitive High Manganese Ball Mill Liner Plates
Competitive High Manganese Ball Mill Liner Plates
- Shanghai Port
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
-


Long Work High Manganese MN13CR2 Power Plant Ball Mill Liner Plates
 -


Long Work High Manganese MN13CR2 Cement Ball Mill Liner Plates
 -


Sand Casting High Manganese Low Price MN13CR2 Iron Ore Ball Mill Liner Plates
 -


Sand Casting High Manganese MN13CR2 Irom Ore Ball Mill Liner Plates
 -


Sand Casting Mn13Cr2 High Manganese Ball Mill Liner Plates Coal Grinding
 -


Sand Casting Mn13Cr2 High Manganese Power Plant Ball Mill Liner Plates

Product Details
| Place of Origin | Jiangsu, China | Brand Name | HG | |
| Model Number | HG-HCL | Application | Ball mill liners | |
| Material | Iron | Dimensions | Based on drawings |
Product Description
Competitive High Manganese Ball Mill Liner Plates
Xuzhou H&G wear resistant Material Co.,Ltd is a specialized manufacture of casting ball mill liner for mining

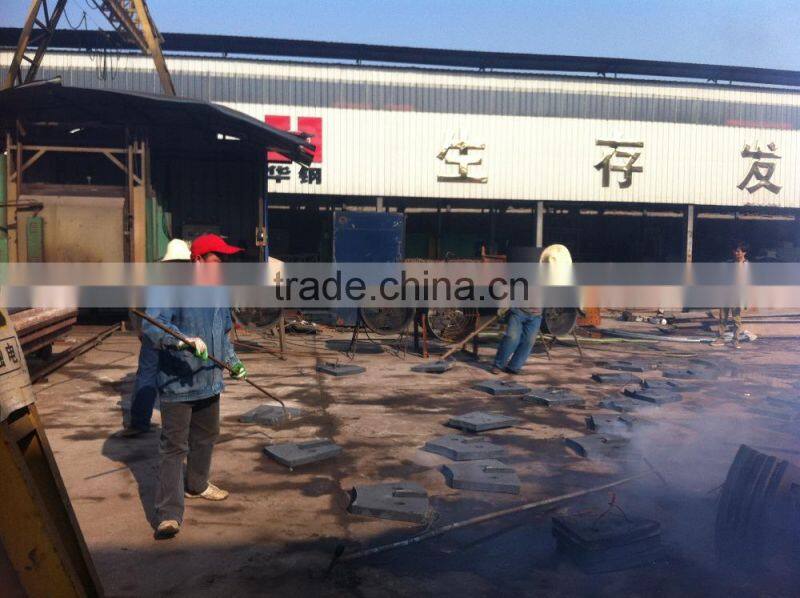

Details of Our Factory
Xuzhou H&G Wear-resistant Material Co., Ltd. is one of the largest manufacturers for casting grinding steel ball, liners for balls mill and casting grinding cylpebs in China. We are ISO9001 certified company with the annual production capacity over 20,000 metric tons.

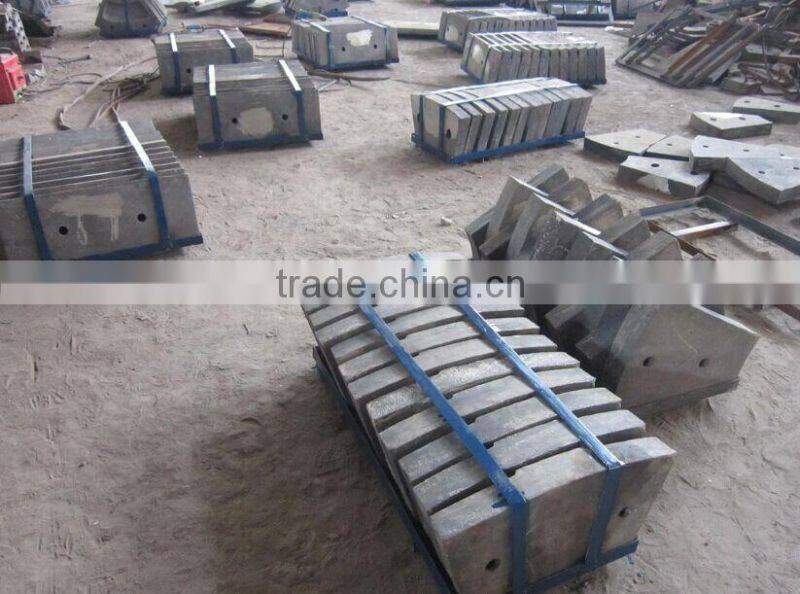

Details of Casting liners for ball mill
1. Alloyed casting ball mill liner : ZGMn13Cr2.
2. High hardness and impact value
3. Wear resistance and longer life span
4. Factory Supply, competitive price
4. Our factory can based on customer’s drawing and contents requirements
5. The series are designed for high abrasion performance Indusry mills.
6. Meanwhile, we also provide customised materials to our customers.
7. Packaging detail: Export standard or according to client's requirements.


Chemical Composition High Manganese Steel Ball Mill Liner Plate
Name  | Chemical Elements (%)  | |||||||
C  | Si  | Mn  | Cr  | Mo  | Ni  | P  | S  | |
High Mn Liner ZGMN13  | 0.9-1.5  | 0.3-1.0  | 11-14  | 0-2.5  | 0-0.5  | ≤0.05  | ≤0.1  | ≤0.05  |
Physical Property & Microstructure of High Manganese Steel Ball Mill Liner Plate

Name  | HB  | Ak(J/cm2)  | Microstructure  |
High Mn Liner ZGMN13  | ≤200  | ≥80  | M+C+P  |
M- Martensite C- Carbide P-Pearlite  | |||
Size of High Manganese Steel Ball Mill Liner Plate
Size  | Hole Dia.(mm)  | Liner Length(mm)  | ||
≤40  | ≥40  | ≤250  | ≥250  | |
Tolerance  | +2 0  | +3 0  | +2  | +3  |
Why Choosing H&G Ball Mill Liners
1. Over 20 years Professional liners for ball mill manufacturing experience, deserves your trust.

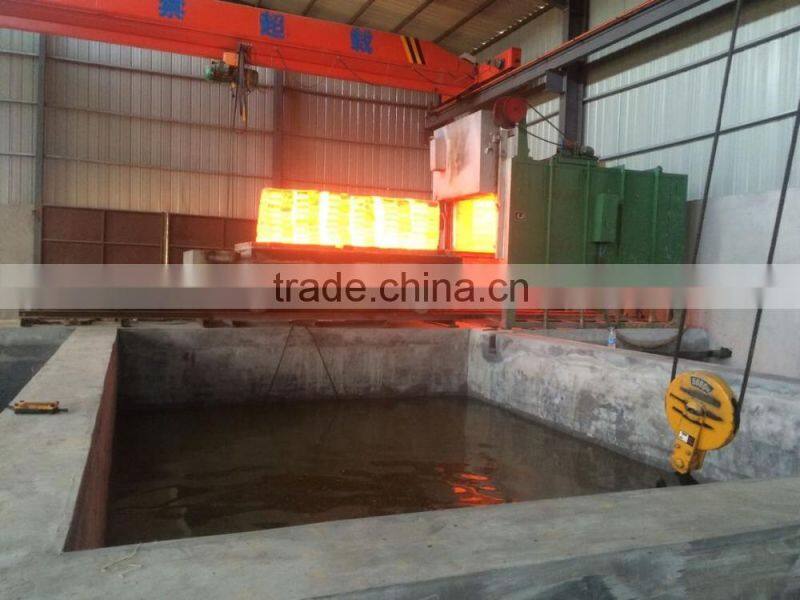

2. High quality, competitive price and good service benefit our customers. ISO9001 certified company, advanced oil quenching and heating production line, together with advanced testing machines imported from Germany are used to ensure the quality.

3. Skilled sales & service team in Shanghai branch can provide timely good service.

4. 20,000 Tons annual production capacity can provide short L/T.
