220V 135mm AC Run Capacitor Asynchronous Motor
US$ 70 - 180
/ Piece
1 Piece(Min. Order)
- Shanghai
- T/T
You May Like
-
220V 135mm ac Electric Gearmotor Barrier for Apartment
-
220V 135mm Road Safety Car Parking Gate Boom Barrier Motor
-
220V 135mm China Supplier of Boom Barrier Gate Motor
-
220V 230V 135mm Induction Gear Motor Motor Forward and Reverse
-
220V 135mm YYJ Series Capacitor Run Low Speed Single Phase Motor
-
220V 135mm Single Phase Asynchronous Motor With Reduction Gear Box for Barrier Gate
Product Details
| Brand Name | SOK MOTOR- ac synchronous motor | Model Number | 135YYJ6D4-15a- ac synchronous motor | |
| Type | Asynchronous Motor | Frequency | 50Hz | |
| Protect Feature | Drip-proof | Phase | Single-phase | |
| Certification | CCC, CE, ROHS, Other, CCC, CE, ROHS, BV | AC Voltage | Other, 220V | |
| Place of Origin | Jiangsu, China |
Product Description
Product Description
Description of ac synchronous motor
The synchronous gear motor consists of synchronous motor and high reliable planetary gear box, which has following features :compact construction, constant speed, high torque. There will be no impact current when the motor start ,brake, reverse and stall instantly. The motors have certain holding torque, if they are excited by DC power, they will produce high holding torque.
In addition, the motors can start ,brake, reverse and stall instantly. They also can drive high inertial loading and are mainly used as driving devices.
The synchronous gear motor can achieve stepless variable speed to meet different requirement if they are driven by SOK’s special inverter SV02-D4.
Typical application of ac synchronous motor
Auto-testing equipments
Medical equipments
Timing belt drives
X-ray scanning
Feed mechanism of lathes
Textile machines
Electrical valve actuator
Cryogenic pump
Conveyor systems
Barrier gate
Remote control of switches rheostat
Printing,packaging machines
Antenna rotators
Auto-welding machines
Automatic production line
Ambient condition
Ambient condition of ac synchronous motor
1.Temperature:-25℃~ +40℃;
2.Relative humidity:90%~ 95%;
3.Atmospheric pressure :74.8KPa(2500m);
4.Vibration:10~55Hz,double amplitude 1.5mm;
5.Impact: 150m/s2

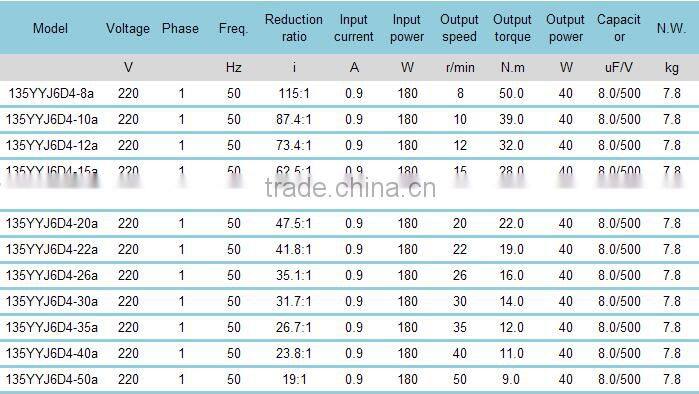

Specifications

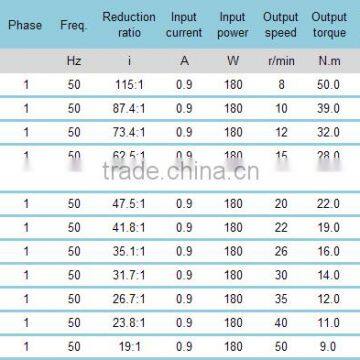

Electric motor parameter of ac synchronous motor
Note: The typical specifications below are just for your reference. Motors’ voltage ,frequency, speed , torque, shaft extension, outline dimension and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

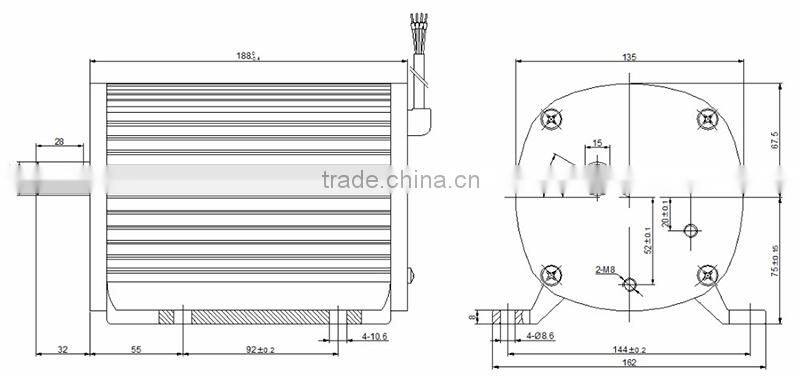

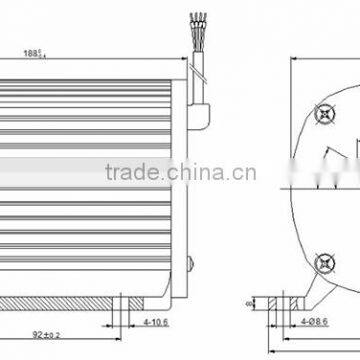

Outline drawing
Dimension of ac synchronous motor
Wiring diagram
Our service
Our Company

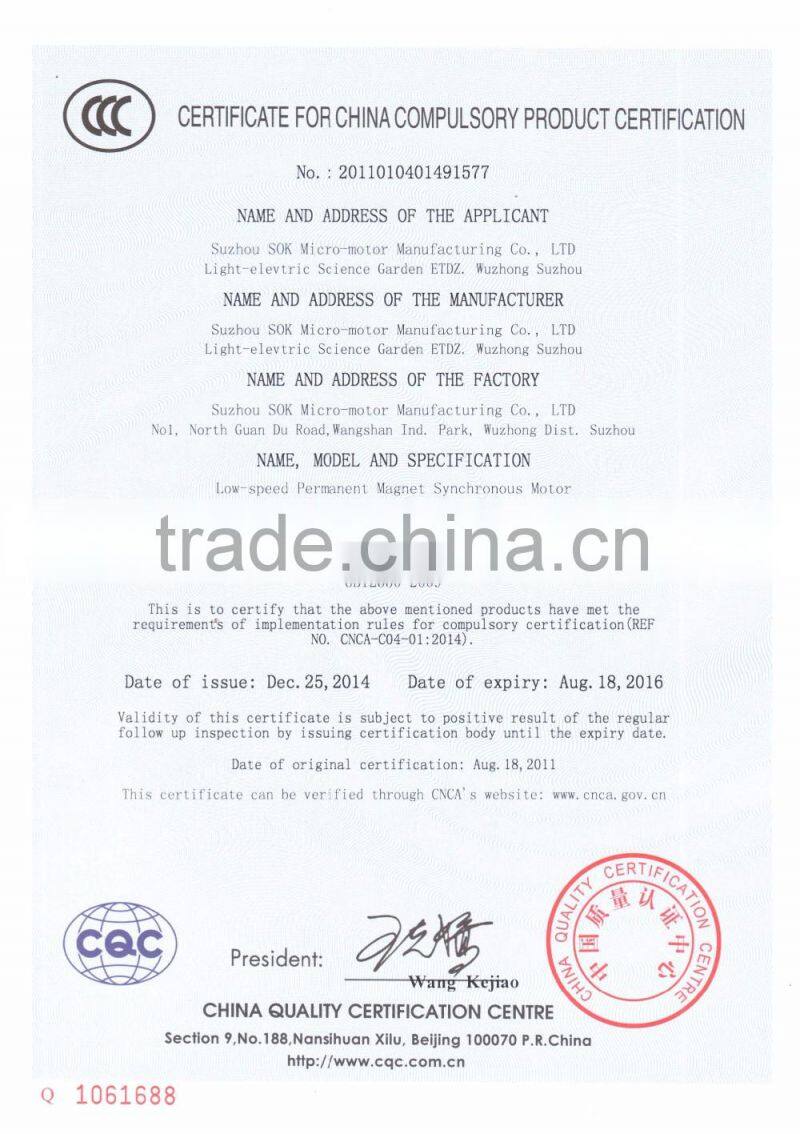

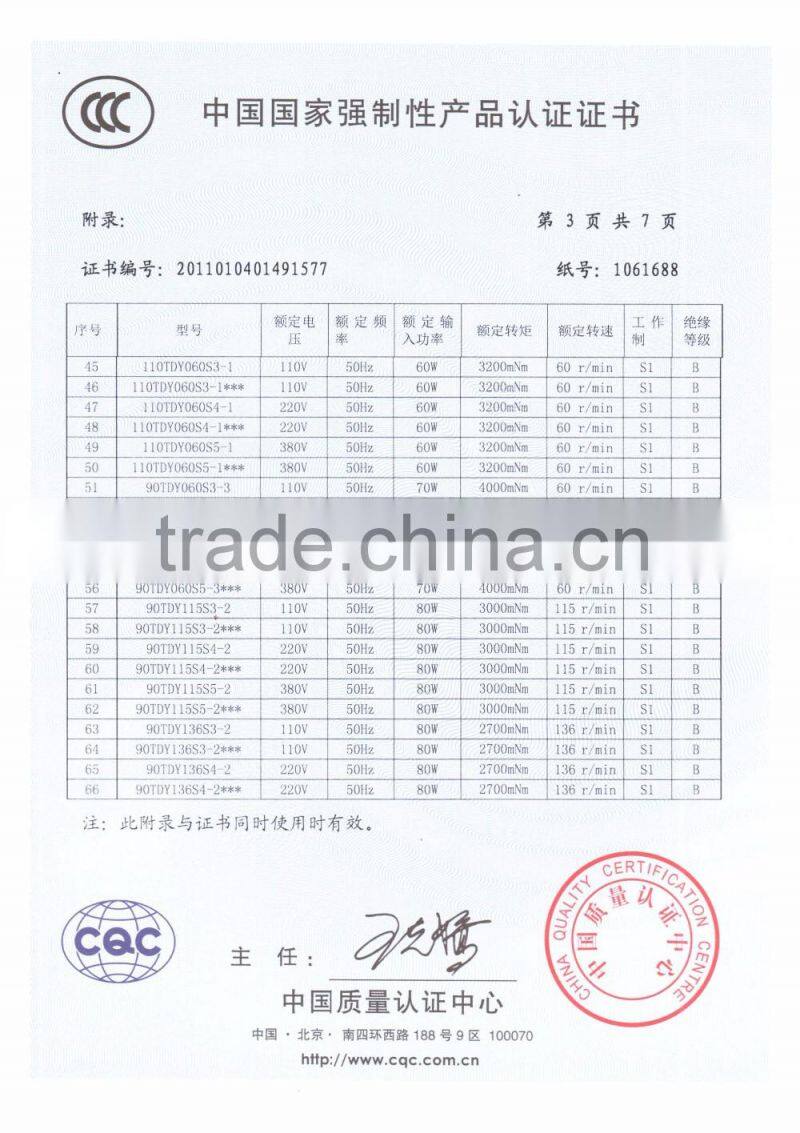

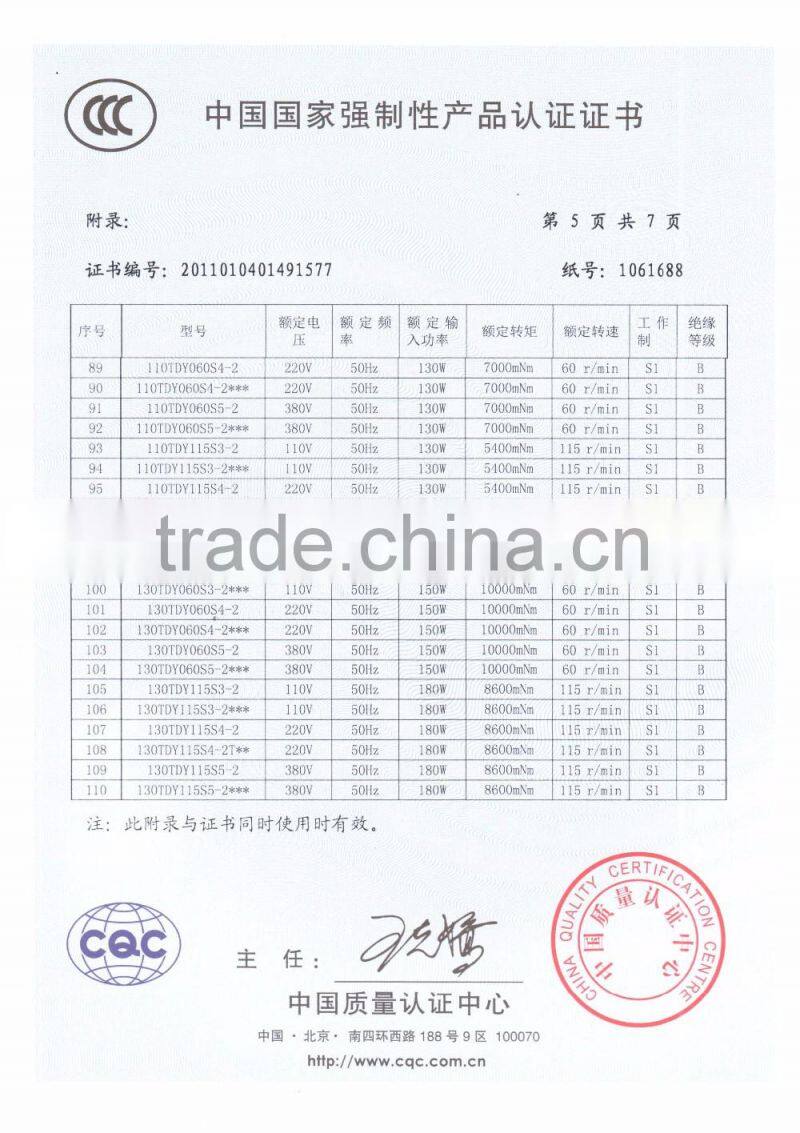

Certifications
Related Products
220V 90mm High Quality Permanent Magnetic Synchronous Gearmotor
91.8% Response Rate

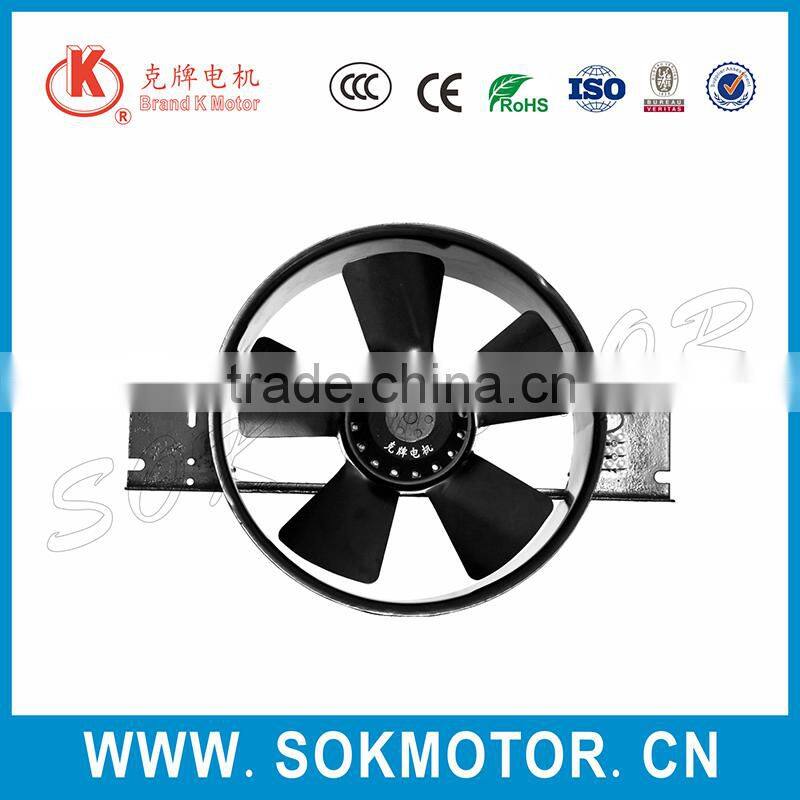

110V 250mm AC powerful ac axial fan
