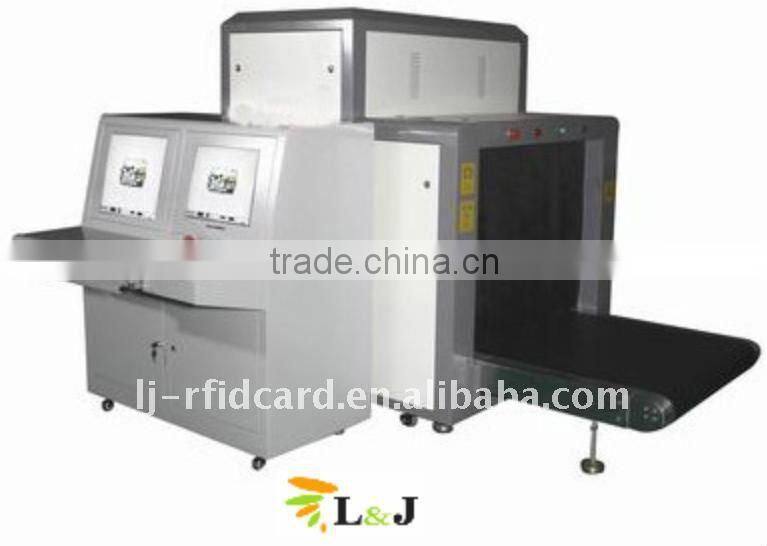

X-ray Inspection System

PN: LJ-X080 ------ scan oversize objects

Typical Steel penetration 34mm

Designed to thwart the cleverest attempts at hiding weapons, drugs, stolen goods and other contraband, LJ-X080 X-ray Security System is ideal for screening everything from over size packages to oddly shaped items and palletized loads.

• Tunnel Size:1000(Width) *800(Height)mm
• Dimensions: 2480mm(Length) *1480(Width)* 1880mm(Height) mm
• Approximate Gross weight: 1000kgs

Advantages:

• With equipment to save electricity
• Famous brand spare parts:

Spellman brand generator from the USA;

Hamamatsu brand detector from Japan;

Interroll brand Roller from German;

• Protective cover on lead curtain to avoid lead pollution;
• Sound and light alarm;
• Local network supported;

Applications

1. Commercial buildings;
2. Factories(to find needle in clothing, shoes, bags)
3. Courthouses;
4. Embassies;
5. Government buildings;
6. Military installations;
7. Prisons;
8. Mail Rooms
9. Hotels;
10. Schools;
11. Convention centers;
12. Security checkpoints.

Excellent system for airport, train station, bus station as well as security-sensitive corporate environments

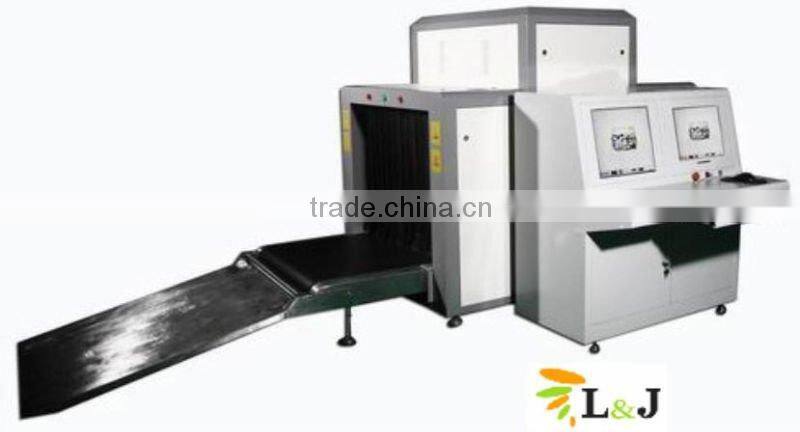

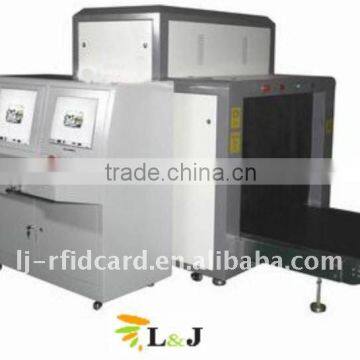

LJ-X080 X-ray Inspection System

General Specification

• Tunnel Size-------------------------- 1000(W)*800(H)mm
• Conveyor Speed--------------------- 0.22m/s
• Conveyor Max Load----------------- 200kg
• Dose per Inspection------------------ < 1.7μGy/h
• Resolution------------------------------ < 0.101mm Copper Wire
• Spatial resolution--------------------------- Level: dia1.3mm, Vertical: dia1.0mm
• Penetrate  resolution---------------------- Dia 0.511mm
• Penetration------------------------------ 34mm Steel
• Film Safety------------------------------ Guarantee ISO1600 Film
• X-ray Leakage-------------------------- <0.1 μGy/h (at a distance of 5cm From external housing)

X-ray Generator

• Generate direct: Bottom to up
• Generate angle: 80 degree
• Anode Voltage-------------------- 100~160Kv
• Anode power---------------------- 0.4 to 1.2mA
• Cooling / Duty Cycle------------- Oil Cooling /100%

Image System

• X-ray Sensor------------------------ L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
• Monitor------------------------------ High Resolution Color, LCD Accord, 17 inch
• Image Processing------------------- Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
• Image Grey Level----------------------- 4096
• Image Max Resolution------------------ 1024 * 1280 pixel
• Image Processing----------------------- 24bit for processing real time
• Image storage---------------------------- Storage 60000 pictures in real time
• Zones & Zoom------------------------- 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

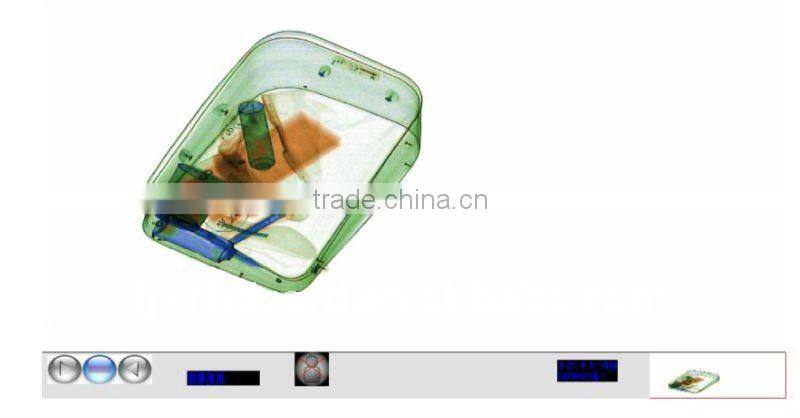

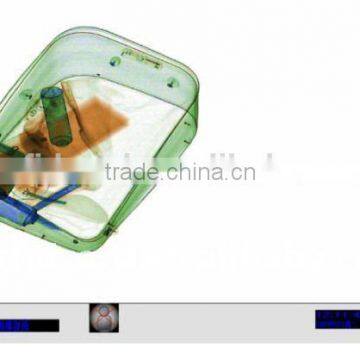

• Multi-energetic distinguish objects -------------- organic objects in orange, inorganic objects in blue, mixture  in green
• High-energy/low energy ---------------------------- switch from high energy to low energy
• Assist to detect drug and explosive powder

Installation Data

• Operation temperature/Humidity--------------- 0°C-45°C/20%-95%(non-condensing)
• Storage Temperature/Humidity----------------- -20°C-60°C/20%-95%(non-condensing)
• Operation Power---------------------------------- 220VAC(±10%)50±3Hz
• Power Consumption------------------------------- 1.0 KW (max)
• Noise: <58db
