Multi-function Disperser Kettle

FOB Price

US$ 11,999 - 44,999 / Set

1 Set(Min. Order)

Port Shanghai Zhangjiagang
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Sand Mill
Product Type	Paint	Place of Origin	Jiangsu, China
Brand Name	Kaixin	Model Number	FS
Voltage	Customized	Power(W)	5.5-18.5KW
Certification	CE/ISO9001, CE/ISO9001	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

not used horizontal lab paint sand mill

Product Description

CE Certified
Anchor mixer, tooth disperser
Tank volume: 2-12CBM
Triple mixing shafts
Vacuum optional

Model		FS-2	FS-3	FS-5	FS-6	FS-8	FS-10	FS-12
Chamber volume(m3)		2	3	5	6	8	10	12
Agitating motor power(KW)		5.5	5.5	7.5	7.5	11	15	18.5
Agitating shaft speed(r.p.m)		50	50	50	50	41	41	41
Agitating blade dia.(mm)		1300	1500	1700	1700	1900	2100	2300
Dispersing motor power(KW)		13/16	13/16	22/28	22/28	22/28	26/34	30/42
Dispersing shaft speed(r.p.m)		960/1450	960/1450	960/1450	960/1450	970/1470	970/1470	750/1480
Dispersing shaft quantity		2	2	2	2	2	2	2

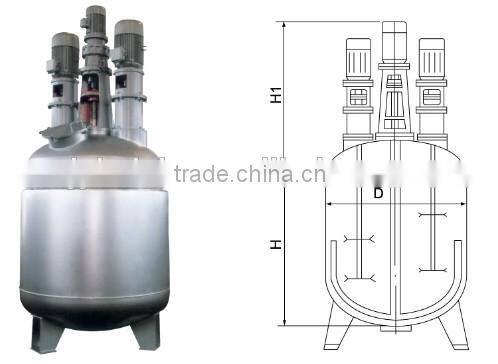

External dimension(mm)	D	1400	1600	1800	1800	2000	2200	2400
	H	1650	1765	2048	2400	2800	2950	3100
	H1	1930	2000	2200	2200	2500	2570	2620
Can be customized according to customer’s requirement

Disperser agitator,high speed disperser, agitator

FS series multifunctional dispersing kettles are integrations of powerful agitator and high speed disperser, which are applicable for agitation, dispersion, dissolution and color mixing of medium/high viscous and thixotropy materials. Agitation and dispersion can proceed simultaneously and realize ideal effect. They are ideal agitating and dispersing equipment which are easy to operate and widely applicable.

Click the image below ↓for video

Our Services

1. Before delivering the machine, we will test and adjust it, so you can use it directly when you get it.

2. Operating video& Instruction will be sent to clients to help them better use the machines.

3. Any problems occur while using, professional advice will be given by us.

4. All kinds of frequently used parts are supplied from us all the year around.

Our Partners

Hope you are our next customer

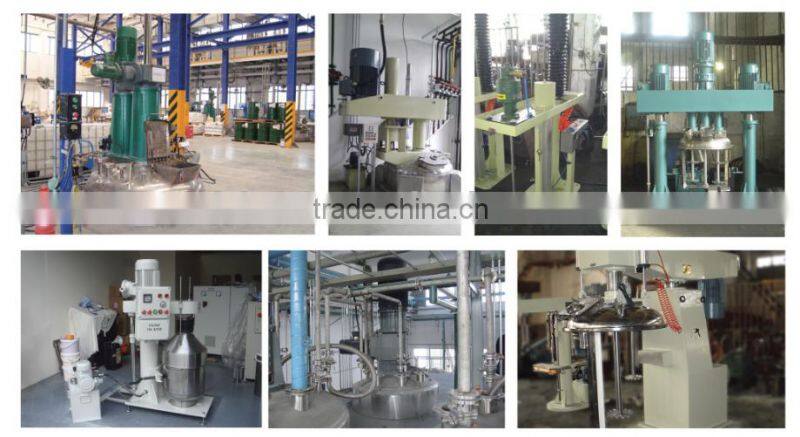

Our projects
