High Speed Paint Disperser

FOB Price

US$ 999 - 19,999 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Sand Mill
Product Type	Paint	Place of Origin	Jiangsu, China
Brand Name	Kaixin	Model Number	FL,FX
Voltage	Customized	Power(W)	1.5-90KW
Certification	CE/ISO9001, CE/ISO9001	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

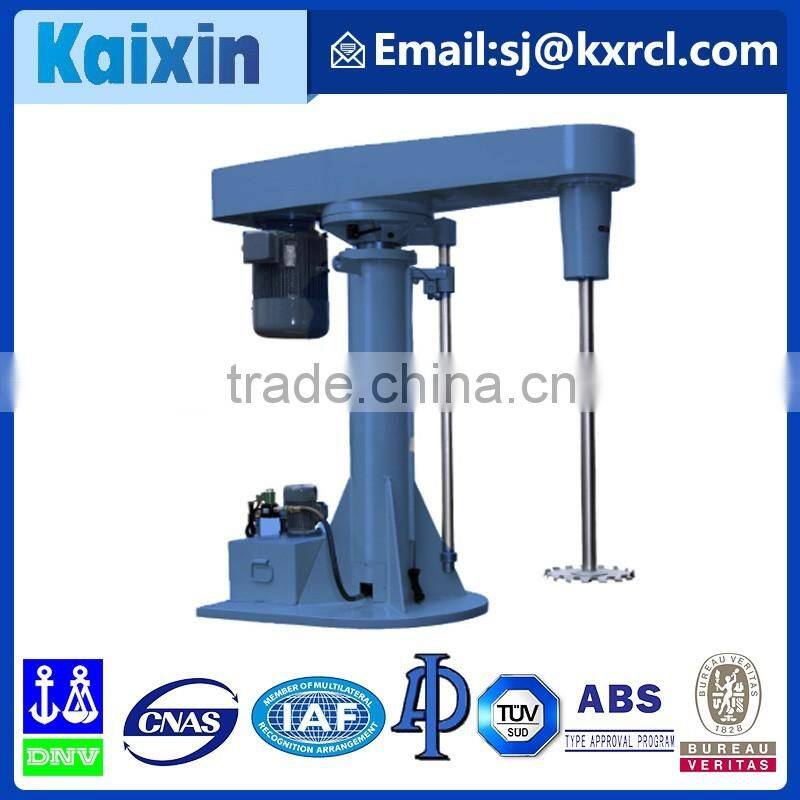

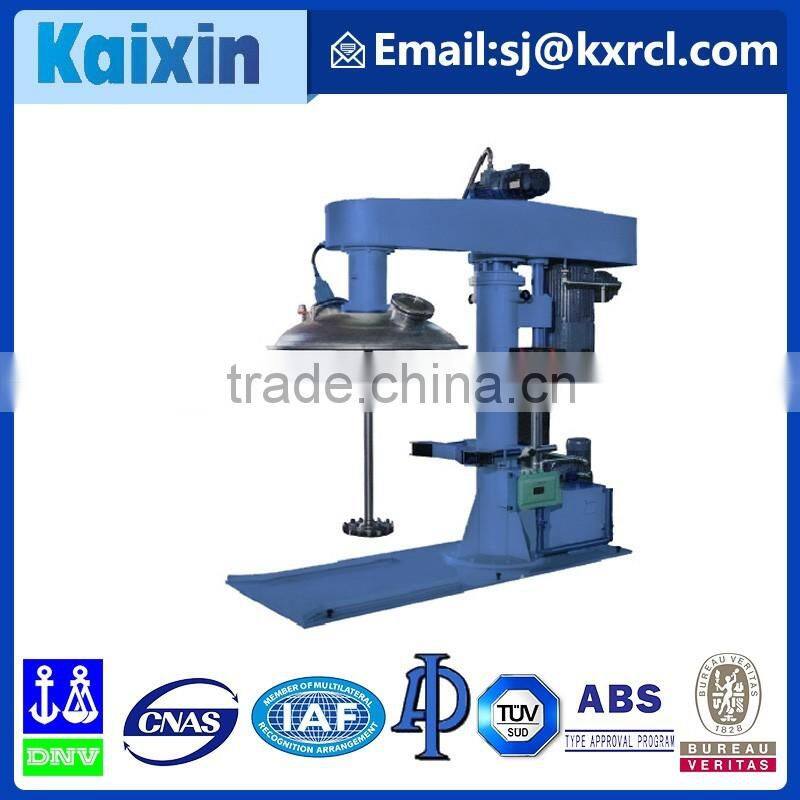

high speed paint disperser

Product Description

CE certified
High speed paint dissolver
Tooth shaped dispersing disc
Floor type or platform type
Hydraulic lift

Model		FL1.5	FL4	FL7.5	FL11	FL22/FX22	FL37/FX37	FL90/FX90
Main motor power(KW)		1.5	4	7.5	11	22	37	90
Dispersing shaft speed (r.p.m)		0-1450	0-1450	0-1450	0-1450	0-1450	0-1200	0-1000
Dispersing blade dia. (mm)		150	200	230	250	350	400	600
Lifting stroke(mm)		600	800	900	900	1200	1200	1600
Pump motor power(KW)		0.55	0.55	0.55	0.55	0.75	0.75	2.2
Tank volume(L)		50	200	300	400-600	600-1000	1000-2000	5000
Weight(Kg)		120	400	700	800	1500	1700	2600

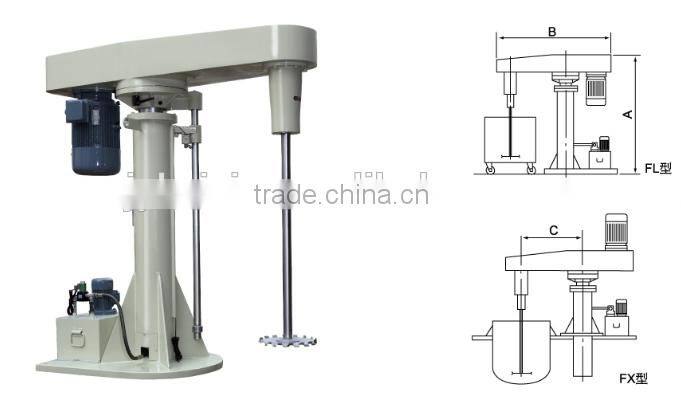

External dimension	A (mm)	1400	1700	1750	1750	2200	2200	2700
	B (mm)	940	1300	1800	1800	2100	2100	3000
	C (mm)	350	600	830	900	1100	1100	1600
	W (mm)	350	540	650	650	900	900	1500
The max type is above FX200,can be customized as per requirements

Suitable for high speed-dissolution,dispersing and particulate wetting.

Utilised for premixing coatings,dyes,pigments,printing inks,paper coatings,adhesives and chemicals.

Characterised with low air intake at the vortex with excellent mixing and dispersing action resulting in uniform particle sizes.

With varible speed availability the mixing and dispersing of the material can be achieved very quickly with the finest of particle sizes.

Click the image below ↓for video

Our Services

1. Before delivering the machine, we will test and adjust it, so you can use it directly when you get it.

2. Operating video& Instruction will be sent to clients to help them better use the machines.

3. Any problems occur while using, professional advice will be given by us.

4. All kinds of frequently used parts are supplied from us all the year around.
