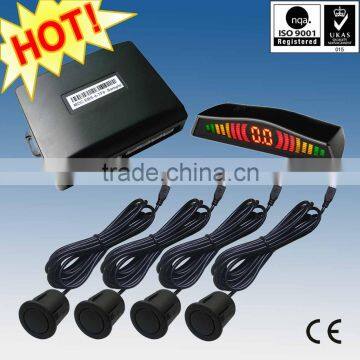

2013 Latest good feedback 3 color led car reverse parking sensor

Specifications

Reverse parking sensor


Model NO.: ED02-4-MF0

Technical Specification:

1) Car Premium Rear 4 Parking Sensor. System
2) Sensor detection range: 5cm~2.5m

3) Display range: 30cm~2.5m
4) Advanced self-diagnosis with error indication
5) Improved anti-interference function
6) All weather design, AMP connector
7) 4*MF0 analog sensor, 21.5mm plastic flat

8) 4/3/2 sensor optional
9) DSP02 mini display, 3 color 7 band  LED 4 channel w/ digital readout

10) Power Input: 9.6~35V DC

MORE SPEC:

1. Detection distance: 0.3-3.0m
2. Digital display range:2.5-0.35m(98-14inches)
3. Alarm distance:0.1-2.5m
4. Temperature:-30-+80°C
5. Detection range of single sensor:120cm in horizontal.  90cm in vertical
6. Alarm volume: >73db(external buzzer), .>65db(internal buzzer)

This type of car reversing radar system has been the most popular model since it was out  to market. This system applies unique color displayer/buzzer.

When obstacles move closer within 1.5m.LCD light of three colors of green, yellow and red will run on turn. When the bumper is closer to the obstacle, the buzzer beep more prompt. So that the driver can feel the distance to obstacle vivid. The orientation of obstacles can be indicated too. This system makes sure the safe of parking a car.

 Control box
