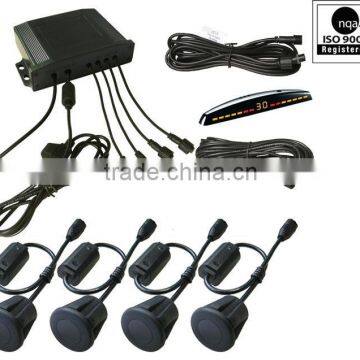

luminous parking sensor(SW01-4-R7P)

Specifications

luminous parking sensor

Model No.: SW01-4-R7P

Technical Specification:

1) Coach Rear 4 Parking Sensor System
2) Sensor detection range: 5cm~2.5m

3) Display range: 45cm~2.5m
4) Advanced self-diagnosis with error indication
5) Improved anti-interference function
6) All weather design, waterproof level: IP68

7) 4*R7P SmartSensor module built in sensor, 22mm rubber angled, fit for metal tube bumper use
8) DSP01 mini display, 3 color LED 4 channel w/ digital readout

9) Power Input: 9.6~35V DC

SPEC:

1. Detection distance: 0.3-3.0m
2. Digital display range:2.5-0.35m(98-14inches)
3. Alarm distance:0.1-2.5m
4. Temperature:-30-+80°C
5. Detection range of single sensor:120cm in horizontal.  90cm in vertical
6. Alarm volume: >73db(external buzzer), .>65db(internal buzzer)

This type of car reversing radar system has been the most popular model since it was out  to market. This system applies unique color displayer/buzzer.

When obstacles move closer within 1.5m.LCD light of three colors of green, yellow and red will run on turn. When the bumper is closer to the obstacle, the buzzer beep more prompt. So that the driver can feel the distance to obstacle vivid. The orientation of obstacles can be indicated too. This system makes sure the safe of parking a car.
