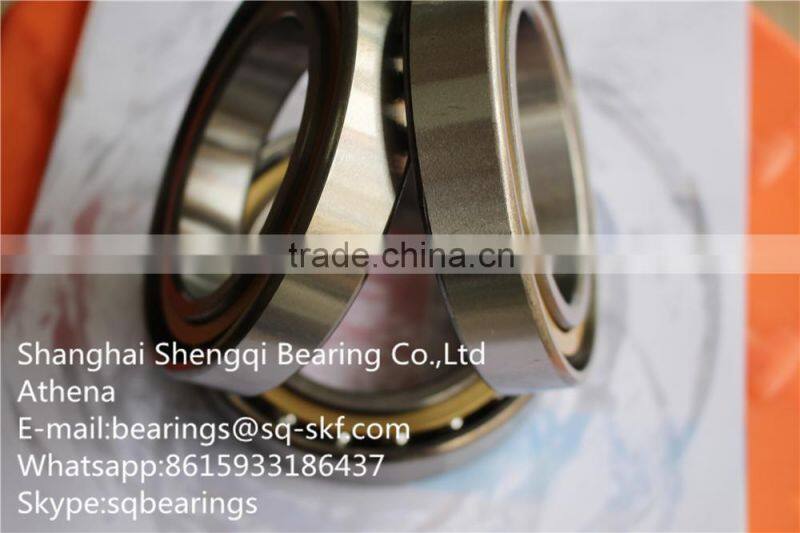

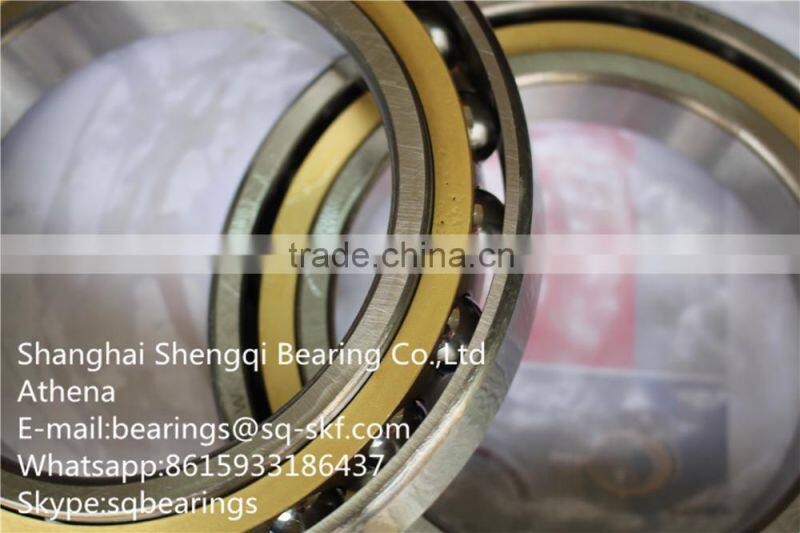

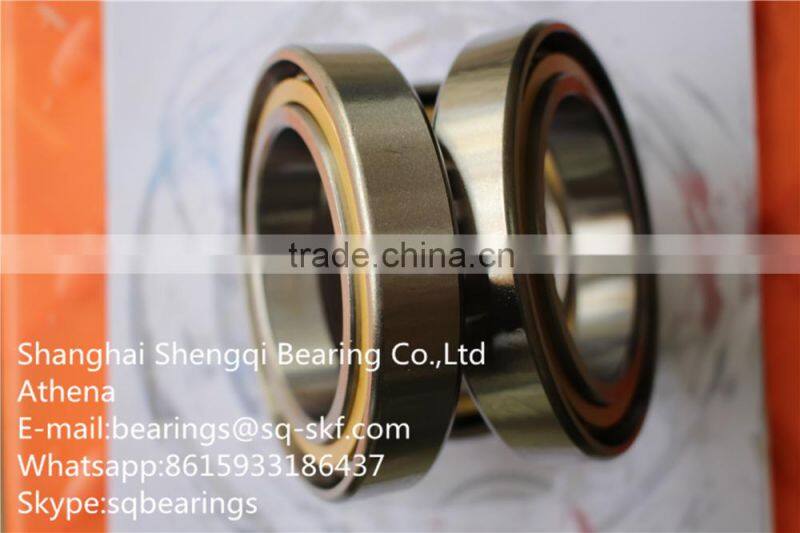

Copper Bearing Cage 7014AC/ACM Contact Ball Bearings

 Angular Contact Ball Bearings
Angular contact ball bearings are non-separable type bearings and typically used for carrying combined (axial and radial) loads. They can carry pure axial load and operate in higher speed. That's why many people refer to them incorrectly as thrust bearings. There are three basic types of angular contact ball bearings:
• Single Row Bearings
• Double Row Bearing
• Four Point Contact Ball Bearings

Single Row Angular Contact Ball Bearings:
Single row angular contact ball bearings can carry axial loads acting in one direction only. Under the radial loads the force acting in the axial direction needs to be countered. It is usually adjusted against the second bearing. These bearings have one high and one low shoulder on each ring allowing more number of balls to be incorporated.
There are two standard versions of single row angular contact ball bearings used for different purposes.
Only one bearing is used at a given bearing position.
Two or more bearings are positions at the given bearing position. They may be mounted adjacent, back to back or face to face position. Universal matching bearings are specially manufactured to be placed in adjacent arrangement to get a pre determined internal clearance.

Double Row Angular Contact Ball Bearings
The design of double row angular contact ball bearings is similar to two single row angular contact ball bearings placed adjacent. The design is non separable type. The basic design does not have filling slots and can accommodate equal axial loads in both directions.
The ones with a larger outer diameter have filling slots in one direction and have a pressed steel or machined brass cage. Bearings with E design have high load carrying capacity. They also have filling slots on one side and that allows incorporating large number of balls.
They are also available with shields (non-rubbing type) and seals (low friction and rubbing

type) on both sides. They are filled with lithium based grease that inhibits rust and can operate from temperatures -30° C to 110° C.

Four Point Contact Ball Bearings
Four point contact ball bearings are single row having raceways that enable to accommodate axial loads in both directions. They need lesser axial space and a two part inner ring. This allows large number of balls to be incorporated and carry larger loads. The bearings are separable type. They are designed to accommodate axial loads and arranged as thrust bearings with radial clearance

l  single row angular contact ball bearings:

machine tool spindle, high frequency motor, gas turbine, centrifugal separator, small car front wheel, differential pinion shaft, booster pump, drilling platform, food machinery, dividing head, filling machine, low noise type cooling tower, electrical equipment, coating equipment, machine tool trough plate, arc welding machine.

l  Double row angular contact ball bearing:

oil pump, roots blower, air compressor, all kinds of transmission, fuel injection pump, printing machinery, planetary reducer, extraction equipment, cycloid reducer, food packaging machinery, electric welding machine, electric, square box, gravity type spray gun, wire stripping machine, axle shaft equipment, chemical machinery, testing analysis.

 Our main products includes:
1.Deep groove ball bearings
2.Self-aligning ball bearings
3. Cylindrical Roller Bearings
4. Self-aligning Roller Bearings
5. Angular Contact Ball  bearings
6. Tapered Roller Bearings
7. Thrust Ball Bearings
8. Thrust Roller Bearings
9. Needle roller Bearings
10. Insert Ball Bearings
11. Spherical Plain Bearings

12. joint bearings

 Shanghai Shengqi Bearing Co.,Ltd is a bearing manufacturer in  China, we can supply all kinds of bearings, except for our own brand, we also offer famous brands bearings and can customized as customer's request. Our  products widely sold to USA, Europe, Middle East, Asia and so on. If you are interested in our products or need more information about our products, please contact me.

1.Q: When can I get the price?
 A:  after we get your inquiry, usually within 6 hours. Urgent will be faster.

2. Q:How about your quality of bearings?

   A: We have different quality, according to your need.

3. Q: Can I get free samples for test from your company?
    A: Yes, we offer samples for test.

4.Q: What is the MOQ of your products?
  A: Usually ≥1, According your need.

4. Q: How about the Delivery time?
    A: About 3-15days. (according the quantity.)

5. Q: Will you check these products before shipment?

A: Yes, before shipment products will be strictly inspection on our factory QC Process System. We have a professional QC team.

If you need more information of our product, welcome to contact with me.
