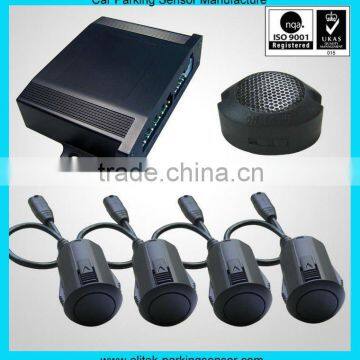

auto parking sensor with memory function,standalone buzzer with "hi-low-off" switch option

Specifications

                  auto parking sensor with memory function,standalone buzzer with "hi-low-off" switch option

 Modle: SB01-4-LFP

1) OEM Car Rear 4 Parking Sensor System;

2) Sensor detection range: 0cm~2.5m;

3) Display range: 30cm~2.5m;


4) Advanced self-diagnosis with error indication;


5) Improved anti-interference function;


6) All weather design;


7) 4*LFP SmartSensor module built in double angle sensor,22mm plastic flat,

    fit for spare tyre or tow bar use;


8) BUZ01 , Standalone buzzer; "hi-low-off" switch option


9) Memory function,smartsensor technology,intelligent to decern the spare tyre from real obstacles;

10) Programable,all sensors interchangeable;

11)  Industrial cables and connectors, Microchip MCU;

12)  Power Input: 10~35V DC

13)Professional parking sensor manufacturer.

Specification:
 Center frequency: 40±1.0KHz;
 Echo Sensitivity: ≥150mV;
 Decay Time: ≤1.0ms;
 Directivity : 80±15°;
 Capacitance :1600pF±15%;
 Max. Input Voltage:140Vpp;
 Mean Time To Failure: 50000h;
 Operating Temperature: -20°C~+80°C;
 Storage temperature:-20°C~+85°C.

 Standard configurations:

   Different smart sensor for your choice of this series:

Waterproof twisting connector optional:

 Inner package:
