High Quality Rental LED Sign High Way Moving Standing Led Displays
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
Video Display Function and Outdoor Usage Led Outdoor Display Supplier's Choice
-
Video Display Function and Outdoor Usage P16 LED Screen Display
-
Outdoor P10 P12 P16 LED Display Module ,Digital Billboards
-
High Brightness Sports Events Led Display p6 Led Screen
-
High Quality PH8 SMD Sport Field LED Screen Led Stadium Display Module
-
High Quality P16 Advertising Led Outdoor Screen Stadium Led Display
Product Details
| Place of Origin | Guangdong, China | Brand Name | Haisheng | |
| Model Number | HSGD-O-F-P18 | Usage | Outdoor | |
| Tube Chip Color | Full Color | Display Function | Video | |
| Pixels | 18mm | Screen Dimension | costumer made |
Special air flight case or wooden case for outdoor led display, the weight and size depend on customer's requirments
Product Description

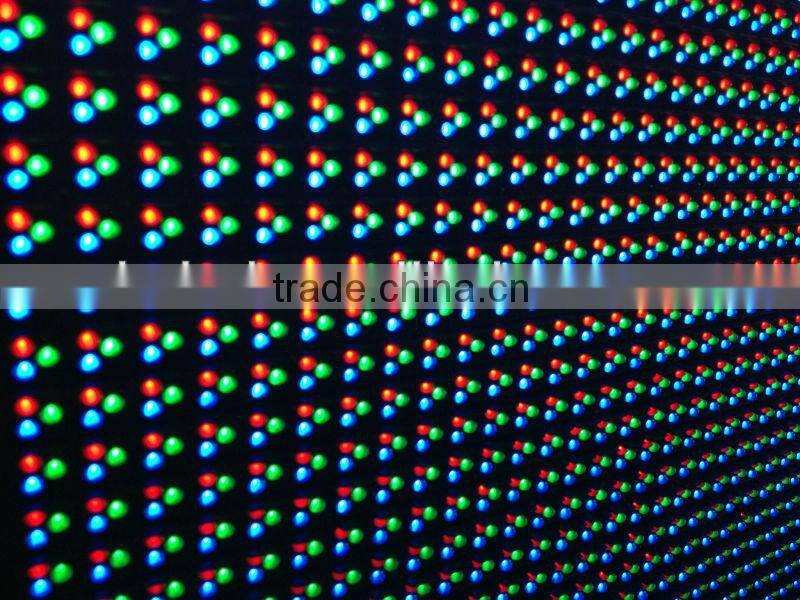

Module
INSIDE
Outdoor led display specification
Item | Specifications | |
LED Lamp | Type | 5 mm dismeter high brightness LED lamps |
Arrangement | 1R,1G,1B | |
Red Wavelength (dominant) | 625nm(+2.5nm) | |
Green Wavelength (dominant) | 525nm(+2.5nm) | |
Blue Wavelength (dominant) | 470nm(+2.5nm) | |
LED Cabinet | Dot Pitch | 18 mm |
Physical Pixel | 10000 dots/sq.m | |
Resolution | 96*96 pixel | |
Dimension | 960*960mm | |
Brightness | 7500 Nit-8500nit | |
Viewing Angle | 110(Horizontal),55(Vertical) | |
Best Viewing Distance | 20~160 meters | |
Power Consumption (Max) | 800 w/sq.m | |
Power Consumption (Typical) | 350 w/sq.m | |
Weight | 50 Kgs/sq.m | |
Frame Frequency | no less than 60 frame/sec | |
Refresh Rate | no less than 480 HZ/sec | |
Voltage | 220/110 VAC, 50/60 Hz | |
MTBF | 5000 hours | |
Life Pan | 100,000 hours | |
Protection Level | IP 67 | |
Malfunction Dot Rate | less than 0.0001 | |
Working Temperature | -25°C~65°C | |
Humidity | 10%~99% | |
Control System | Drive Mode | static constant current |
Control Means | Synchronization | |
Control System | PCTV Board + DVI Board + Control Board + Network cable Transmission | |
Software | LED Studio (LINSN) | |
Input Signal | RF,S-VIDIEO,RGB,RGBTV,YUT,YC,COMPOSTITION | |
PC System | Win2000,Win XP, etc | |
Features | - GENELITE /CREE lamp with uniform color and high reliability - Special structure design for water-proof and mothproof | |
description

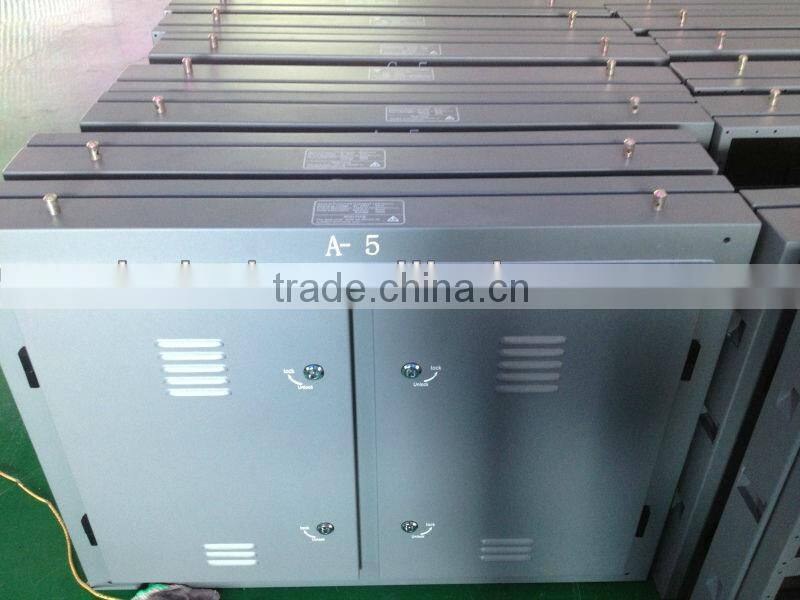

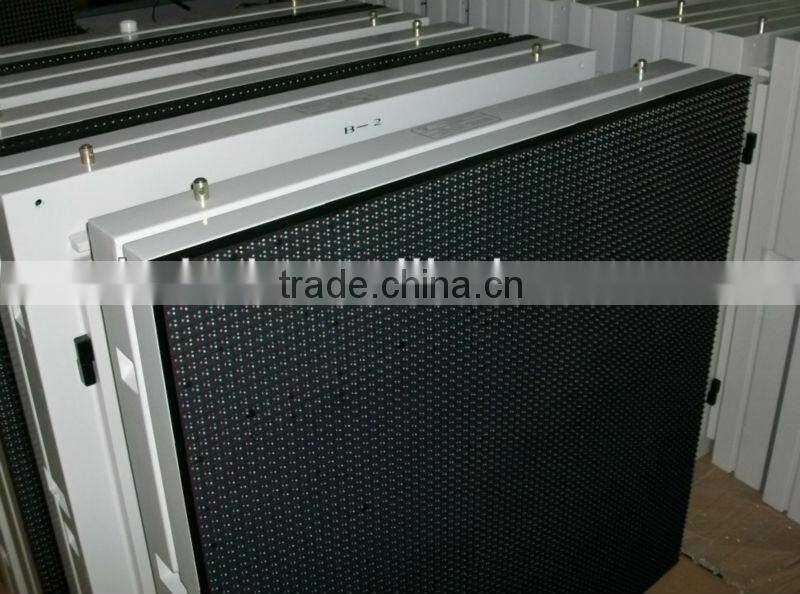

CABINET

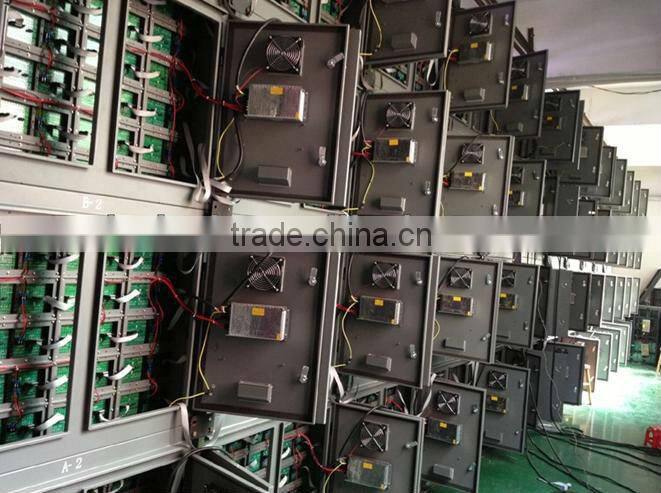

display aging
certificate

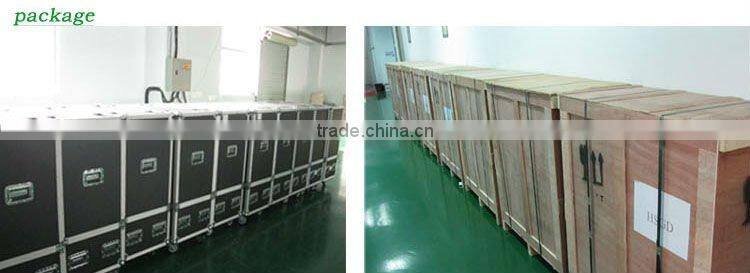

LED DISPLAY CASE
