dc to dc automatic step up and down voltage converter module 24V 19V 18V 15V 12V 9V 5V 3A

We produce MODULE ! CUSTOM-MADE module is OK! Our company produce your own board!

-----------------------------------------------------------------------------------------------------------------

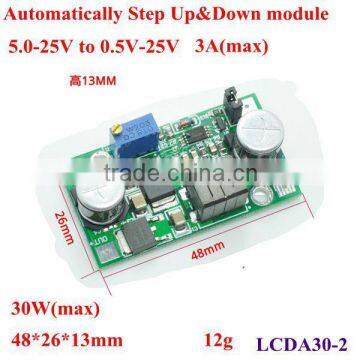

PRODUCT PICTURE

PRODUCT FEATURES

Appearance: feet inches 48 * 26 * 13 mm (length * width * height)

The input voltage range: 5.0-25 v

Range of output voltage: 0.5 V to 25 V (output voltage can be higher than can be lower than the input voltage, but please follow the principle of conservation of energy)

Continuous output current: 3 a (Max) please make sure that within 2 a long time work

Continuous input current: 3 a (Max) please make sure that within 2 a long time work

Input/output power: 30 w (Max)

Input/output current: according to the conservation of power under the condition of rated input/output current (Uin = Uout * * Iin * efficiency Iout)

Directions for use and precautions:

IN + : input the positive as: input cathode OUT: output the positive OUT - : output the cathode

Can make switch: stop output disconnect short-circuit cap module.

Reverse connect protection, no input, will meet the burn, when using please pay attention to the polarity.

Will automatically stop output, output short circuit module, to plug that can switch short-circuit cap can be restored.

Module in no-load startup and off load prone to short more than the preset voltage, output voltage and so are not suitable for the voltage sensitive equipment.

SHIPPING TERMS

1.Ship to whole world : DHL , UPS, FEDEX, EMS, HKPOST, SGPOST,SWPOST

2.Lead time:2days. If we don't have stock at that time, it takes 2-4days to produce it.

 ------------------------------------------------------------------------------------------------------------------

PAYMENT TERMS

1.We accept PAYPAL, TT, WESTERN UNION, ESCROW

2.Commission:

*Paypal: total sum *0.041

*Escrow: total sum *0.05

*TT: $28-$45(according to amount)

*Western union: $0

GUARANTEE PERIOD

    3 Months, if the quality have any problems, We have a good after sale

service team will slove the quality problems for you.

1.If you test the products and it doesn't work, pls keep it and send it to us in

   1 month, we will send the good one to you with the following order.

2.If the product is already used by you, then no warranty.

3.If the product is broken by man-made, then no warranty.

CONTACT US
