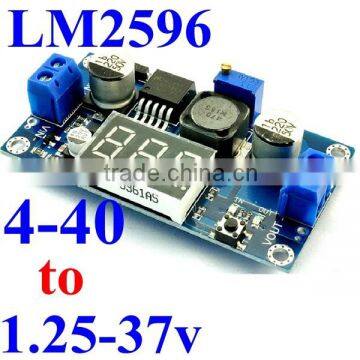

24 volt 12 volt converter 24v to 12v step down module dc dc voltage regulator with voltmeter

We produce MODULE ! CUSTOM-MADE module is OK! Our company produce your own board!

-----------------------------------------------------------------------------------------------------------------PRODUCT PICTURE&FEATURES

Module performance and features:
The voltmeter shows the voltage and the voltage can be self calibrated. The voltage meter error is 0.05V, which is more advanced. To ensure the accuracy of the voltage meter, please ensure that the input voltage is above 4.5V.
] the touch of a button can switch to measure the input or output voltage, and indicator shows which way the voltage being measured, and save the settings, even if is power off and then boot.
The voltmeter can be closed, when do not need to touch the left button easily.
- with a wiring terminal, no iron also can be easy to use, and keep the welding line connection point.
The input voltage of 4.0~40V. (the input voltage is higher than the output voltage 1.5V)
The adjustable adjustable output voltage range of 1.25V ~ 37V. (input voltage to be higher than the output voltage 1.5V)
The output current of 3A, it is recommended to use 2.0A in high current, the need to strengthen heat dissipation.
The output power of 20W, more than 15W please strengthen heat dissipation.
The conversion efficiency is high, the average in 88% (efficiency associated with input, output voltage, current, pressure)
- with reverse connection protection, reverse burning
Have overheating and short circuit protection function
Size: 6.1*3.4*1.2cm
