Duct Auto Line VIII/C cleat & TDF flange duct line/drive cleat duct making line
- 1 Set / Sets per Month
- GUANGZHOU
- T/T PayPal
You May Like
-
Duct Manufacture Auto Line VI/container duct auto line/TDF flange duct line
-
Container duct line/air conditioning auto line V/sheet metal process foll forming machine/TDF flange & right angel lock
-
Multifunction Automatic duct manufacturing machine (line V)/HVAC system in air conditioning/Engineering machinery
-
HVAC Duct auto line 5/auto line V/duct manufacturing machine
-
Comifo duct manufacture machine Co.,Ltd HVAC system duct equipments sheet metal processing machine
-
Heating and Cooling HVAC Duct Manufacturing Machine Auto Line VI/TDF Lock/Flange/Cuting/Folding
Product Details
Condition | New | Type | Pipe Production Line | |
Pipe Material | Other, galvanized steel | Application | Other, TDF& C cleat flange duct | |
Production Capacity | 1-18m/min | Place of Origin | Guangdong, China | |
Brand Name | COMIFO | Model Number | CAL8-1.2*1300 | |
Voltage | 380V | Power(W) | 22KW | |
Dimension(L*W*H) | 5400*2300*1400 | Weight | 10T | |
Certification | CE ISO9001 | Warranty | 12 Months | |
After-sales Service Provided | Engineers available to service machinery overseas |
pvc film
Product Description
Model No. |
Max Coil Width |
Thickness Range |
Speed |
Shearing Tolerance |
Diagonal Tolerance | (L*W*Hmm) Floor Space |
CAL8-1.2x1300 | 1300mm
|
0.4-1.2mm (18-30ga)
|
0-18m/min (0-59FPM) |
±0.5mm |
±0.5mm | 14400*4200*1400 |
CAL8-1.2x1600 | 1600mm
| 14400*4500*1400 |
Features:
l Modular design allows adding a section at a time
l Two sets of twin-motor driven dual-decoilings, selectable coils stand by, maximum capacity of 5-ton per station (optional: up to 10-ton per station)
l Pneumatic controlled straightener and beader
l Punch center holes for cross-tie duct bracing

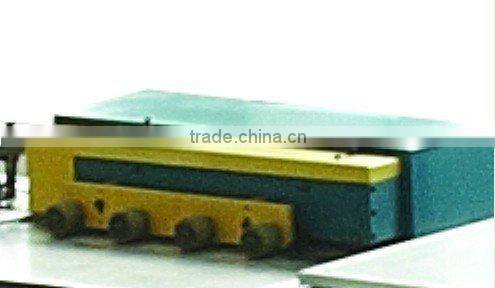

l Duplex drive cleat forming rollers are available
l Patented Automotion pittsburgh lock former, forms pittsburgh lock and right angle, roll forming and shearing simultaneously, shorten working time, a perfect match to duct auto line
l Duplex TDF flange former, forms TDF flange by double sides
l Optimizes floor space by inline position of machines, guarantees high efficiency
l Accurate PLC control unit, preset available profiles and folding style, notching size, punching size, cutting dimension on touchscreen
Other Specific Features of Comifo Coil Line:
1. Formula Programmed, which insure setting and producing different sizes, different quantities in one time.
2. Coil Draw Back, draw back coil is not needed; Comifo coil line can draw back the coil automatically for further prodution, which saves time and no waste material.

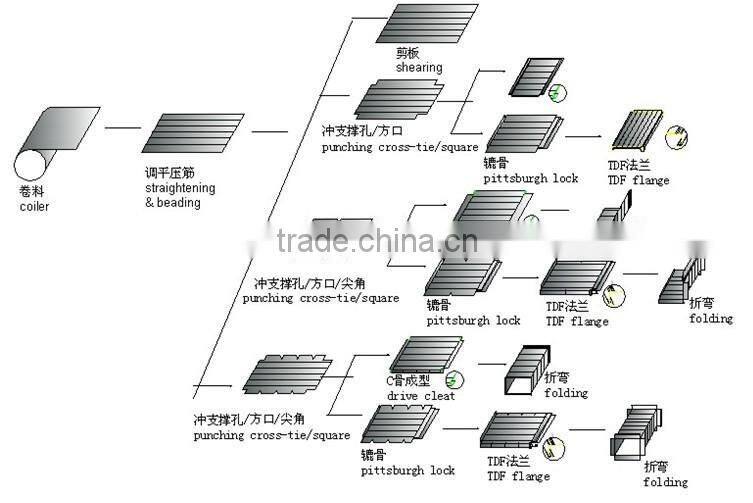

Stations: coil-straightening-beading-punching cross-tie holes-punching square-notching-duplex drive cleat forming-folding -shearing- automotion pittsburgh lock forming-coil conveyer (optional) -duplex TDF flange forming -hydraulic folding
l","sans-serif"'>2.2Cutting blank for GDF irregular duct.
Note:
1. Cut to length or cut blank for plasma cutting machine
2.1 Punching and notching for “C” “S” cleat duct. It can cut different types of notches such as ”L”, “U” and square. It can also cut blank for “C” and “S” cleat flange machine.
2.2 Manufacture TDF flange duct automatically.
2.3 Manufacture C cleat duct automatically.
2.4 Cutting blank for angle iron flange or “Z” shape flange machine. Used with a vertical seaming machine to get a full wrap duct.
3. Cutting blank for TTF/LT mate flange. Used with a vertical seaming machine and mate flange machine to get a full wrap duct.
Company Profile

Comifo Duct Manufacture Machine Co., Ltd is one of the leading companies which specializes in machine manufacture, involving in Heating, Ventilation and Air Conditioning (HVAC) fabrication, coil processing, roll forming, etc. Advantages With its advanced technology, Comifo grows to be a company of designing, manufacturing and selling machines to customers all over the world, from whom we obtain reputation and precious improvement advice to meet the world's verifying technology. This is so called INNOVATION, the spirit of the ever-lasting development of a company, impresses the world of machinery. Comifo's Research & Development Department generals technical and innovative machine designers who take training regularly. By doing this, top machine technology can be seen from a piece of Comifo's work, such as the patented Hydraulic Fold-seamer (Seamatic), as well as Comifo patented Automotion Pittsburgh Lock Former. Our products have been exported to Poland, Switzerland, Turkey, Russia, U.S.A., Canada, Mexico, Venezuela, Saudi Arabia, UAE, Syria, Singapore, India, Malaysia and so on. After-sale Service Comifo offers an unrivaled level of after-sales care and attention. Besides 24-month guarantee, operator training is encouraged and accessible. Comifo does everything to make you be assured of our most honored service. For your convenience, we've listed as much detail as possible about each piece of equipment. We believe your feedback is always important to us. From such precious feedback, we know how we have been doing and how we could improve in the future. Please write us your comments, suggestions or questions and we will reply to you soon. If you would like additional information or if you have questions, please contact us.
