Sheet Processing Machine For Metal
- 2 Set / Sets per Month
- qingdao
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | China | |
| Brand Name | HUAFEI | Model Number | HFCL2*1300-16*2000 | |
| Voltage | 380V | Rated Power | standard | |
| Dimension(L*W*H) | according to actual model | Weight | according to actual model | |
| Certification | CE certification |
Product Description
Specifications
shearing coil line for metals1,for HRC/CRC
2,7-30T loading capability
3,0.2-16mm cutting thickness
4,ISO9001,CE
shearing coil line for metals
Features

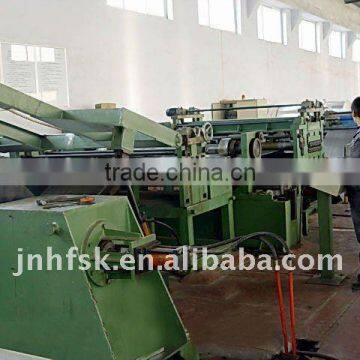

1. The series of cut to length line is for the metal rolling plate after coiling, leveling, fixed length, cutting into the required length flat sheet and stacking.
2. It is suitable for processing cold-rolled and hot-rolled carbon steel, silicon steel, tinplate, stainless steel and various metal materials after coated zinc on surface.
3. Cross cutting line consists of loading car, uncoiler, leveling, feeding mechanism, cutting machines, transport equipment, stacking equipment and other components.
Technical parameters
Model/Parameter | Thickness (mm) | Width (mm) | Cutting precision (mm) | Max. cutting speed m/min | Max. cutting number (spm) | Weight (ton) |
HFCL-2*1300 | 0.2-2 | 500-1300 | ±0.3 | 60 | 50 | 7/15 |
HFCL-2*1600 | 0.2-2 | 500-1600 | ±0.3 | 60 | 50 | 7/15 |
HFCL-2*1830 | 0.2-2 | 900-1800 | ±0.3 | 50 | 40 | 20 |
HFCL-3*1600 | 0.5-3 | 500-1600 | ±0.3 | 50 | 40 | 15 |
HFCL-3*1830 | 0.5-3 | 900-1800 | ±0.3 | 50 | 40 | 20 |
HFCL-3*2000 | 0.5-3 | 900-2000 | ±0.3 | 45 | 40 | 30 |
HFCL-6*1600 | 1-6 | 900-1600 | ±1 | 25 | 20 | 20 |
HFCL-6*2000 | 1-6 | 900-2000 | ±1 | 25 | 20 | 30 |
HFCL-8*2000 | 2-8 | 900-2000 | ±1 | 20 | 20 | 30 |
HFCL-12*2000 | 3-12 | 900-2000 | ±1.5 | 20 | 10 | 30 |
HFCL-16*2000 | 4-16 | 900-2000 | ±2 | 15 | 8 | 30 |
