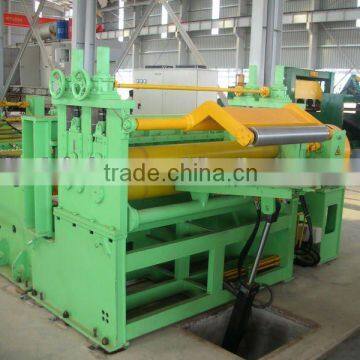

Uncoiling Slitting Line Machine price,cut to slitting line
- 20 Set / Sets per Month
- Qingdao
- T/T
You May Like
-
Drill Pipe Straightening Machine /Slitting Line Machine
-
Steel Coil Automatic Slitting Line Especially For The Wilder Recoiling
-
automatic electroplating coil slitting line
-
High Speed Steel / Metal /Stainless Steel Coil Cut to Length Line and Slitting Line
-
Standard Speed Steel Coil Slitting Machine, high speed and high precision
-
Coil Slitting Line, Uncoiling Machine, Straightening Machine, Cutting Machine, Recoiling Machine
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HUAFEI | Model Number | HFSL-0.5*1300 to HFSL-6*1600(normal | |
| Voltage | standard | Rated Power | standard | |
| Dimension(L*W*H) | standard | Certification | ce/iso9001 |
Product Description
Specifications
1 cutting and stacking2.High straightening precision
3.No scratch to the plate
4.Delightful man-machine interface
steel ciol cut to length machine
The series slitting line makes the metal coiler after coil, slitting, rolling into the required width of the strips.
It is applied in processing cold-rolled and hot-rolled carbon steel, silicon steel, tinplate, stainless steel and various metal materials after coated zinc on surface.
For demanding users the option of automatic edge or EPC in the opening material, which is convenient feeding, improve efficiency, while improving cutting precision, the protection sheet.
EPC can also choose automatic edge control, to ensure uniformity rolling, especially for wide material winding.
Slitting line mainly consists of loading car, uncoiler, traction machine leveling, shearing, slitting machine, scrap side winder, tension agencies, rolling machines, unloading equipment and other components.
Model/Parameter | Thickness(mm) | Width(mm) | No. of slitting | Max.cutting speed(m/min) | coil weight(ton) | Remark |
HFSL-0.5*1300 | 0.15-0.5 | 500-1300 | 1-24 | 50-150 | 7 | Technical data,optional devices according to the customers requirements |
HFSL-2*1300 | 0.3-2 | 500-1300 | 12-30 | 50-180 | 7/15 | |
HFSL-2*1600 | 0.3-2 | 500-1600 | 12-30 | 50-180 | 7/15 | |
HFSL-3*1600 | 0.3-3 | 500-1600 | 8-30 | 50-180 | 15 | |
HFSL-3*1800 | 0.3-3 | 900-1800 | 8-30 | 50-180 | 20 | |
HFSL-4*1600 | 1-4 | 900-1600 | 6-30 | 50-120 | 20 | |
HFSL-6*1600 | 1-6 | 900-1600 | 6-30 | 30-80 | 30 |
