Home > Products > Uncoiling Leveling Line > 80% Discount Standard Speed Steel Coil Slitting Machine
80% Discount Standard Speed Steel Coil Slitting Machine
- 2 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
80% Discount Standard Speed Steel Coil Slitting Machine
-
Standard Speed Steel Coil Slitting Machine, normal Speed and High Precision Coil Cutting Machine
-
Standard Speed Steel Coil Slitting Machine, High Speed and High Precision Coil Cutting Machine
-
All Kinds of Metal Coil Slitting Line, Uncoiling Machine, Straightening Machine, Recoiling Machine, Steel Coil Cutting
-
New slitting line /Automatic Steel Coil Slitting Machine and cutting to length line machine
-
high speed steel strip coil slitter in slitting line
Product Details
| Place of Origin | Shandong, China | Brand Name | HUAFEI | |
| Model Number | HFCL | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

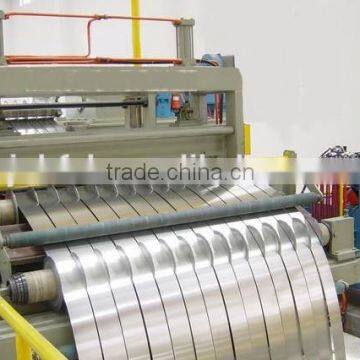

Automatic Slitting Line for Steel / Metal Coil / Cut to Length Line / Cutting Line
Steel sheet slitting line cut metal sheet
Width: 400-2000mm
Thickness: 0.4-6.0mm
Weight: 10-15ton
Speed: 60-120m/min
Slitting Machine
Products Information:
This automatic slitting line adopts good quality PLC control system, HMI, high degree of automation.
The slitting line adopts reliable hydraulic system and hydraulic elements.
Electronics adopt famous world brands, quite reliable.
The slitting machine also adopts good mechanical design with high solidity and strength.
Technical parameters:
Machinable coil material: cold rolled , hot rolled
Deadweight coiler ( feeder ): 12T
Material thickness : 0.5mm-5mm
Material width : 400mm-1300mm
Material diameter: 508 mm
Material outer diameter: max 1300 mm
Finished width: according to user needs
Cut the number of : according to user needs
Cutting speed : 10m-40m / min
Width tolerance : + / - 0.05MM
Input power : AC380V, 50HZ, 3PH
Control Power : AC 220V, 50 HZ
Solenoid valve : AC 220V, 50 HZ
Set Position : From left to right
Total power 65KW-110KW
Model/Parameter | Thickness(mm) | Width(mm) | No. of slitting | Max.cutting speed(m/min) | coil weight(ton) | Remark |
HFSL-0.5*1300 | 0.15-0.5 | 500-1300 | 1-24 | 50-150 | 7 | Technical data,optional devices according to the customers requirements |
HFSL-2*1300 | 0.3-2 | 500-1300 | 12-30 | 50-180 | 7/15 | |
HFSL-2*1600 | 0.3-2 | 500-1600 | 12-30 | 50-180 | 7/15 | |
HFSL-3*1600 | 0.3-3 | 500-1600 | 8-30 | 50-180 | 15 | |
HFSL-3*1800 | 0.3-3 | 900-1800 | 8-30 | 50-180 | 20 | |
HFSL-4*1600 | 1-4 | 900-1600 | 6-30 | 50-120 | 20 | |
HFSL-6*1600 | 1-6 | 900-1600 | 6-30 | 30-80 | 30 |
Devices consisting:
1 loader
2 Uncoilers
3 leveler
4 Disc Shear ( including lead-bit devices )
5 Scrap winder
6 tension device
7 winder
8 Unloading car
9 hydraulic system
10 Electrical Equipment
11 Lubrication Systems
l Professional engineering and technical personnel. We will provide you with reasonable and valuable Suggestions and solutions according to your requirements, the engineering feasibility and economic benefit etc .
l Provide knowledge of equipment operation and maintenance,Allows you to accurately grasp the characteristics of the machine
l one year warranty, life-long maintenance services through email or telphone .Please feel free to use.
l Supply all kinds of accessories and replacement.
Jinan Haufei CNC Machine Co., Ltd. is located in Jinan, shandong province with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China.
With constant efforts of all staffs, our products have been sold well in domestic and exported to many countries inthe world, including Australia,Indonesia,India,Burma,Iran,Spain,Brasil,Peru,Russia,Azerbaijan,KZ,UZ,Sri Lanka
We can warranty that:
when quality remains the same,our price is lower
when price remains the same,our quality is higher
