CNC plasma cutter, cnc sheet metal cutting machine, cnc plasma cutting machine

 Feature                                               cnc plasma cutting table

(1) Install easily

(2) Two cutting ways: flame or plasma.

(3) It is a high-efficiency, high-precision and high reliability cnc cutting equipment

(4) Double-side driving servo system, guarantees an excellent running performance.

(5) Optional dust proof work table or smoke removing device for a clean working environment.

(6) Optional plasma power for different materials cutting.

 Parameters                                       cnc plasma cutting table

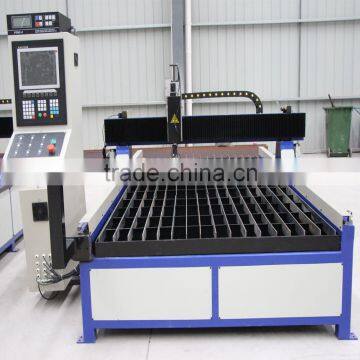

 Pictures                                              cnc plasma cutting table

 Mechanical Accuracy                      cnc plasma cutting table

1. Installation accuracy of guide rail:

1) Straightness accuracy of main rail           ±0.2mm/10m

2) levelness between two rails           ±0.5mm/10m

3) Longitudinal levelness of main rail ±0.2mm/m; ±2mm/ overall length

4) Parallelism between two rails        <±2mm/ rail space

2. Machine precision:

a. Longitudinal effective stroke    >nominal size 20mm

b. Transverse effective stroke       > nominal size 10mm

c. Linear positioning accuracy   ±0.1mm/10m

(1000×1000mm Comprehensive graphics detection)   GB deviation≤±0.3mm

d. Linear repeat accuracy                 ±0.4mm/10m

e. Torch stroke                              ≤170mm

f. Cutting speed                 ±5% of setting speed

g. Automatic lifting precision                   ±0.5mm

3. Comprehensive machine precision:

a. Length deviation(four sides)              0.3mm

b. Diagonal deviation                   0.3mm

c. Back to the origin of the deviation                 0.2mm

d. Diagonal straightness accuracy                  0.3mm

e. Intersection deviation                       0.3mm

f. Linear deviations                           0.2mm

g. Entire machine positioner precision                0.1mm

 Cutting  Samples                              cnc plasma cutting table

 Video Link                                         cnc plasma cutting table

/video.php?v=1524447181129083&set=vb.100006914478186&type=3&theater

/AKZ250/videos/vb.100006914478186/1686381358268997/?type=2&theater&notif_t=video_processed

 Plywood case or plastic film cover

 ISO9001:2008 & CE certification

 After-sale Service

♥ Warranty one year

♥ Engineers available to serve machine overseas

♥ Strict factory inspection

♥ Complete equipment manual

♥ Online instruction

♥ Provide all components, spare parts and consumptive material

Jinan HuaFei CNC Machine is a professional CNC machine manufacturer, which specializes in designing, producing and trading together. Our products have been exported to

many countries including United States, Canada, Australia, Indonesia, India, Sri Lanka, Burma, Iran, Spain, Brazil, Peru, Russia, Azerbaijan, Kazakhstan, Uzbekistan etc.

Service Purpose:

Our professional sale and after-sale service give you a faithful feel.

Thanks for your inquiry and welcome to visit our company. Any question, please feel free to contact us!
