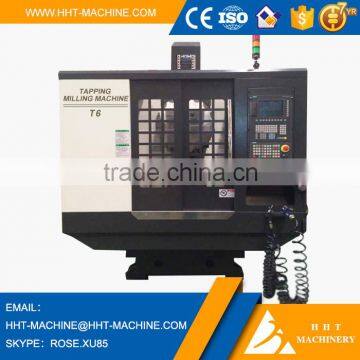

T5 T6 HHT drilling and tapping machine price FANUC ontroller
- 50000 Set / Sets per Month
- SHANGHAI for drilling and tapping machine price FANUC ontroller
- T/T
You May Like
-
T5 T6 HH hot drilling tapping center machine for sale
-
T5 T6 HHT tapping center for drill press auto drilling and tapping machine
-
T5 T6 HHT cnc tapping center drilling tapping machine
-
Single spindle Swiss type automatic lathe for sale
-
cheap TNC-B15F high speed swiss type CNC lathe machine price
-
high speed CNC lathe machine TNC-B15F
Product Details
| Condition | New | CNC or Not | CNC | |
| Drilling Speed | drilling tapping milling turining | Place of Origin | Yunnan, China | |
| Brand Name | HHT | Model Number | T5 T6 | |
| Voltage | change according to customer requirements | Power(W) | 15kva | |
| Dimension(L*W*H) | 2500*2100*2350mm | Weight | 3800kg | |
| Certification | ISO CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
T5 T6 HHT drilling and tapping machine price FANUC ontroller
Brief introduction:
Turret Milling Machines
Our company manufacture CNC Machine like
CNC lathes
Vertical Machining Center
Vertical Milling Machines
Horizontal Boring Machines
Gantry Type Milling Machines/Gantry Machining Center
Gantry Type Boring Milling Machines....
please feel free to contact us, if you need any of these machines.
You won't lose any thing by sending an inquiry. HAVE A TRY! YOU MAY FIND YOURSELF A GREAT SUPPLIER!!
A CNC Tapping Center is a numerically controlled machine tool used for machining parts in every industrial field, featuring high speed, high accuracy, and high productivity. Development of Tapping Centers has enabled milling and fine boring in addition to tapping, achieving high productivity, improved machining capabilities, and greater reliability that shatter conventional common sense.
1. what are the specifications for the machines?
Item Model | Unit | T5 | T6 |
working tale size | mm | 600x400 | 700x400 |
X/Y/Z travel | mm | 500/400/300 | 600/400/300 |
Distance between spindle end and table | mm | 155-455 | 155-455 |
Distance between spindle center and column guide way | mm | 450 | 460 |
Maximum weight of working table | kg | 250 | 300 |
table-T-slot | mm | 3-14-100 | 3-18-125 |
X/Y/Z axis rapid feed | m/min | 48 | 48 |
three axis working rapid speed | mm/min | 10000 | 10000 |
X.Y.Z axis screw mandrel size | mm | 2816/3216 | 3216 |
X-axis rail size | mm | QHW30HA | MSA30LA |
Y-axis rail size | mm | QHW30HA | MSA30LA |
Z-axis rail size | mm | QHW30HA | MSA30LA |
Spindle speed | mm/min | 12000/15000/20000 | 12000/15000/20000 |
arm type tools | pcs | 16/1.4 second | 16/1.4 second |
positioning accuracy | mm | ±0.005/300 | ±0.005/300 |
repeat positioning accuracy | mm | ±0.003 | ±0.003 |
spindle speed | rpm | 12000 | 12000 |
spindle taper | mm | BT30/100 | BT30/100 |
control system | M70VB | MISTUBISHI M70VA/SIEMENS 828D BASIC/FANUC0I-MATE MD | |
torque force of spindle motor | nm/kw | 5.5 | 5.5 |
torque force of X.Y.Z motor | nm | 10-10-20 | 10-10-20 |
pneumatic source requirement | Kg/Cm2 | 6 | 6 |
power consumption | kva | 15 | 15 |
machine size | mm | 1900*2100*2330 | 2500*2100*2350 |
machine weight | kg | 3200 | 3800 |
2. what are the accessories for the machines?
Standard accessories: | |
* Full closed guard | |
* Electrical box heater exchanger | |
* Direct transmission drive | |
* Cutting coolant unit | |
* Cutting air blowing device | |
*Spindle air blast | |
* Rigid tapping | |
* Program storage | |
*Spindle oil cooler | |
*Horizontal bolts and pads | |
* 3 axis Pretensioned Ball Screws | |
*Axis extend guard | |
*Warning light of three color | |
*Explosion-proof work light | |
* Plug type hand wheel | |
* Operation maintenance Manual | |
* Automatic lubrication system | |
*Tool box | |
*DNC computer transmission line | |
* arm type tool magazine | |
Special accessories: |
|
*Spindle central water discharge |
|
*Spiral chips conveyor |
|
*Chain type chips conveyor |
|
Wooden box, or as per customers' requirements.
Before shipment, machines would be painted with rust-proof oil and packed with water-proof material very carefully.
Wooden cases are made of fumigated material and special ordered according to the sizes of different machines. Suitable for transportation and land.
a. Engineers available to customers’ place
b. Free operator training
c. Free maintenance within 1 year
d. Long warranty and technology support
Becase of content limit, we can only post some pictures here. Please feel free to contact us for more photos and videos for the machines.
It may take some time for showing the following pictures. Please be patient and enjoy the photos!
Let’s take a look at more detailed parts of the machines
Factory view:
Machining Capability:
The casting will be given heat-treatment first, then it will be grinded on a grinding machine. After that the hard guideway will be precision hand scraped to provide maximum assembly precision, structural rigidity and load distribution.
The grinding machines we have been using is DANOBAT grinding machine and FAM grinding machine made in Spain and Italy.
The photos the exhibitions we took part in
With years of development, we have entered into international market and gain good reputation for our machines.
In order to expand our business and bring benefits to our customers as well, our company now is looking for agents worldwide. We have got the agent in Venezuela.
Our company will offer much support for our agents, like discounts for purchasing machines, financial support for taking part in exhibitions, technical support and so on.
And if you have any requirements, please let us know. We will try our best to meet your requirements.
We are looking forward to establish long-term business relationship with you!
Q1: how to buy the machines from your company?
A1: 1) please send your inquiry from the bottom of the page, or please call us directly. 2) We will discuss more details after getting in touch with each other.
3) Then we send you INVOICE with our bank account and you pay the money;
4) We start production as soon as we get the money;
5) We deliver the machine by sea to the port in your country.
Q2: what is your payment term?
A2: we prefer 30% TT as deposit and 70% TT before sending machine.
Q3: what is your warranty for the machine?
A3: The warranty for the machine is 12 month. Warranty claim for parts that are replaced free of charge in the warranty term owning to failure or damage will be honored. However, artificial damage or damage due to force majeure is not covered under warranty.
Q4: Can we visit your factory?
A4: of course! You are the most welcome to visit our factory and check the machines in person. Please let us know your plan before you come, and we will pick you up in the airport or at station.
Q5: Do we need to install the machines?
A5: For small machines like VMC and CNC Lathe, there is no need to install. We will send the machines as whole part. For large machines, like Gantry Milling machines and Boring Milling machines, you need to install the machines, or we will send our engineers to your place for installation, if it is necessary.
Q6: How do we get the training for the machines?
A6: You can send your people to our factory and we will offer training free of charge; or we can send our engineer to our place.
Q7: What is the payment term?
A7: we prefer 30% T/T as down payment, and 70% T/T before shipment.
