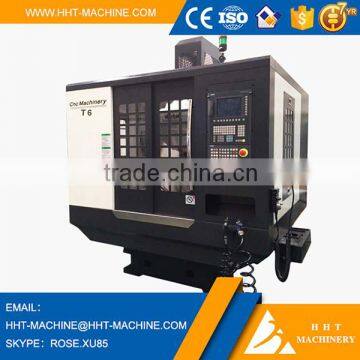

T5 T6 linear guideway cnc tapping machine
- 1000 Set / Sets per Month
- Shanghai for T5 T6 linear guideway cnc tapping machine
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
T5 T6 china manufacturer automatic tapping machine drilling function
-
T5 T6 high rigidity cnc tapping machine automatic
-
T5 T6 high precision drilling and tapping machine electric
-
T5 T6 cheap cnc tapping machine horizontal bolts and pads
-
T5 T6 high quality cheap cnc tapping machine
-
T5 T6 china cnc tapping machine 16T arm tools
Product Details
| Condition | New | Type | Vertical | |
| Place of Origin | Yunnan, China | Brand Name | HHT | |
| Model Number | T5/T6 | Voltage | 220V or as your requirements | |
| Power(W) | 5.5kw | Dimension(L*W*H) | 1900*2100*2330 | |
| Weight | 3200kg | Certification | ISO CE | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
T5 T6 linear guideway cnc tapping machine
Main Introduction:
A CNC Tapping Center is a numerically controlled machine tool used for machining parts in every industrial field, featuring high speed, high accuracy, and high productivity. Development of Tapping Centers has enabled milling and fine boring in addition to tapping, achieving high productivity, improved machining capabilities, and greater reliability that shatter conventional common sense.
1. Parameters:
Item Model | Unit | T5 | T6 |
working tale size | mm | 600x400 | 700x400 |
X/Y/Z travel | mm | 500/400/300 | 600/400/300 |
Distance between spindle end and table | mm | 155-455 | 155-455 |
Distance between spindle center and column guide way | mm | 450 | 460 |
Maximum weight of working table | kg | 250 | 300 |
table-T-slot | mm | 3-14-100 | 3-18-125 |
X/Y/Z axis rapid feed | m/min | 48 | 48 |
three axis working rapid speed | mm/min | 10000 | 10000 |
X.Y.Z axis screw mandrel size | mm | 2816/3216 | 3216 |
X-axis rail size | mm | QHW30HA | MSA30LA |
Y-axis rail size | mm | QHW30HA | MSA30LA |
Z-axis rail size | mm | QHW30HA | MSA30LA |
Spindle speed | mm/min | 12000/15000/20000 | 12000/15000/20000 |
arm type tools | pcs | 16/1.4 second | 16/1.4 second |
positioning accuracy | mm | ±0.005/300 | ±0.005/300 |
repeat positioning accuracy | mm | ±0.003 | ±0.003 |
spindle speed | rpm | 12000 | 12000 |
spindle taper | mm | BT30/100 | BT30/100 |
control system | M70VB | MISTUBISHI M70VA/SIEMENS 828D BASIC/FANUC0I-MATE MD | |
torque force of spindle motor | nm/kw | 5.5 | 5.5 |
torque force of X.Y.Z motor | nm | 10-10-20 | 10-10-20 |
pneumatic source requirement | Kg/Cm2 | 6 | 6 |
power consumption | kva | 15 | 15 |
machine size | mm | 1900*2100*2330 | 2500*2100*2350 |
machine weight | kg | 3200 | 3800 |
2. Accessories:
Standard accessories: | |
* Full closed guard | |
* Electrical box heater exchanger | |
* Direct transmission drive | |
* Cutting coolant unit | |
* Cutting air blowing device | |
*Spindle air blast | |
* Rigid tapping | |
* Program storage | |
*Spindle oil cooler | |
*Horizontal bolts and pads | |
* 3 axis Pretensioned Ball Screws | |
*Axis extend guard | |
*Warning light of three color | |
*Explosion-proof work light | |
* Plug type hand wheel | |
* Operation maintenance Manual | |
* Automatic lubrication system | |
*Tool box | |
*DNC computer transmission line | |
* arm type tool magazine | |
Special accessories: |
|
*Spindle central water discharge |
|
*Spiral chips conveyor |
|
*Chain type chips conveyor |
|
Reference Pictures
Company Introduction&Logo
HuaiAn HaoYang Machine CO.,Ltd is a 4s unity which consists of professional and high-quality companies,schools and research units.Our business covers the whole machine tool industy including mines, ironworks,casting,accessories machines manufacturing,assembly,sales,service and R&D design.
Our main products are: CNC lathe, CNC machine center,CNC gantry milling machine,CNC borning and milling machine,turret milling machine and so on.
a. Engineers available to customers’ place
b. Free operator training
c. Free maintenance within 1 year
d. Long warranty and technology support
The Other Matters
1. Delivery Date:
It will be confirmed when you make the order.
2. Payment Terms:
2.1. 30% Deposit by TT before production and 70% payment by TT before shipment;
2.2.30% deposit by TT before production and 70% L/C at sight before shipment;
2.3.100% L/C at sight.
Any questions or requirements from you are welcomed. Please contact us via phones or Skype:Julie 2120.
We Are At An Exhibition
Wooden box, or as per customers' requirements.
Before shipment, machines would be painted with rust-proof oil and packed with water-proof material very carefully.
Wooden cases are made of fumigated material and special ordered according to the sizes of different machines. Suitable for transportation and land.
Our package
Our Factory Photo
Processing Workpiece
Q1: how to buy the machines from your company?
A1: 1) please send your inquiry from the bottom of the page, or please call us directly. 2) We will discuss more details after getting in touch with each other.
3) Then we send you INVOICE with our bank account and you pay the money;
4) We start production as soon as we get the money;
5) We deliver the machine by sea to the port in your country.
Q2: what is your payment term?
A2: we prefer 30% TT as deposit and 70% TT before sending machine.
Q3: what is your warranty for the machine?
A3: The warranty for the machine is 12 month. Warranty claim for parts that are replaced free of charge in the warranty term owning to failure or damage will be honored. However, artificial damage or damage due to force majeure is not covered under warranty.
Q4: Can we visit your factory?
A4: of course! You are the most welcome to visit our factory and check the machines in person. Please let us know your plan before you come, and we will pick you up in the airport or at station.
Q5: Do we need to install the machines?
A5: For small machines like VMC and CNC Lathe, there is no need to install. We will send the machines as whole part. For large machines, like Gantry Milling machines and Boring Milling machines, you need to install the machines, or we will send our engineers to your place for installation, if it is necessary.
Q6: How do we get the training for the machines?
A6: You can send your people to our factory and we will offer training free of charge; or we can send our engineer to our place.
Looking for agents worldwide
With years of development, we have entered into international market and gain good reputation for our machines.
In order to expand our business and bring benefits to our customers as well, our company now is looking for agents worldwide. We have got the agent in Venezuela.
Our company will offer much support for our agents, like discounts for purchasing machines, financial support for taking part in exhibitions, technical support and so on.
And if you have any requirements, please let us know. We will try our best to meet your requirements.
We are looking forward to establish long-term business relationship with you!
