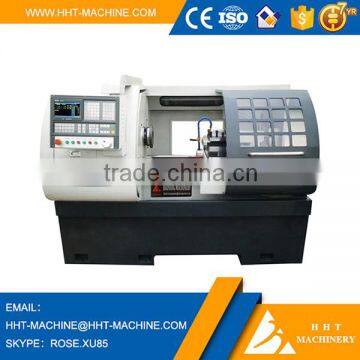

TCK-45L small automatic lathe machine,metal lathe tools
- 2000 Set / Sets per Month
- SHANGHAI SHENZHEN
- T/T L/C D/P D/A
You May Like
-
TCK-45L small metal automatic lathe machine
-
TCK-45L chinese metal lathe,cnc lathe machine,horizontal slant bed type
-
TCK-45L hot sale metal lathe machine,mini cnc lathe machine can cutting wood
-
TCK-42L CHINA new Metal cnc lathe machine 220V for sale
-
TCK-42L horizontal cnc lathe machine,metal parts
-
TCK-42L Low cost small cnc lathe machine for sale,high quality
Product Details
Condition | New | Type | Other, Horizontal, TCK-45L small automatic lathe machine,metal lathe tools | |
CNC or Not | CNC | Automatic Grade | Automatic | |
Max. Swing Diameter | 600mm | Place of Origin | China | |
Brand Name | HHT | Model Number | TCK-45L | |
Voltage | 380v, can be changed as customers' requirements. | Power(W) | 11/15kw | |
Dimension(L*W*H) | 2.3x1.8x1.76m | Weight | 3000/3800KG | |
Certification | ISO, CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Brief Description:
1. Slant degree: 30 degree, 45 degree.
2. Max. dia. swing over bed: 400mm, 600mm
3. Spindle speed: 4500rpm, 5000rpm.
4. Spindle bore: 56mm, 66mm
5. Hydraulic turret, can be optional Living Tools.
Specs | Name | Unit | TCK-45L |
Processing range | Max. swing diameter over bed | mm | 600 |
Max. processing diameter | mm | 450 | |
Max. processing diameter over toolpost | mm | 315 | |
Max. workpiece length | mm | 500 | |
Max. hole bore of bar | mm | 52 | |
Spindle cylinder/chuck | Spindle nose | / | A2-6 |
Spindle bore | mm | 65 | |
Spindle speed | rpm | 4000 | |
Power of spindle motor | kw | 11 | |
Hydraulic 3 jaw chuck | / | 8" | |
Feed of X/Z | X axis motor power | kw | 1.8 |
Z axis motor power | kw | 1.8 | |
X axis travel | mm | 225 | |
Z axis travel | mm | 610 | |
X/Z axis Rapid traverse | mm/min | 24 | |
Positioning accuracy | mm | ±0.003 | |
Repeatability accuracy | mm | ±0.005 | |
Type of guideway | / | Linear guideway 35mm | |
Hydraulic turret | Tool position | pcs | 100/12T |
Square tool holder | mm | 25 | |
Round boring tool holder | mm | 40 | |
Changing time between neighboring tools | sec | 0.25 | |
Tailstock | Dia. of quill | mm | 75 |
Travel of quill | mm | 100 | |
Taper of quill | / | MT-4 | |
CNC Controller | CNC Controller | / | SYNTEC |
Dimension | L×W | m | 2.3x1.8x1.76 |
Weight | kg | 3800 |
| Standard Accessories | Optional accessories |
No. | Name & Spec. | Name& specs |
1 | Machine bed | Automatic safety door |
2 | CNC Controller | Simple parts catcher |
3 | X axis ball screw | Hydraulic bar feeder |
4 | Z axis ball screw | Air blast device |
5 | X/Z axis screw bearing | Auto chips conveyor |
6 | X, Z axis guideway | Part deliver belt |
7 | Hollow type hydraulic chuck |
|
8 | Hollow type hydraulic cylinder |
|
9 | Hydraulic turret |
|
10 | Round boring tool holder |
|
11 | Square tool holder |
|
12 | Integral type spindle |
|
13 | Spindle bearing |
|
14 | Collant syctem |
|
15 | Outside hydraulic system |
|
16 | Auto lubrication system |
|
17 | Master switch, contactor /overload protector |
|
18 | Full-closed guard |
|
19 | . Guiding light |
|
20 | Working light |
|
21 | Foot switch |
|
22 | Operation Manual |
|
23 | Maintenance tools |
|
1. The machines will be packaged by wooden case.
2. Will be shipped by sea.
1. Replace the broken or faulty spare parts free of charge in the warranty period.
2. Always 24hours service for our customers.
3. Engineer overseas service available, after-sale service available in some region.
4. Quick action and reply for the technical questions at any time in the whole life of the machine.
Our exporting company is HUAIAN HAOYANG MACHINE CO., LTD-HHT MACHINE, which is part of a machine tool industry chain; called a 4S alliance.This alliance consists of enterprises focusing on specialized, characteristic and refined machine tools, colleges and research institutes. Those Enterprises include mines, ironworks, casting, machining, functional components supply, equipment and complete machine assembly and sales, after-sales service, research and development and design.
HHT MACHINEis the overseas sales link of the alliance,HHT MACHINE mainly includes CNC lathes,CNC machining centers, CNC planer milling machines, CNC planer boring machines and turret milling machines.
We are sincere to expect do business with you in near future!
Exhibitions in Moscow Russia, Bogota Colombia:
Q1: how to buy the machines from your company?
A1: 1) please send your inquiry from the bottom of the page, or please call us directly. 2) We will discuss more details after getting in touch with each other.
3) Then we send you INVOICE with our bank account and you pay the money;
4) We start production as soon as we get the money;
5) We deliver the machine by sea to the port in your country.
Q2: what is your payment term?
A2: we prefer 30% TT as deposit and 70% TT before sending machine.
Q3: what is your warranty for the machine?
A3: The warranty for the machine is 12 month. Warranty claim for parts that are replaced free of charge in the warranty term owning to failure or damage will be honored. However, artificial damage or damage due to force majeure is not covered under warranty.
Q4: Can we visit your factory?
A4: of course! You are the most welcome to visit our factory and check the machines in person. Please let us know your plan before you come, and we will pick you up in the airport or at station.
Q5: Do we need to install the machines?
A5: For small machines like VMC and CNC Lathe, there is no need to install. We will send the machines as whole part. For large machines, like Gantry Milling machines and Boring Milling machines, you need to install the machines, or we will send our engineers to your place for installation, if it is necessary.
